Huawei S5700-52P-LI-AC – Product Information

Name: Huawei S5700-52P-LI-AC Switch - SunSpike
SKU: S5700-52P-LI-AC

Product Overview

The Huawei S5700-52P-LI-AC is a next-generation, energy-saving Gigabit Ethernet switch designed for enterprise campus networks. It belongs to the S5700-LI series and is positioned as a fully managed Layer 2 switch primarily targeting medium-sized enterprise network scenarios.

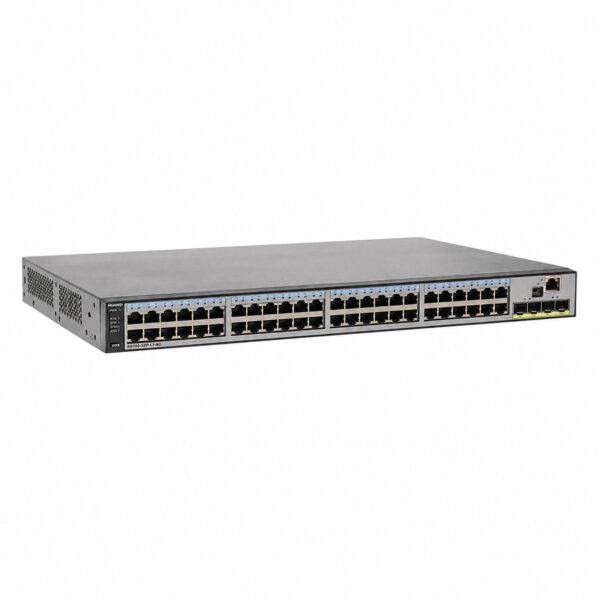

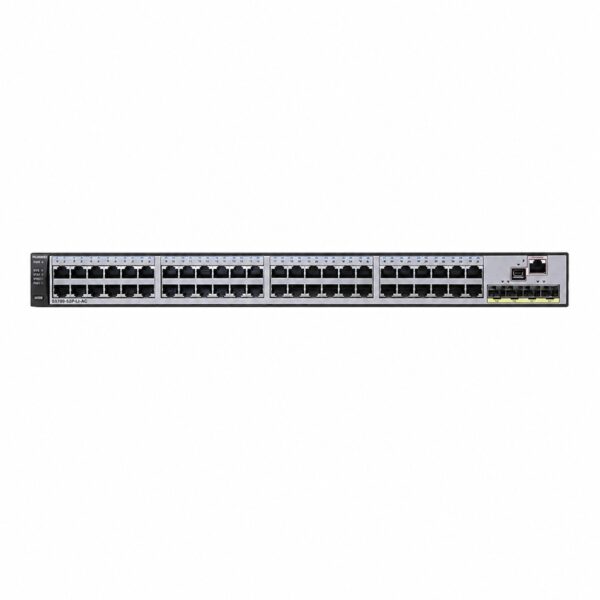

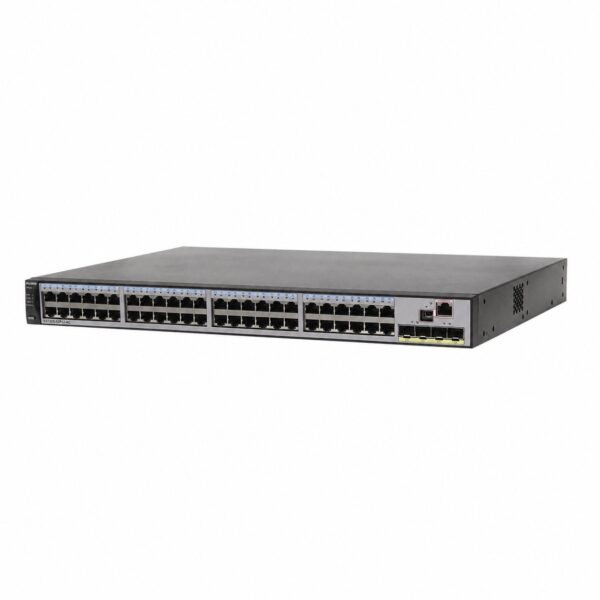

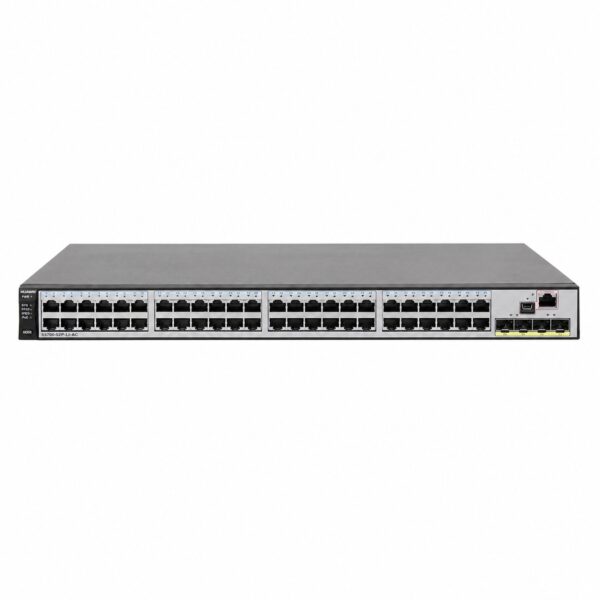

The switch features 48 x 10/100/1000BASE-T copper ports and 4 x 1000BASE-X SFP fiber uplink ports, delivering high-density Gigabit access with Gigabit uplink capability. Built on Huawei’s Versatile Routing Platform (VRP) and next-generation high-performance hardware, the S5700-LI series supports Advanced Hibernation Management (AHM) energy-saving technology, intelligent stacking (iStack), flexible Ethernet networking, and diversified security control.

The switch supports iStack intelligent stacking technology, allowing multiple switches to be virtualized into a single logical device with up to 10 Gbps stacking bandwidth. It provides a comprehensive set of features including VLAN support, Quality of Service (QoS), port mirroring, and rich security mechanisms such as DoS attack protection, DHCP Snooping, and IP/MAC Spoofing prevention.

With its compact 1U form factor (43.6 mm × 442.0 mm × 310.0 mm), built-in AC power supply, and support for RPS1800 redundant power backup, the S5700-52P-LI-AC is ideal for deployment as an access or aggregation switch in campus networks, or for providing Gigabit access in Internet Data Centers (IDCs).

Technical Specifications

Category	Item	Specification
General	Model	S5700-52P-LI-AC
	Part Number	02353174
	Switch Type	Managed
	Switch Layer	L2
	Product Color	Black
	Stackable	Yes
Ports & Interfaces	10/100/1000BASE-T Ports	48
	1000BASE-X SFP Ports	4
	Mini USB Port	1
	Console Port	1 (RJ45)
	Total Ports	52
Performance	Switching Capacity	256 Gbps
	Packet Forwarding Rate	78 Mpps
	MAC Address Table	16,000 entries
	Number of VLANs	4,000
Memory & Storage	RAM	256 MB
	Flash Memory	V200R001: 64 MB; V200R002 and later: 200 MB
Power Supply	Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
	Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
	Maximum Power Consumption (100% throughput)	48.4 W
	Typical Power Consumption (30% traffic load)	32.5 W
	PoE Support	Not supported
	RPS Support	Supported (RPS1800)
Physical	Dimensions (H × W × D)	43.6 mm × 442.0 mm × 310.0 mm (1.72 in. × 17.4 in. × 12.2 in.)
	Weight (with packaging)	3.5 kg (7.72 lb)
Environmental	Operating Temperature	0°C to 50°C (32°F to 122°F) at 0–1800 m altitude
	Storage Temperature	–40°C to +70°C (–40°F to +158°F)
	Operating Relative Humidity	5% to 95%, noncondensing
	Operating Altitude	0–5000 m
	Noise Level (normal temp., sound power)	< 43.8 dB(A)
Reliability	MTBF	39.26 years
	MTTR	2 hours
	Availability	> 0.99999
Surge Protection	Service Port Surge Protection	Common mode: ±6 kV
	Power Supply Surge Protection	±6 kV differential mode, ±6 kV common mode
Networking Standards	Standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az
Features	Port Mirroring	Supported
	Rate Limiting	Supported
	VLAN Support	Supported
	Multicast Support	Supported (IGMP Snooping)
	QoS Support	Supported
	Security Features	ACL, MAC address filtering, static port security, DoS attack protection, DHCP Snooping
Management	Management Interfaces	SNMPv1/v2/v3, RMON, eSight network management system, WEB interface, Telnet, HTTPS
Cooling	Cooling Method	Built-in fan, forced air cooling, left-to-right airflow
