Huawei S5700-52C-PWR-SI-AC Switch – Product Documentation

Name: Huawei S5700-52C-PWR-SI-AC Switch - SunSpike
SKU: S5700-52C-PWR-SI-AC

Product Overview

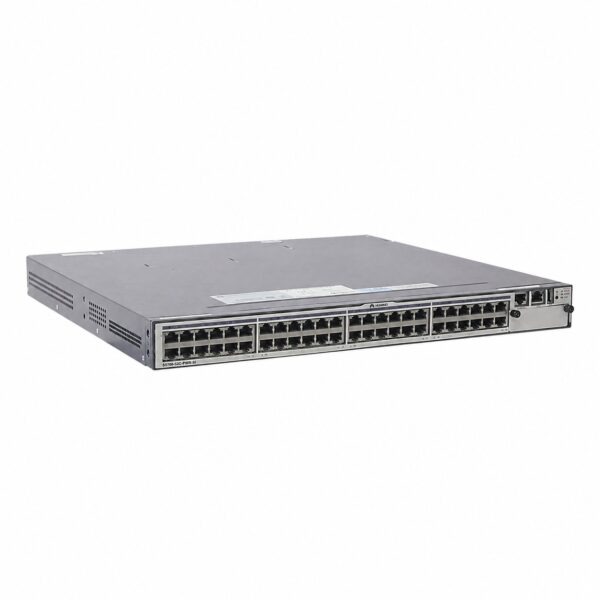

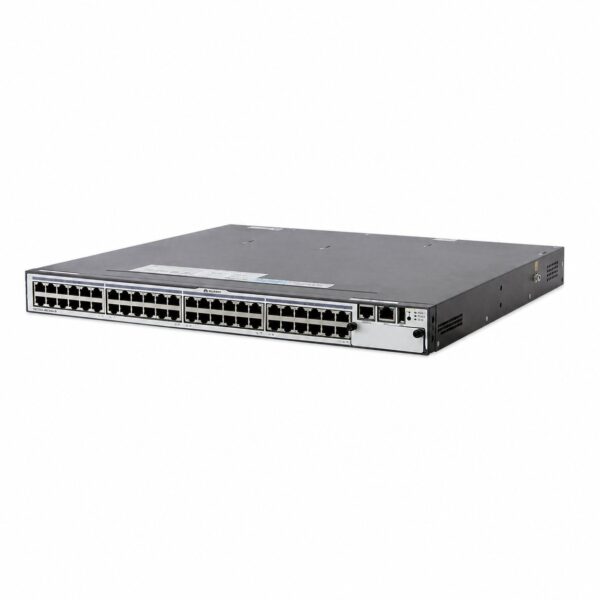

The Huawei S5700-52C-PWR-SI-AC is a next-generation gigabit Layer 3 Ethernet switch built on high-performance hardware and the Huawei Versatile Routing Platform (VRP). It is designed for enterprise campus networks, serving as an aggregation switch or IDC access device for medium-sized organizations.

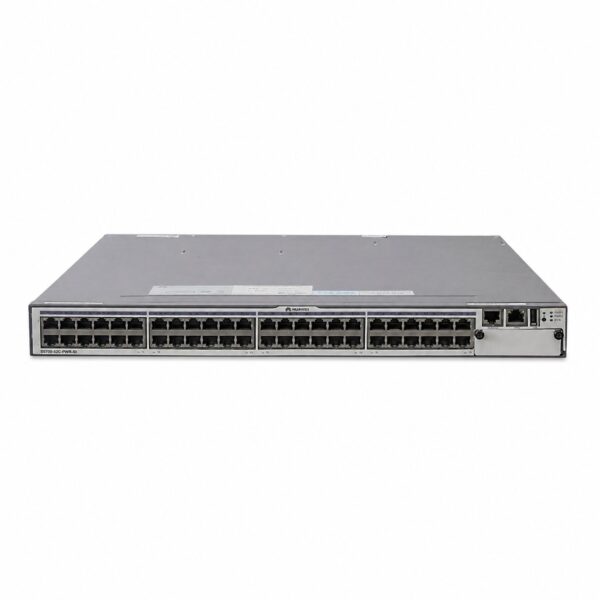

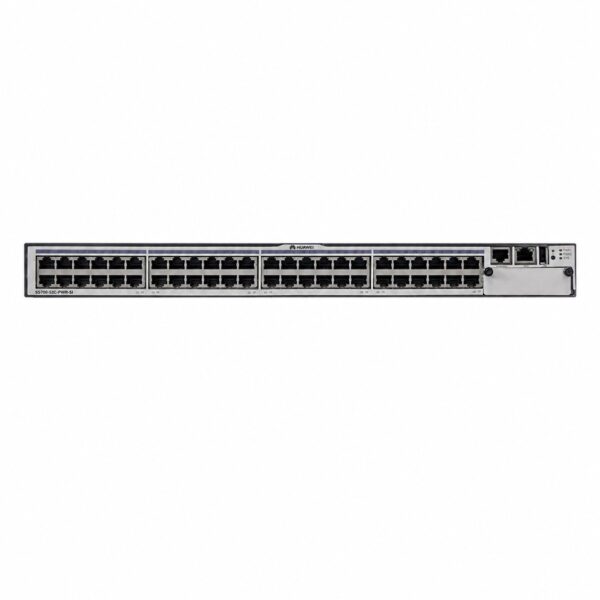

The switch features 48 x 10/100/1000BASE-T PoE+ ports, delivering both high-speed data transmission and power to connected devices such as IP phones, wireless access points, and security cameras over a single Ethernet cable. It supports up to 4 x 1000BASE-X SFP uplink ports or 2/4 x 10GE SFP+ uplink subcards, offering flexible uplink connectivity.

With a switching capacity of 256 Gbps and a forwarding rate of 132 Mpps, the S5700-52C-PWR-SI-AC provides wire-speed forwarding performance. It integrates advanced technologies in reliability, security, and energy efficiency, helping enterprise customers build next-generation IT networks. The switch supports intelligent stacking (iStack), comprehensive IPv4/IPv6 features, rich QoS policies, and multi-layer security mechanisms.

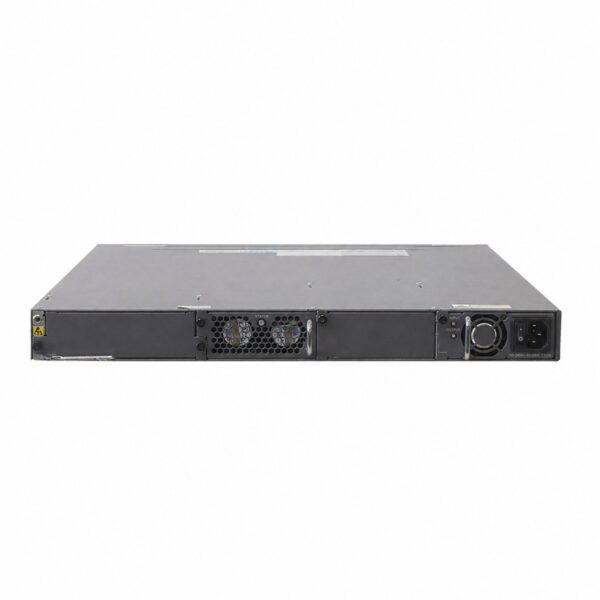

The device comes with a 500W AC power supply pre-installed and supports dual hot-swappable power modules for redundancy.

Product Specifications

Category	Specification
Model	S5700-52C-PWR-SI-AC
Product Type	Gigabit Ethernet Switch
Application Layer	Layer 3
Switching Capacity	256 Gbps
Forwarding Performance	132 Mpps
MAC Address Table Size	16K
Switching Mode	Store-and-Forward

Ports & Slots
Fixed Ports	48 x 10/100/1000BASE-T Ethernet ports (PoE+)
Uplink Options	4 x 1000BASE-X SFP subcard / 2 x 10GE SFP+ subcard / 4 x 10GE SFP+ subcard
Expansion Slots	2 extended slots: one for uplink subcard, one for stack card
Console Port	1 x console port
ETH Management Port	1 x management port
USB Port	1 x USB port

Power Specifications
Power Supply	1 x 500W AC power module (included); supports dual hot-swappable AC/DC power supplies
Rated Voltage Range (AC)	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range (AC)	90 V AC to 264 V AC, 47 Hz to 63 Hz
Rated Voltage Range (DC)	-48 V DC to -60 V DC
Maximum Voltage Range (DC)	-36 V DC to -72 V DC
Maximum Power Consumption (100% throughput, 100% PoE load)	917 W (system: 177 W, PoE: 740 W)
RPS Support	Not supported
Power Supply Surge Protection	2 kV differential mode, 4 kV common mode

PoE
PoE Support	PoE+

Stacking
Stacking	Supported via dedicated stack card
Stack Ports	2 stack ports available on each stack card

VLAN
VLAN Quantity	4K VLANs
VLAN Features	Guest VLAN, Voice VLAN, GVRP, MUX VLAN, VLAN assignment based on MAC/protocol/IP subnet/policy/port, 1:1 and N:1 VLAN Mapping

IP Routing
Routing Protocols	Static routing, RIPv1, RIPv2, RIPng, ECMP

IPv6 Features
IPv6 Support	Neighbor Discovery (ND), Path MTU (PMTU), IPv6 ping/tracert/telnet, ACLs based on IPv6 source/destination address/L4 ports/protocol, MLD v1/v2 snooping, 6to4/ISATAP/manual tunnels

Multicast
Multicast Protocols	IGMP v1/v2/v3 snooping, IGMP fast leave, multicast forwarding in VLAN, multicast replication between VLANs, multicast load balancing, controllable multicast, port-based multicast traffic statistics

QoS / ACL
Traffic Management	Rate limiting on ingress/egress, packet redirection, port-based traffic policing, two-rate three-color CAR
Queue Scheduling	8 queues per port, WRR, DRR, SP, WRR+SP, DRR+SP
Priority Re-marking	802.1p and DSCP priority re-marking
Packet Filtering	L2–L4 packet filtering based on source/destination MAC, source/destination IP, TCP/UDP ports, protocol, VLAN
Traffic Shaping	Queue-based rate limiting and port shaping

Reliability
Ring Protocols	RRPP ring topology and multi-instance, Smart Link tree topology and multi-instance (millisecond-level protection switchover), SEP, ERPS (G.8032)
Spanning Tree	STP, RSTP, MSTP with BPDU protection, root protection, loop protection
Link Aggregation	E-Trunk

Security
Access Control	User privilege management and password protection
Attack Defense	DoS/ARP/ICMP attack defense
Binding	IP-MAC-port-VLAN binding
Port Security	Port isolation, port security, sticky MAC
MAC Management	Blackhole MAC addresses, MAC address learning limit
Authentication	IEEE 802.1x authentication, single-port user limit, AAA, RADIUS, HWTACACS, NAC
Management Security	SSH V2.0, HTTPS
Other	CPU protection, blacklist/whitelist, dot1X/MAC/hybrid authentication per port, Portal authentication per VLANIF interface

Network Management
Management Protocols	SNMP v1/v2/v3, RMON
Management Interfaces	Web-based management, eSight network management system
Maintenance	Virtual Cable Test (VCT), system logs, hierarchical alarms
Stacking	Intelligent Stacking (iStack)

Physical Specifications
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm (1.72″ x 17.4″ x 16.5″)
Rack Height	1U
Weight	6.2 kg
Flash Memory	32 MB
RAM	256 MB

Environmental Specifications
Operating Temperature	0°C to 50°C (32°F to 122°F)
Relative Humidity	5% to 95% (non-condensing)
Operating Altitude	0 m to 5,000 m (0 ft to 16,404 ft)
Noise (Normal Temperature, 27°C)	< 45 dB(A)
