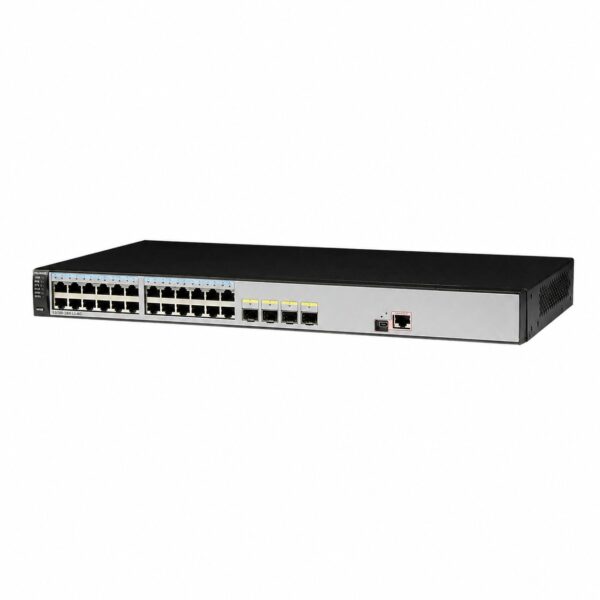

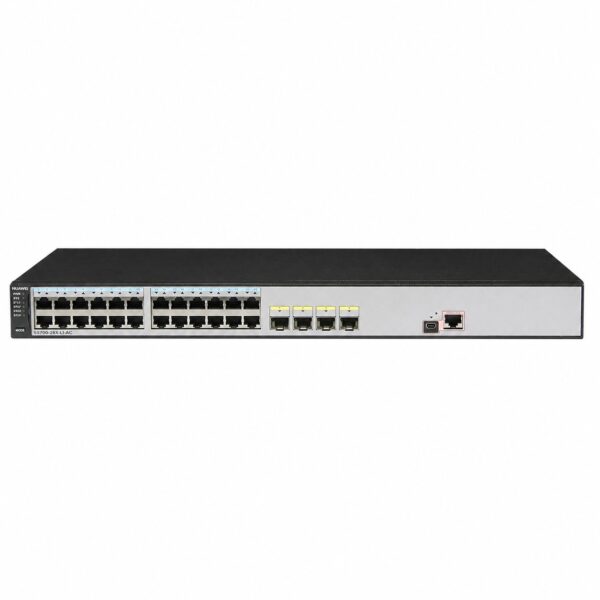

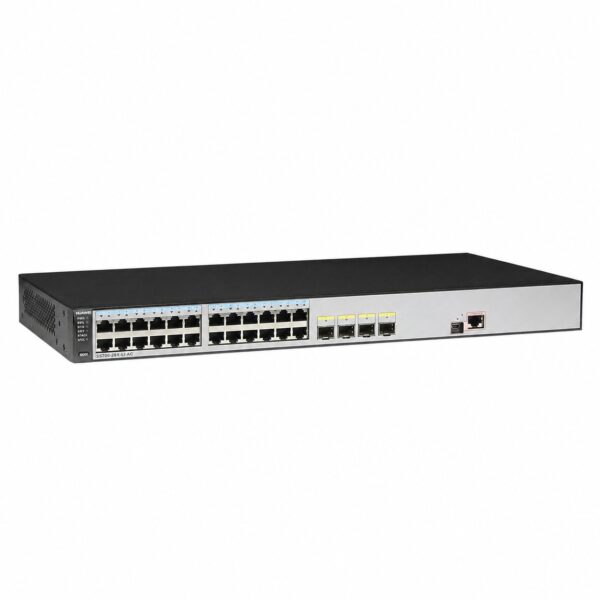

Huawei S5700-28X-LI-AC Switch – Product Documentation

Name: Huawei S5700-28X-LI-AC Switch - SunSpike
SKU: S5700-28X-LI-AC

Product Overview

The Huawei S5700-28X-LI-AC is an enterprise‑class Layer 2 gigabit Ethernet switch designed for small to medium‑sized enterprise networks. It belongs to the S5700‑LI series and is built on Huawei’s unified VRP (Versatile Routing Platform) software platform, featuring high‑performance hardware chips.

This switch is engineered to meet the demands of high‑bandwidth access and multi‑service aggregation. It delivers a non‑blocking switching capacity of 256 Gbit/s and a forwarding performance of 96 Mpps. The device is equipped with 28 fixed ports: 24 x 10/100/1000BASE‑T electrical ports for gigabit connectivity and 4 x 10GE SFP+ uplink ports for high‑speed fibre uplinks.

The S5700-28X-LI-AC supports a comprehensive set of Layer 2 features including VLAN (up to 4K VLANs), QoS with multiple queue scheduling algorithms, multicast management with IGMP snooping, and robust security mechanisms such as 802.1X authentication, ACLs, and MAC address binding. It also offers network management capabilities via SNMP, web‑based management, and Huawei’s eSight management system.

With a compact 1U rack‑mountable form factor (442 × 220 × 43.6 mm) and AC power input (100‑240V, 50/60Hz), the switch is suitable for deployment in enterprise wiring closets, campus networks, and data centre access layers. It incorporates energy‑efficient features including IEEE 802.3az Energy‑Efficient Ethernet (EEE) and supports a wide operating temperature range of 0°C to 50°C.

Key Features

High‑density Gigabit Ports: 24 x 10/100/1000BASE‑T ports providing flexible user access
10GE Uplinks: 4 x 10GE SFP+ ports for high‑speed uplink connectivity with auto‑sensing to 1000 Mbit/s
Layer 2 Switching: Full Layer 2 functionality with support for up to 4K VLANs
Comprehensive QoS: Supports multiple queue scheduling algorithms (WRR, DRR, SP, WRR+SP, DRR+SP) and traffic policing
Multicast Management: IGMP v1/v2/v3 snooping, fast leave, and multicast VLAN replication
Robust Security: 802.1X authentication, AAA/RADIUS/HWTACACS, SSH V2.0, port isolation, and MAC address binding
Network Management: SNMP v1/v2/v3, web management, eSight support, automatic configuration, and HTTPS
Energy Efficiency: IEEE 802.3az Energy‑Efficient Ethernet (EEE) and Dying Gasp power failure alert
Compact 1U Form Factor: Rack‑mountable chassis with 442 × 220 × 43.6 mm dimensions

Typical Applications

Enterprise campus network access layer
Small to medium‑sized business network core/aggregation
Data centre server access
High‑density gigabit user access with 10GE uplink aggregation

Technical Specifications

Category	Parameter	Specification
General	Product Type	Enterprise‑class switch
	Application Layer	Layer 2
	Switching Capacity	256 Gbit/s
	Forwarding Performance	96 Mpps
	MAC Address Table	16K
	Switching Mode	Store‑and‑forward
Ports	Port Structure	Fixed / Non‑modular
	Total Ports	28
	10/100/1000BASE‑T Ports	24 x RJ45 electrical ports
	10GE SFP+ Ports	4 x SFP+ fibre ports (supports auto‑sensing to 1000 Mbit/s)
	Console Port	1 x console port
	Mini USB Port	1 x Mini USB port
	RPS Socket	1 x RPS (Redundant Power Supply) socket
VLAN	VLAN Quantity	Supports up to 4K VLANs
	VLAN Types	Guest VLAN, Voice VLAN, MAC‑based VLAN, protocol‑based VLAN, IP‑subnet‑based VLAN, policy‑based VLAN, port‑based VLAN, SuperVLAN
QoS	Queue Scheduling	WRR, DRR, SP, WRR+SP, DRR+SP
	Queue per Port	8
	Traffic Policing	Port‑based rate limiting, dual‑rate three‑color CAR
	Priority Marking	802.1p and DSCP re‑marking
	Shaping	Queue‑based rate limiting and port shaping
Multicast	IGMP Snooping	IGMP v1/v2/v3 snooping with fast leave
	Multicast VLAN	Multicast VLAN replication
	Load Balancing	Multicast load balancing across bundled ports
	Controllable Multicast	Supported
Management	Network Management	SNMP v1/v2/v3, eSight, web management, automatic configuration, HTTPS
	Protocols	GVRP, MUX VLAN
	Diagnostics	Virtual Cable Test (VCT), system logs, hierarchical alarms
	Energy Efficiency	IEEE 802.3az Energy‑Efficient Ethernet (EEE)
	Additional Features	Dying Gasp (power failure alert), NetStream
Security	Authentication	IEEE 802.1X, AAA, RADIUS, HWTACACS, NAC
	Access Control	User hierarchy management and password protection
	Attack Protection	DOS attack prevention, ARP attack prevention, ICMP attack prevention
	Port Security	Port isolation, port security, Sticky MAC
	MAC Security	Blackhole MAC addresses, MAC address learning limit
	Binding	IP‑MAC‑port‑VLAN binding
	Secure Management	SSH V2.0, HTTPS, CPU protection, blacklist/whitelist
Power	Power Supply	AC 100‑240V, 50/60Hz
	Power Consumption	42W (maximum)
Physical	Dimensions (W × D × H)	442 × 220 × 43.6 mm (1U)
Environment	Operating Temperature	0°C to 50°C
	Operating Humidity	5% to 95% (non‑condensing)
