Huawei S5700-10P-PWR-LI-AC – Product Information

Name: Huawei S5700-10P-PWR-LI-AC Switch - SunSpike
SKU: S5700-10P-PWR-LI-AC

Product Overview

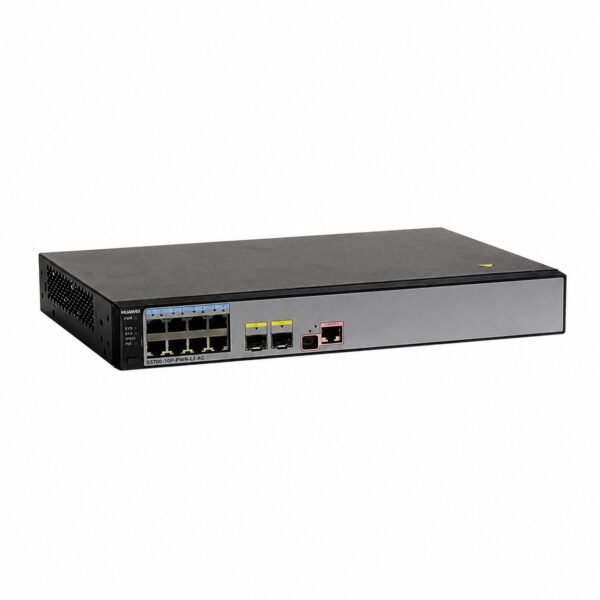

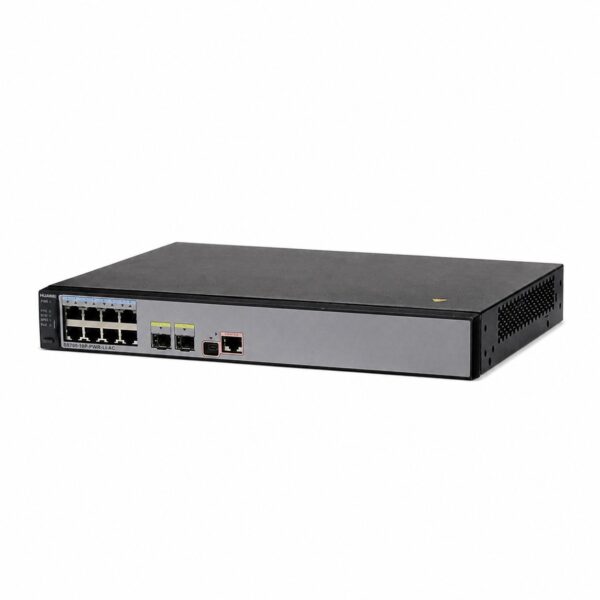

The Huawei S5700-10P-PWR-LI-AC is an enterprise-class managed PoE+ switch designed for small to medium-sized enterprise network access or aggregation scenarios. It belongs to the S5700-LI series and features a compact 1U box-style chassis with fanless natural convection cooling.

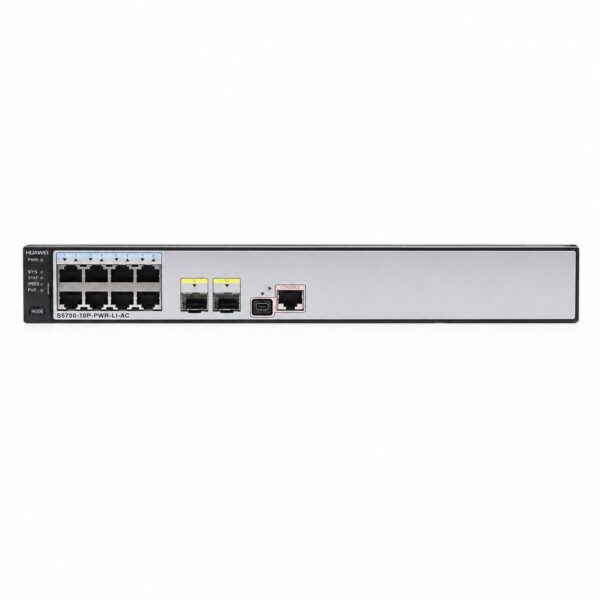

The switch is equipped with eight PoE+ 10/100/1000BASE-T Ethernet electrical ports and two 1000BASE-X SFP optical ports, supporting flexible hybrid network access. The built-in power supply delivers up to 124W of PoE power budget, capable of fully powering up to eight ports under IEEE 802.3af standard or four ports under IEEE 802.3at standard. An intelligent power management system provides three energy-saving modes: standard, basic, and deep.

With a switching capacity of 208 Gbps and a forwarding rate of 15 Mpps, the switch delivers robust Layer 2 switching performance. It supports both IPv4 and IPv6 dual-stack protocols, along with various IPv6 routing protocols and tunneling technologies. The device measures 320.0 mm × 220.0 mm × 43.6 mm and fits 300 mm cabinet depths with front-panel single-side maintenance.

Technical Specifications

Category	Specification
Product Type	Enterprise-class switch, PoE switch
Application Layer	Layer 2
Switching Capacity	208 Gbps
Forwarding Performance	15 Mpps
MAC Address Table	16K entries
Switching Mode	Store-and-forward
Port Structure	Non-modular
Total Ports	10 ports
Port Description	8 × 10/100/1000BASE-T Ethernet ports (PoE+ capable) 2 × 1000BASE-X SFP ports
Console Port	1 × console port
USB Port	1 × mini USB port
VLAN	Supports up to 4K VLANs Guest VLAN, Voice VLAN MAC/Protocol/IP subnet/Policy/Port-based VLAN SuperVLAN
QoS	Port rate limiting Packet redirection Port-based traffic policing, dual-rate three-color CAR 8 queues per port WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling 802.1p and DSCP priority remarking
Multicast Management	IGMP v1/v2/v3 snooping and fast-leave VLAN-based multicast forwarding and multicast VLAN replication Multicast load balancing across bundled ports
Network Management	MFF support Virtual Cable Test (VCT) SNMP v1/v2/v3 eSight network management system, WEB-based management Auto-configuration HTTPS support System logs, hierarchical alarms GVRP protocol MUX VLAN 802.3az Energy-Efficient Ethernet (EEE) Dying Gasp power-off alarm NetStream
Security Management	User分级 management and password protection DoS, ARP, and ICMP attack prevention IP, MAC, port, VLAN combined binding Port isolation, port security, Sticky MAC Blackhole MAC addresses MAC address learning limit IEEE 802.1X authentication, per-port user limit AAA authentication (RADIUS, HWTACACS, NAC) SSH v2.0, HTTPS CPU protection Blacklist and whitelist

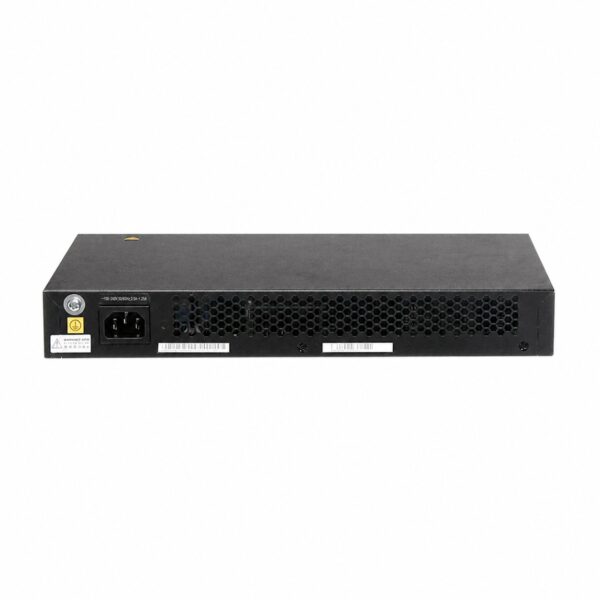

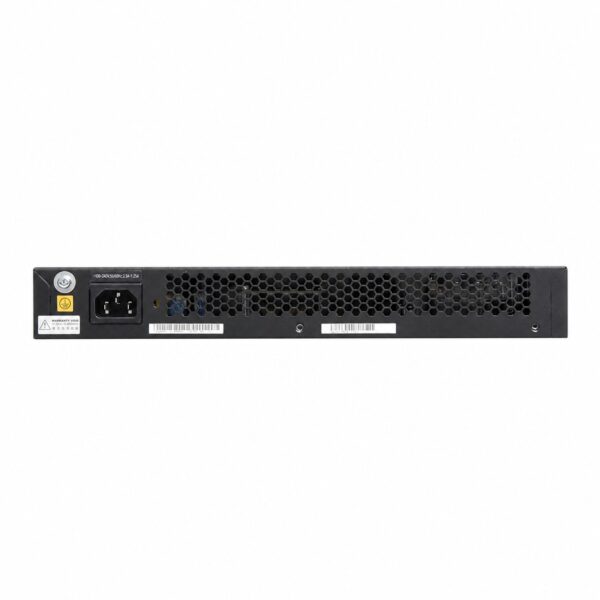

Power Supply	AC 100–240V, 50/60Hz
PoE Support	PoE+ (IEEE 802.3af/at) PoE power budget: 124W
Maximum Power Consumption	142.4W
Dimensions (W×D×H)	320.0 mm × 220.0 mm × 43.6 mm
Operating Temperature	0°C to 50°C
Operating Humidity	5% to 95% (non-condensing)
