Huawei S1720-52GWR-PWR-4P-AC – Product Documentation

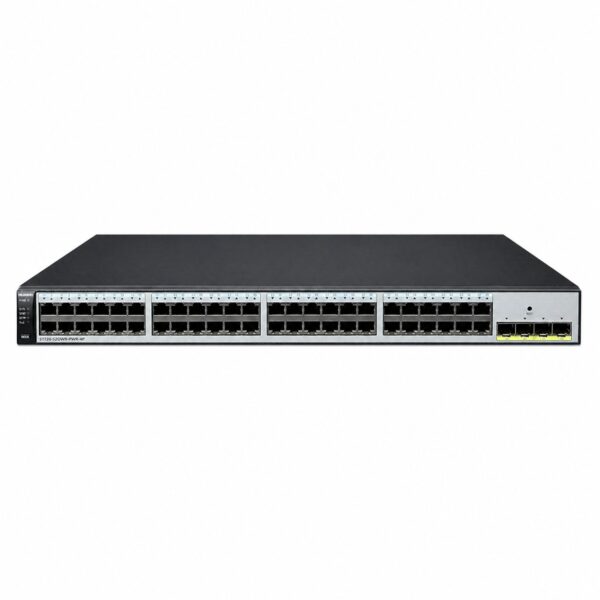

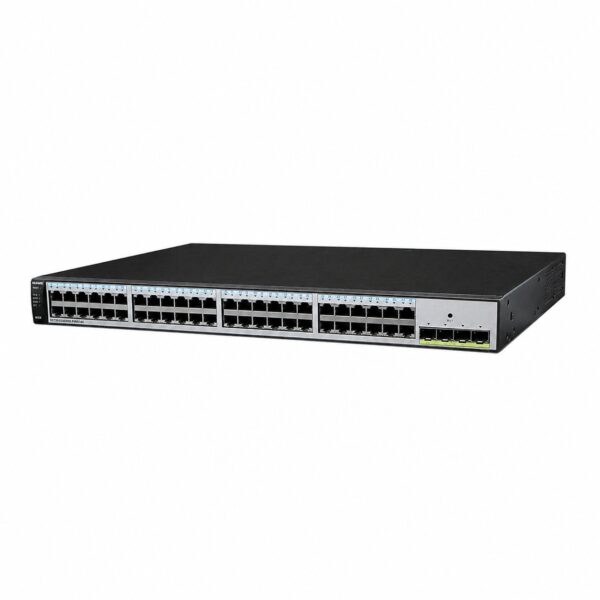

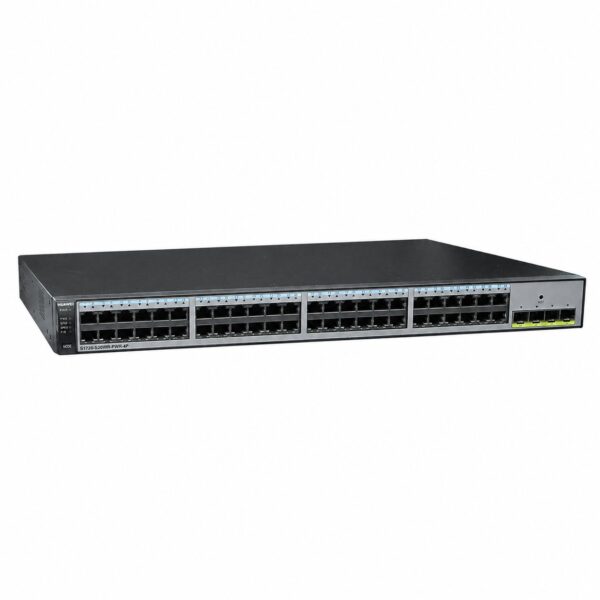

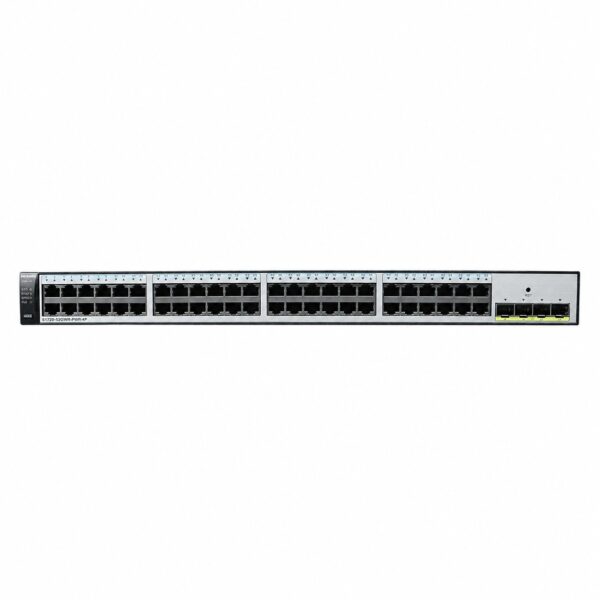

Name: Huawei S1720-52GWR-PWR-4P-AC Switch - SunSpike
SKU: S1720-52GWR-PWR-4P-AC

Product Overview

The Huawei S1720-52GWR-PWR-4P-AC is a next-generation energy-saving Gigabit Ethernet access switch belonging to the Huawei S1700 series. It is designed for deployment at the access layer of enterprise networks, delivering cost-effective packet switching capability with high-performance hardware and rich service features.

The switch provides 48 PoE+ 10/100/1000BASE-T downlink ports and 4 1000BASE-X Ethernet SFP uplink ports, offering high-density Gigabit access with flexible fiber uplink options. With a switching capacity of 336 Gbit/s and a forwarding performance of 78 Mpps, the S1720-52GWR-PWR-4P-AC ensures non-blocking wire-speed forwarding across all ports.

The switch supports Power over Ethernet Plus (PoE+), delivering up to 369.6W of PoE budget to power connected devices such as IP phones, wireless access points, and IP cameras. It incorporates Energy Efficient Ethernet (EEE) technology, which enables the switch to enter a power-saving mode during low traffic periods and adjust power output based on cable length.

The S1720-52GWR-PWR-4P-AC offers comprehensive Layer 2 features including VLAN (4K VLANs), STP/RSTP/MSTP, link aggregation (LACP), and port mirroring. It also supports IPv4 and IPv6 static routing, making it suitable for small to medium-sized business networks. The switch provides robust security features such as MAC address authentication, 802.1X authentication, RADIUS authentication, Portal authentication, port isolation, storm suppression, and DHCP snooping.

Management is simplified through a web-based network management system, DHCP client support, and one-key restoration. The web-managed S1720 model can be upgraded to a fully-managed model (supporting SNMP and CLI) by purchasing a license.

The S1720-52GWR-PWR-4P-AC is ideal for a wide range of scenarios, including small to medium-sized enterprises, Internet cafes, hotels, schools, and other Ethernet access environments.

Product Specifications

Category	Parameter	Specification
General	Product Model	S1720-52GWR-PWR-4P-AC
	Part Number (PN)	98010623
	Product Type	Managed Gigabit Ethernet Switch
	Series	Huawei S1700 Series
Ports	Downlink Ports	48 × 10/100/1000BASE-T PoE+ Ethernet ports
	Uplink Ports	4 × 1000BASE-X Ethernet SFP ports
	Total Ports	52
Performance	Switching Capacity	336 Gbit/s
	Forwarding Performance	78 Mpps
	MAC Address Table	16K
	Transmission Rate	10/100/1000 Mbps
	Switching Method	Store-and-forward
Memory	RAM	512 MB
	Flash Memory	512 MB total, 240 MB available for customers
Power Supply	Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
	Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
	Maximum Power Consumption (without PoE)	61.7 W
	Maximum Power Consumption (with 100% PoE load)	461.8 W (system: 92.2 W, PoE: 369.6 W)
	Typical Power Consumption (30% traffic, EEE enabled)	42 W
	PoE Budget	369.6 W
	PoE Standard	PoE+
Physical	Dimensions (H × W × D) – Basic	43.6 × 442.0 × 314.8 mm (1.72 × 17.40 × 12.39 in)
	Dimensions (H × W × D) – Maximum	43.6 × 442.0 × 323.8 mm (1.72 × 17.40 × 12.75 in)
	Weight (including packaging)	5.6 kg (12.35 lb)
	Cooling Method	Fan cooling with intelligent fan speed adjustment
Environment	Operating Temperature	0°C to 45°C (32°F to 113°F) at 0–1800 m altitude
	Short-term Operating Temperature	-5°C to +50°C (23°F to 122°F) at 0–1800 m altitude
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
	Operating Humidity	5% to 95%, non-condensing
	Operating Altitude	0–5000 m (0–16404 ft)
	Noise (Normal Temperature, Sound Power)	< 48.3 dB(A)
