Huawei S1720-28GWR-PWR-4P-AC Switch – Product Datasheet

Name: Huawei S1720-28GWR-PWR-4P-AC Switch - SunSpike
SKU: S1720-28GWR-PWR-4P-AC

Product Overview

The Huawei S1720-28GWR-PWR-4P-AC is a web-managed Gigabit Ethernet switch from the Huawei S1700 series, designed for deployment at the access layer of enterprise networks. It delivers cost-effective packet switching capability with multi-service access, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security.

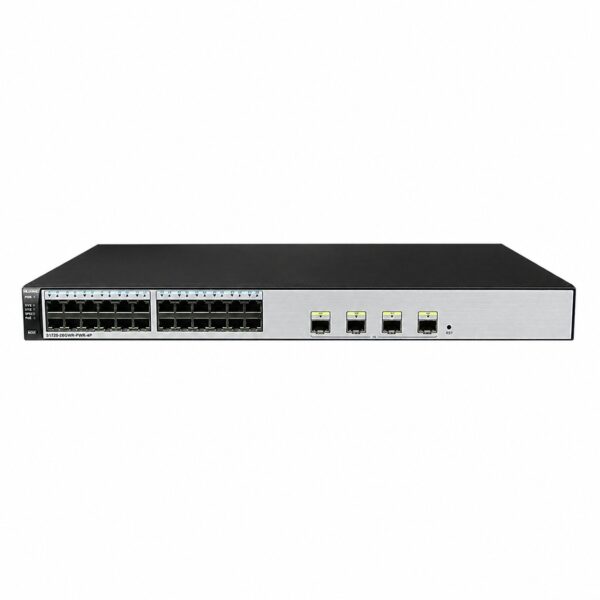

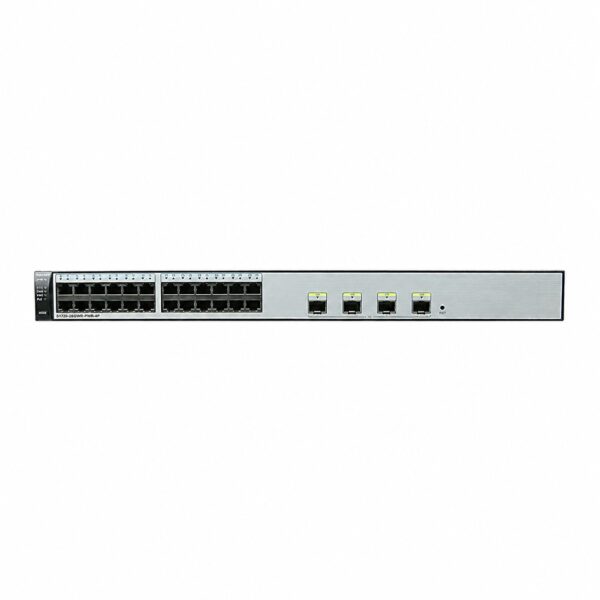

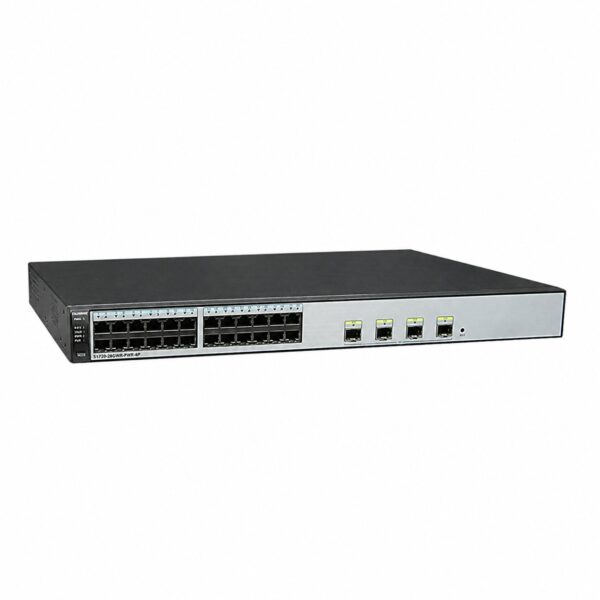

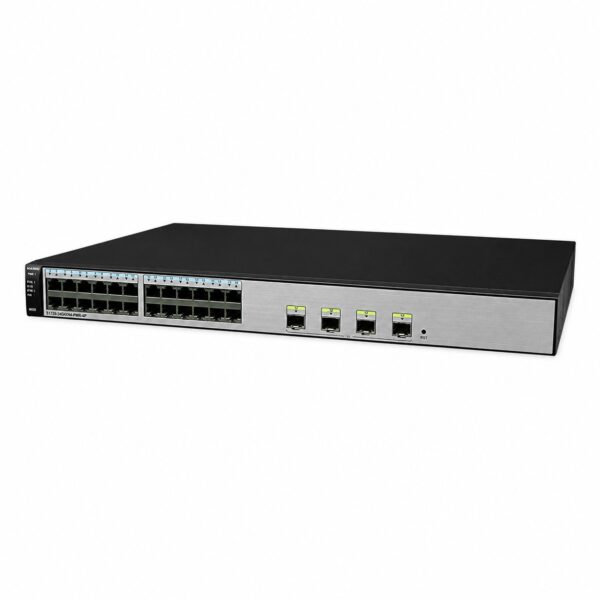

This switch is ideally suited for small to medium-sized businesses, Internet cafes, hotels, schools, and other Ethernet access scenarios. It features 24 x 10/100/1000BASE-T PoE+ ports and 4 x Gigabit SFP ports, providing flexible connectivity for both copper and fiber uplinks. The built-in power supply supports Power over Ethernet (PoE+), delivering up to 369.6W of PoE budget to power connected devices such as IP cameras, wireless access points, and VoIP phones.

Key management and security features include support for up to 4K VLANs, static routing (IPv4 and IPv6), link aggregation, port mirroring, storm suppression, DHCP snooping, and multiple authentication methods including MAC-based, 802.1x, RADIUS, and Portal authentication. The switch can be easily managed through a web-based graphical interface, with the option to upgrade to a fully-managed model via license purchase.

Technical Specifications

Category	Specification
Model	S1720-28GWR-PWR-4P-AC
Product Type	Web-managed switch / Network managed switch
Series	Huawei S1700 Series

Ports & Interfaces

Category	Specification
Fixed Ports	24 × 10/100/1000BASE-T Ethernet ports (PoE+)
Uplink Ports	4 × Gigabit SFP ports
Total Ports	28 ports
Console Port	Supported

Performance

Category	Specification
Switching Capacity	68 Gbit/s
Forwarding Performance	42 Mpps
MAC Address Table	16K entries
Memory (RAM)	512 MB
Flash Memory	240 MB
VLANs	4K VLANs
Multicast Groups	Up to 1K groups (IGMP snooping)
Link Aggregation Groups	64 LAGs, up to 8 ports per LAG

Power Specifications

Category	Specification
Power Supply	Built-in fixed AC power supply
Input Voltage	100V – 240V AC, 50 – 60 Hz
Power Consumption (without PD)	40.4W
Power Consumption (with PD)	446.7W max
PoE Power Budget	369.6W
PoE Standard	PoE+ (IEEE 802.3at)

Physical Specifications

Category	Specification
Dimensions (W × D × H)	442 × 310 × 43.6 mm (1RU)
Cooling Method	Fan cooling with intelligent fan speed adjustment (PoE models)

Environmental Specifications

Category	Specification
Operating Temperature	0°C to 45°C
Operating Humidity	5% to 95% (non-condensing)
Altitude	0 – 1800m (standard); 1800 – 5000m (derate 1°C per 220m elevation increase)
MTBF	41 years
MTTR	2 hours

Network & Security Features

Category	Specification
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1p, 802.1d, 802.1w, 802.1s; EEE (Energy Efficient Ethernet) supported
VLAN	4K VLANs; Access/Trunk/Hybrid port types; Management VLAN; Voice VLAN
STP	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Multicast	IGMP Snooping; Fast leave
Routing	IPv4 and IPv6 static routing
Security	MAC-based packet filtering; MAC address authentication; Port-based 802.1x authentication; RADIUS authentication; Portal authentication; Port isolation; Storm suppression; DHCP Snooping
QoS	PQ and WRR scheduling; 8 queues per port; Queue scheduling based on 802.1p or DSCP priorities
Link Aggregation	Static LACP; 64 LAGs with up to 8 ports per LAG
Port Mirroring	Port-based bi-directional flow mirroring
Bandwidth Control	Rate limiting for ingress/egress packets with 64 kbit/s granularity
Broadcast Storm Suppression	Interface rate-based suppression; Alarm notification when traffic rate reaches upper limit

Management & Maintenance

Category	Specification
Management Methods	Web-based network management; DHCP client; One-key restoration
Upgrade Path	Upgradeable from web-managed to fully-managed model via license purchase
Maintenance	System log; RMON; Syslog; Ping/Traceroute; VCT (Virtual Cable Test); LLDP (Link Layer Discovery Protocol)
