Huawei S1720-28GWR-PWR-4X-AC Switch – Product Overview & Specifications

Name: Huawei S1720-28GWR-PWR-4X-AC Switch - SunSpike
SKU: S1720-28GWR-PWR-4X-AC

Product Overview

The Huawei S1720-28GWR-PWR-4X-AC is a next-generation energy-efficient Ethernet access switch belonging to the Huawei S1700 series. Designed for deployment at the access layer of enterprise networks, it delivers cost-effective packet switching capability while providing multi-service access, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security.

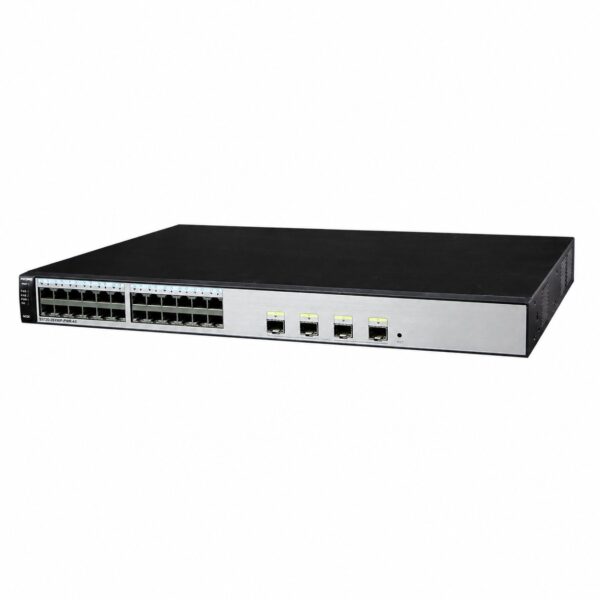

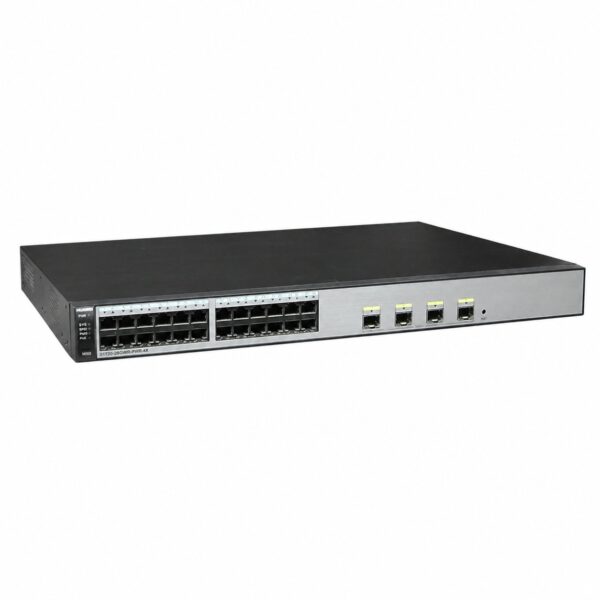

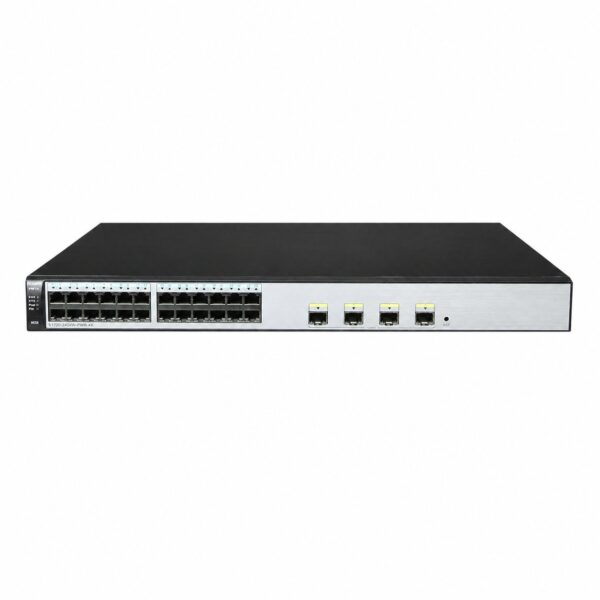

The switch features 24 PoE+ 10/100/1000BASE-T ports and 4 10GE SFP+ uplink ports, making it suitable for various scenarios including Gigabit Ethernet access to enterprise networks and GE-to-desktop deployments. With a fixed AC power supply and built-in PoE+ capability, the S1720-28GWR-PWR-4X-AC can power connected devices such as wireless access points, IP cameras, and VoIP phones directly through Ethernet cables.

The switch supports web-based network management, DHCP client functionality, and one-key restoration for simplified operation and maintenance. It offers comprehensive security features including MAC address authentication, 802.1x authentication, RADIUS authentication, Portal authentication, port isolation, and DHCP snooping.

Technical Specifications

Category	Specification
Model	S1720-28GWR-PWR-4X-AC
Product Series	Huawei S1700 Series
Switch Type	Managed Ethernet access switch
Fixed Ports	24 Ethernet 10/100/1000 ports + 4 10GE SFP+ ports
Port Types	24 PoE+ 10/100/1000BASE-T ports; 4 10GE SFP+ Ethernet ports
Switching Capacity	168 Gbit/s
Forwarding Performance	96 Mpps
MAC Address Table	16K
Memory (RAM)	512 MB
Flash Memory	240 MB
VLAN	4K VLANs; VLAN assignment based on access, trunk, and hybrid ports; Management VLAN; Voice VLAN
QoS	PQ and WRR scheduling; Eight queues per port; Queue scheduling based on 802.1p or DSCP priorities
Spanning Tree Protocol	STP (IEEE 802.1d); RSTP (IEEE 802.1w); MSTP (IEEE 802.1s)
Multicast	IGMP snooping; Maximum 1K multicast groups; Fast leave
Routing	IPv4 and IPv6 static routing
Link Aggregation	64 Link Aggregation Groups (LAGs); Maximum 8 ports per LAG; Static LACP
Port Mirroring	Port-based bi-directional flow mirroring
Bandwidth Control	Rate limiting for incoming and outgoing packets; Granularity of 64 kbit/s
Broadcast Storm Suppression	Based on interface rate; Alarm sending when traffic rate reaches upper limit
Security Features	Packet filtering based on MAC addresses; MAC address authentication; Port-based 802.1x authentication; RADIUS authentication; Portal authentication; Port isolation; Storm suppression; DHCP snooping
Device Management	Web-based network management; DHCP client; One-key restoration
Input Voltage	100V – 240V AC, 50 – 60 Hz
Power Consumption (without PoE)	42.7 W
Power Consumption (with PoE)	448.5 W (PoE: 369.6 W)
PoE Power Budget	370 W (supports full PoE power on 24 ports per 802.3af or 12 ports per 802.3at)
Dimensions (W × D × H)	442 × 310 × 43.6 mm (1U)
Operating Temperature	0°C to 45°C (0–1800m; for 1800–4000m, decreases by 1°C per 220m elevation increase)
Operating Humidity	5% – 95% (non-condensing)
Cooling Method	Fan cooling with intelligent fan speed adjustment
