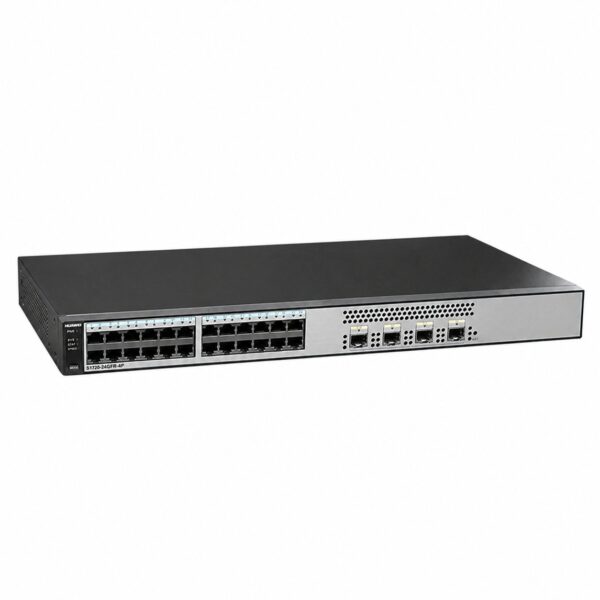

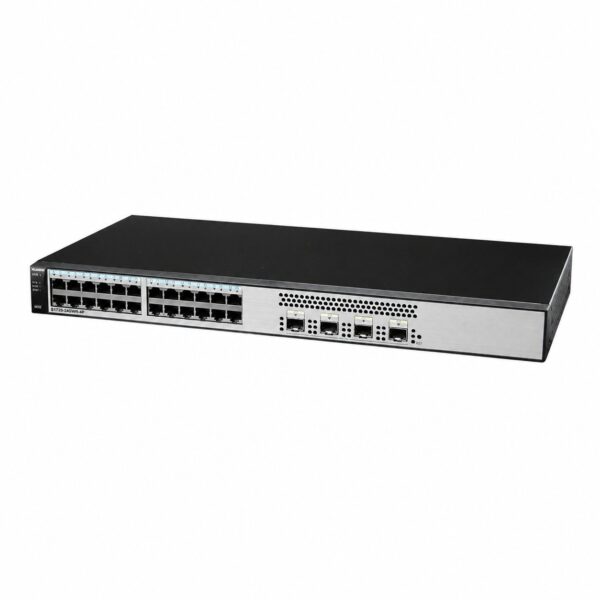

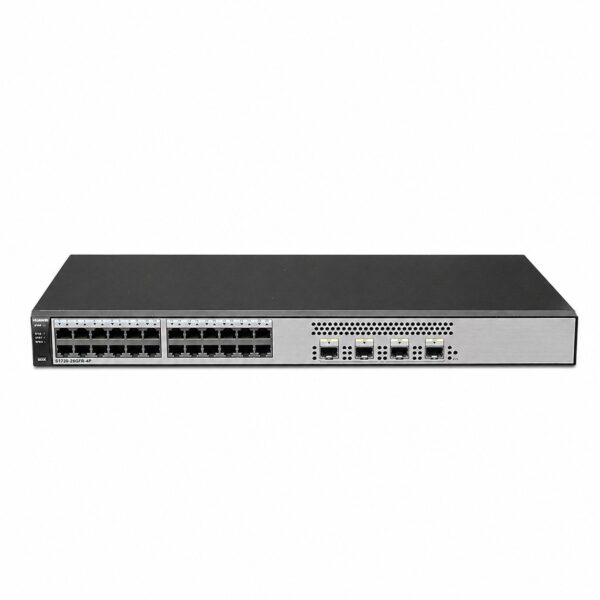

Huawei S1720-28GFR-4P-AC Switch – Product Datasheet

Name: Huawei S1720-28GFR-4P-AC Switch - SunSpike
SKU: S1720-28GFR-4P-AC

Product Overview

The Huawei S1720-28GFR-4P-AC is a next-generation, energy‑efficient gigabit Ethernet switch designed for enterprise access layer deployments. Developed by Huawei, this fully‑managed switch offers 24×10/100/1000BASE‑T electrical ports and 4×1000BASE‑X SFP optical uplink ports, delivering wire‑speed Layer 2 switching performance.

The S1720‑28GFR‑4P‑AC belongs to the Huawei S1700 series, which provides multi‑service access capabilities, excellent extensibility, Quality of Service (QoS) guarantees, powerful multicast replication, and carrier‑class security. It is ideal for small to medium‑sized businesses, Internet cafes, hotels, schools, and corporate network environments requiring stable, high‑speed LAN connectivity.

Key advantages include:

Plug‑and‑play simplicity – no complex configuration required; connect power and network cables for immediate operation
Fan‑free natural heat dissipation – silent operation suitable for noise‑sensitive environments
Web‑based management – intuitive GUI for easy switch administration
Comprehensive security – hardware ACL, port‑based MAC filtering, 802.1X authentication, RADIUS support, and system self‑defense against various attacks
Intelligent upgrade – one‑click automated version upgrades via Huawei Online Upgrade Platform (HOUP)

Technical Specifications

Category	Specification
Model	S1720‑28GFR‑4P‑AC
Part Number	98010848
Product Type	Managed Gigabit Ethernet Switch
Application Layer	Layer 2
Switching Capacity	128 Gbps
Forwarding Rate	42 Mpps
MAC Address Table	16K entries
Memory (RAM)	512 MB
Flash Memory	512 MB total (240 MB available for customers)
Switching Mode	Store‑and‑forward
Downlink Ports	24 × 10/100/1000BASE‑T Ethernet ports
Uplink Ports	4 × 1000BASE‑X SFP ports
Total Ports	28
Port Structure	Non‑modular
Rated Input Voltage	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption	20.2 W (100% throughput)
Typical Power Consumption	16.1 W (30% traffic load, EEE enabled)
PoE Support	Not supported
Heat Dissipation	Fan‑free natural heat dissipation
Dimensions (W × D × H)	442.0 × 224.8 × 43.6 mm (basic) / 442.0 × 233.8 × 43.6 mm (max)
Weight	3.9 kg (8.6 lb)
Chassis	19‑inch standard rack‑mount
Operating Temperature	0°C to 45°C (32°F to 113°F) at 0‑1800 m altitude
Short‑term Operating Temp	‑5°C to +50°C (23°F to 122°F) at 0‑1800 m altitude
Storage Temperature	‑40°C to +70°C (‑40°F to +158°F)
Operating Humidity	20% – 85% (non‑condensing)
Storage Humidity	10% – 90% (non‑condensing)
Relative Humidity	5% to 95%
Noise Level	Noise‑free (no fans)
Mean Time Between Failures (MTBF)	45 years
Mean Time To Repair (MTTR)	2 hours
Availability	> 0.99999
Service Port Surge Protection	Common mode: ±7 kV
Power Supply Surge Protection	±6 kV differential mode, ±6 kV common mode
Stacking	Not supported
RPS Support	Not supported
VLAN	Supports 4K VLANs; Access/Trunk/Hybrid ports; Management VLAN; Voice VLAN
QoS	Absolute priority and WRR scheduling; 8 queues per port; 802.1p/DSCP‑based queue scheduling
Multicast Management	IGMP Snooping (up to 256 multicast groups); Fast Leave mechanism
Network Management	SNMP; Web management (HTTPS); DHCP‑client; Password protection; One‑click restore
Security	Hardware ACL; Port‑based MAC filtering; MAC authentication; 802.1X authentication; RADIUS authentication; Port isolation; Storm control; System self‑defense against broadcast storms, ARP, ICMP, TCP, worm viruses, DoS attacks; DHCP Snooping
Energy Efficient Ethernet (EEE)	Supported
Power Supply Type	Built‑in fixed AC power module (non‑pluggable)
Reset Button	Short press to reset; hold for ≥6 seconds to restore factory settings
Mode Switching Button	Toggles port indicators between speed mode and link status mode
