Huawei CloudEngine S6730-H48X6C-V2 – Product Documentation

Name: Huawei CloudEngine S6730-H48X6C-V2 - SunSpike
SKU: S6730-H48X6C-V2

Product Overview

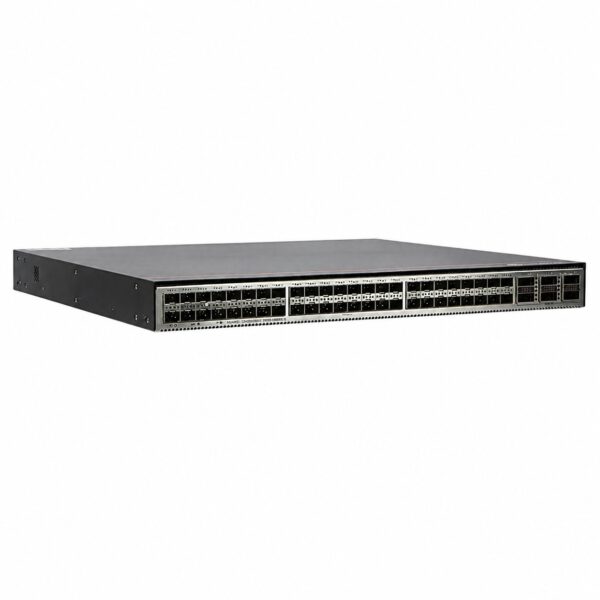

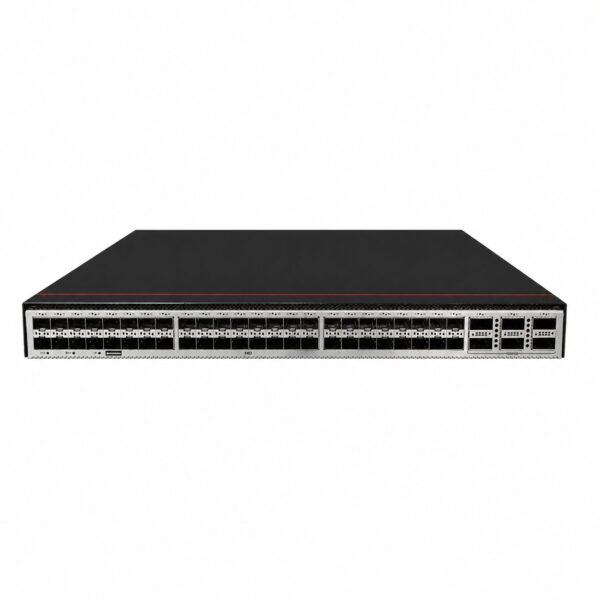

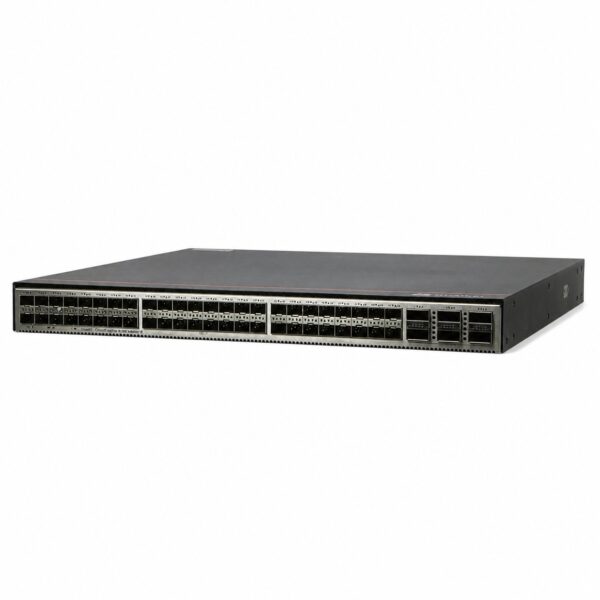

The Huawei CloudEngine S6730-H48X6C-V2 is a next-generation enterprise-class 10 GE routing switch belonging to the CloudEngine S6730-H-V2 series. It is designed for high-performance core and aggregation layer deployments in enterprise campuses, universities, data centers, and other large-scale network environments.

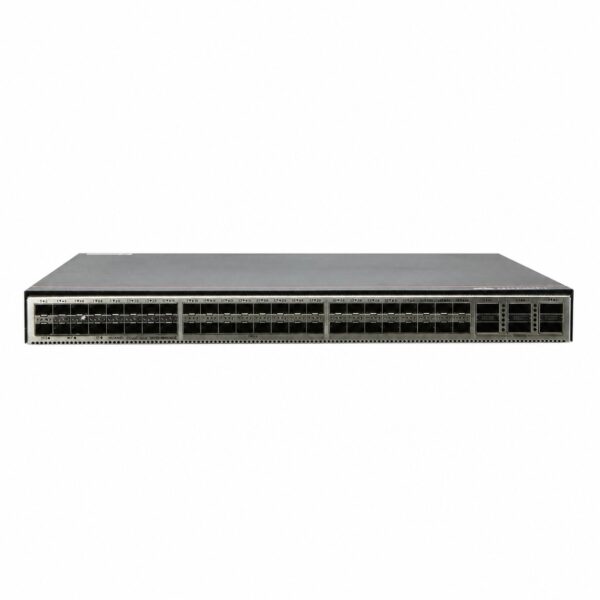

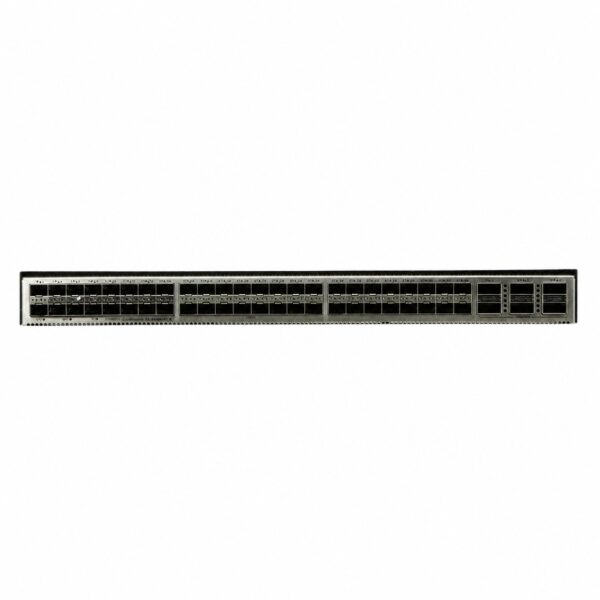

This switch features 48 x 1/10 Gig SFP+ downlink ports and 6 x 40/100 Gig QSFP28 uplink ports. All uplink ports support 40 GE by default and can be upgraded to 100 GE through optional right-to-use (RTU) licenses, providing future-proof scalability without hardware replacement. The switch supports dual pluggable power modules with 1+1 power backup for enhanced reliability.

Built on Huawei’s unified software platform, the CloudEngine S6730-H48X6C-V2 delivers a rich set of Intent-Driven Network (IDN) features. It supports VXLAN for network virtualization, enabling “one network for multiple purposes” and reducing deployment and operational costs. The free mobility feature ensures a consistent user experience regardless of user location or IP address. With Telemetry technology, device data is collected in real time and, when combined with Huawei’s CampusInsight network analyzer, enables intelligent network operations and rapid problem detection. The switch also supports cloud management across the full lifecycle from planning and deployment to monitoring and optimization.

With a forwarding performance of 490 Mpps and a switching capacity of 2.16 Tbps/2.4 Tbps, the CloudEngine S6730-H48X6C-V2 is an ideal choice for building next-generation IoT-converged networks with excellent cost-effectiveness, flexibility, and scalability.

Product Specifications

Category	Specification
Model	CloudEngine S6730-H48X6C-V2
Product Part Number	02354HHT
Device Type	Enterprise-class 10 GE routing switch
Fixed Ports	48 x 1/10 Gig SFP+; 6 x 40/100 Gig QSFP28
Uplink Port Default Rate	40 GE (upgradable to 100 GE via RTU license)
Extended Slots	N/A
Forwarding Performance	490 Mpps
Switching Capacity	2.16 Tbps / 2.4 Tbps (device/system)

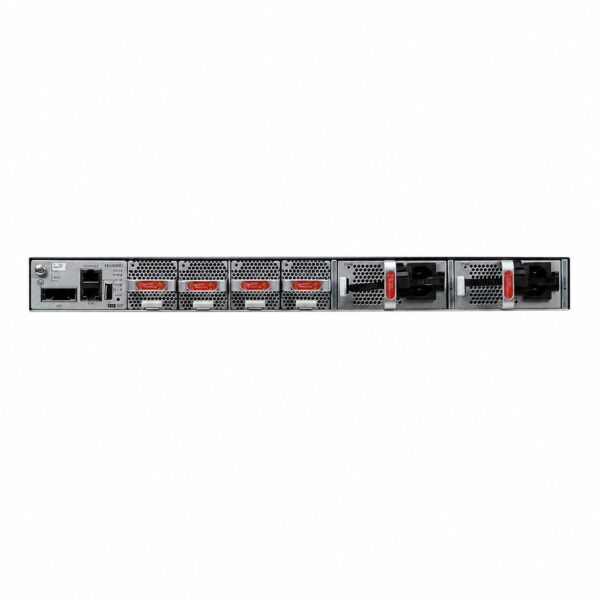

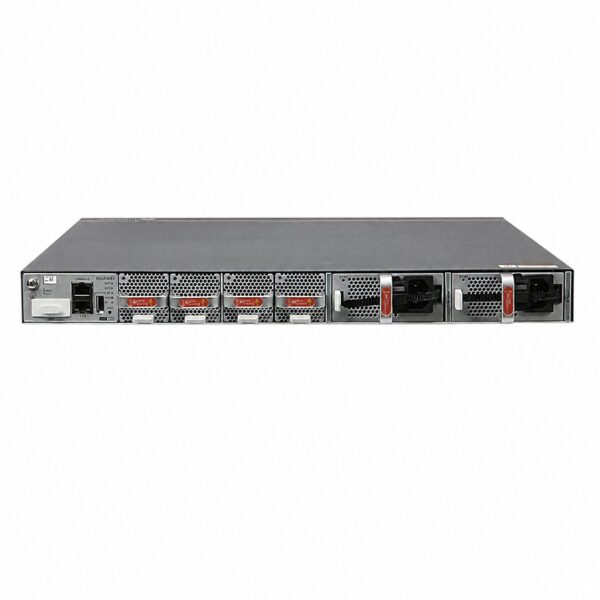

Power Supply Type	Dual pluggable power modules, 1+1 backup
Power Supply Options	• 600 W AC power module • 1000 W DC power module
AC Input Voltage	90 V AC to 290 V AC; 45 Hz to 65 Hz
AC Rated Voltage	100 V AC to 240 V AC; 50/60 Hz
High-Voltage DC Input	190 V DC to 290 V DC
High-Voltage DC Rated	240 V DC
DC Input	–38.4 V DC to –72 V DC
DC Rated	–48 V DC to –60 V DC
Maximum Power Consumption	291 W
Typical Power Consumption	165 W
Maximum Heat Dissipation	992.92 BTU/h
Typical Heat Dissipation	563 BTU/h
Cooling Method	Heat dissipation with fan, intelligent fan speed adjustment
Airflow Direction	Front-to-rear (air intake from front, exhaust from rear)
Noise at Normal Temperature (Acoustic Power)	< 65 dB(A)
Noise at Normal Temperature (Acoustic Pressure)	52 dB(A)
Operating Temperature	–5°C to +45°C (23°F to 113°F) at 0–1800 m altitude
Storage Temperature	–40°C to +70°C (–40°F to +158°F)
Long-Term Operating Altitude	0–5000 m (0–16404 ft.)
Storage Altitude	0–5000 m (0–16404 ft.)
Relative Humidity	5% to 95%, non-condensing
Power Port Lightning Protection (AC)	Differential mode: ±6 kV; Common mode: ±6 kV
Power Port Lightning Protection (DC)	Differential mode: ±2 kV; Common mode: ±4 kV
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm
Weight (without packaging)	5.84 kg (12.87 lbs)
Weight (with packaging)	9.2 kg (20.28 lbs)
Flash Memory	2 GB
Memory (RAM)	4 GB
Eth Management Port	RJ45
USB Port	Supported
Number of Power Slots	2
RPS Input	Not supported
Mean Time To Repair (MTTR)	2 hours

Key Features

Feature Category	Description
VXLAN	Supports VXLAN L2 and L3 gateways; centralized and distributed gateways; BGP-EVPN; configuration via NETCONF protocol
iPCA	Real-time statistics on packet loss count and packet loss ratio at network and device levels
Interoperability	VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP)
Security	Encrypted Communication Analytics (ECA); threat trapping; coordinated network security defense
Cloud Management	Full lifecycle management from planning, deployment, monitoring, experience visibility, and fault rectification to network optimization
Free Mobility	Consistent user experience regardless of user location or IP address
