Huawei CloudEngine S6730-H24X6C Switch – Product Documentation

Product Documentation List

Document Title	Description
Huawei CloudEngine S6730-H Series 10GE Switches Datasheet	Comprehensive datasheet covering the CloudEngine S6730-H series, including product overview, features, models, and specifications
CloudEngine S6700 Series Switches Hardware Description (V600)	Detailed hardware documentation covering chassis, ports, power modules, fan modules, indicators, and technical specifications
CloudEngine S6730-H Series Configuration Guides	Step-by-step configuration documentation for system management, VLAN, routing, and security features
CloudEngine S6730-H Series VXLAN Configuration Guide	Documentation covering VXLAN L2 and L3 gateways, centralized/distributed gateways, and BGP-EVPN configuration
CloudEngine S6730-H Series SVF (Super Virtual Fabric) Configuration Guide	Guide for deploying SVF to virtualize downstream switches and APs vertically as a single device
CloudEngine S6730-H Series Wireless Services Configuration Guide	Documentation covering native WLAN AC capabilities, AP management, and wireless service configuration
CloudEngine S6730-H Series O&M and Telemetry Guide	Documentation on telemetry data collection and CampusInsight integration for intelligent network O&M
CloudEngine S6730-H Series Programmability and Automation Guide	NETCONF interface documentation and automation configuration guides

Product Overview

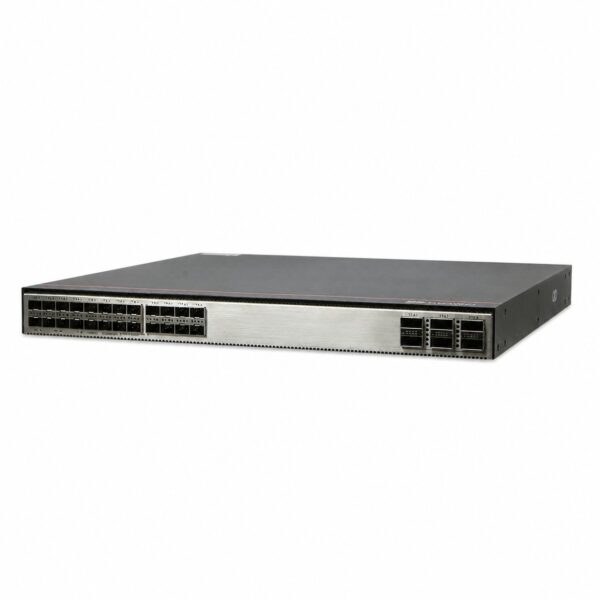

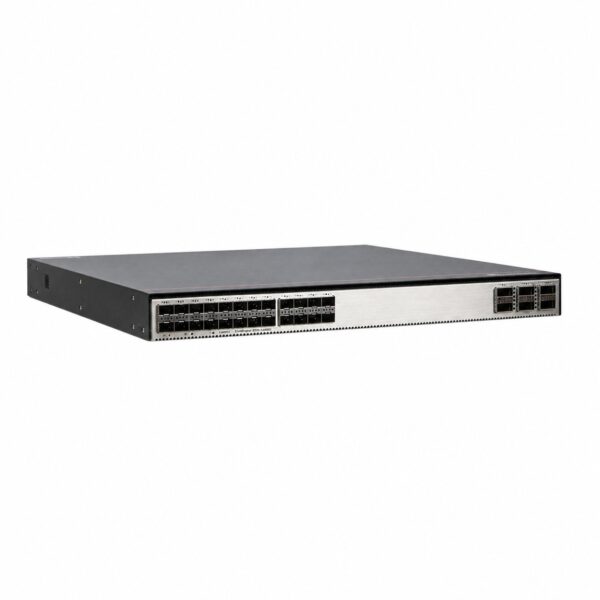

The Huawei CloudEngine S6730-H24X6C is a next-generation enterprise-class 10GE fixed-form-factor routing switch belonging to the CloudEngine S6730-H series. It delivers high-density 10 GE downlink connectivity and 100 GE uplink capabilities, making it ideal for enterprise campuses, carriers, higher education institutions, government networks, and data center environments.

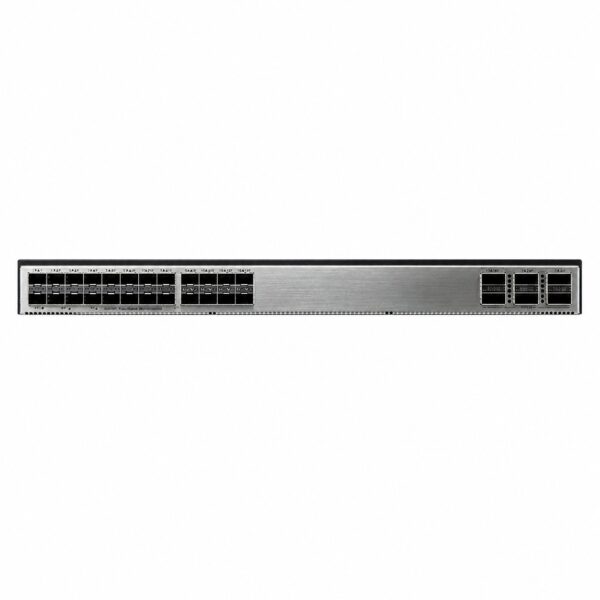

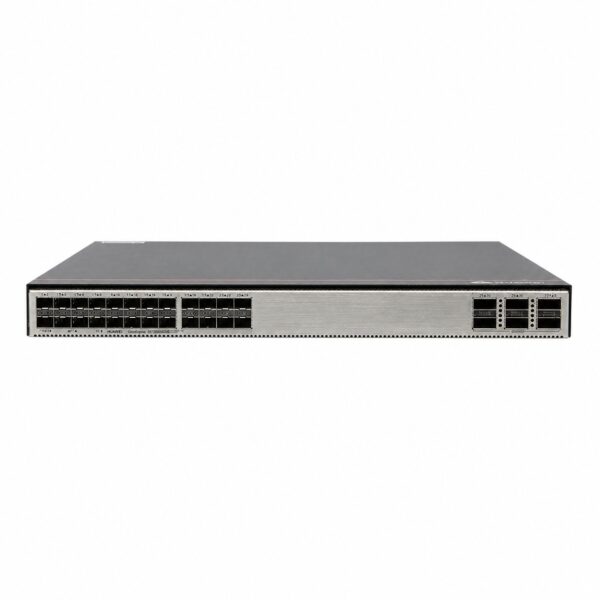

The S6730-H24X6C features 24 x 10 GE SFP+ ports for downlink connectivity and 6 x 40/100 GE QSFP28 ports for uplink or stacking. By default, the QSFP28 optical ports operate at 40 Gbit/s, and a 100GE RTU (Right-to-Use) license can be purchased to upgrade the port rate to 100 Gbit/s.

The switch integrates native Wireless LAN Access Controller (WAC) capabilities, supporting management of up to 1024 wireless access points (APs). This enables wired and wireless network convergence, greatly simplifying operations and reducing the need for standalone WLAN AC devices. The switch also supports VXLAN L2 and L3 gateways with BGP-EVPN for network virtualization, and Super Virtual Fabric (SVF) for vertical virtualization of downstream switches and APs.

Built with built-in security probes, the S6730-H24X6C supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception. It also features telemetry for real-time data collection, collaborating with CampusInsight for intelligent network O&M.

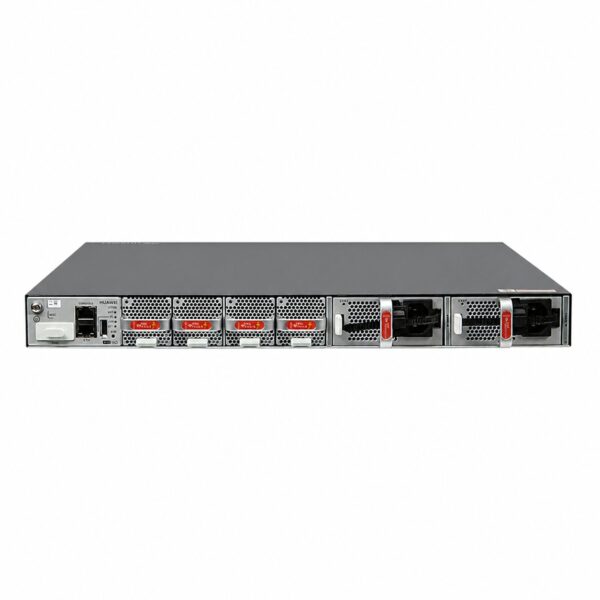

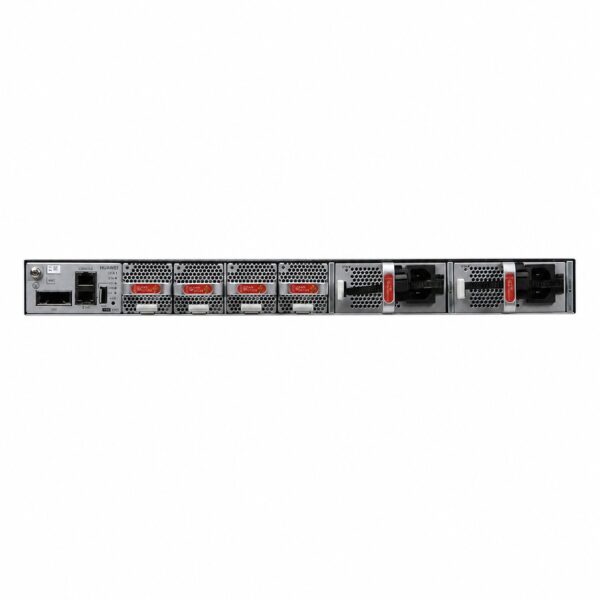

The switch features dual pluggable power modules supporting 1+1 power backup, four independent pluggable fan modules with front-to-back airflow, and a compact 1 U chassis height.

Technical Specifications

Category	Parameter	Specification
General Information	Part Number	02352FSG-005 / 02353GFC-003
	Model	S6730-H24X6C
	First Supported Version	V600R022C00
	Product Type	Enterprise-Class 10GE Fixed Switch
	Switching Architecture	Store-and-Forward
	Form Factor	Fixed (1U)
Switching Performance	Switching Capacity (Device)	1.68 Tbit/s
	Switching Capacity (System)	2.4 Tbit/s
	Switching Capacity (Alternate)	2.56 Tbps / 25.6 Tbps
	Forwarding Performance	490 Mpps
	Forwarding Performance (Alternate)	1260 Mpps
Ports	Fixed Downlink Ports	24 x 10 GE SFP+
	Fixed Uplink Ports	6 x 40/100 GE QSFP28
	Console Port	1 x RJ45 console port
	ETH Management Port	1 x RJ45 management port
	USB Port	1 x USB 2.0 Type A
	PNP Button	1 x PNP button (factory reset / system reset)
	SSD Card Slot	1 x reserved slot (not usable)
Port Specifications	10GE SFP+ Port Speed	1 Gbit/s, 2.5 Gbit/s, or 10 Gbit/s
	40GE/100GE QSFP28 Port Default	40 Gbit/s (by default)
	40GE/100GE QSFP28 Upgrade	100GE RTU license required for 100 Gbit/s
	QSFP28 Port Splitting	Not supported
Power Supply	Power Supply Mode	AC / DC (pluggable)
	Number of Power Modules	2 (dual pluggable)
	Power Redundancy	1+1 backup
	Rated Input Voltage (AC)	100 V AC – 240 V AC
	Typical Power Consumption	149 W
	Maximum Power Consumption	181 W – 254 W (depending on configuration)
Cooling	Heat Dissipation Mode	Forced air cooling with pluggable fan modules
	Number of Fan Modules	4
	Airflow Direction	Front-to-back airflow
Physical Specifications	Chassis Height	1 U
	Chassis Dimensions (H x W x D) – Basic	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
	Chassis Dimensions (H x W x D) – Maximum	43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.)
	Dimensions with Packaging (H x W x D)	175.0 mm x 650.0 mm x 550.0 mm (6.89 in. x 25.59 in. x 21.65 in.)
	Chassis Material	Metal
	Weight without Packaging	5.62 kg (12.39 lb)
	Weight with Packaging	8.9 kg (19.62 lb)
Environmental Specifications	Typical Heat Dissipation	508.4 BTU/hour
Virtualization	VXLAN	VXLAN L2 and L3 gateways, centralized and distributed gateways
	BGP-EVPN	Supported as VXLAN control plane
	SVF (Super Virtual Fabric)	Supported as parent node for vertical virtualization
Wireless Services	Maximum APs Managed	Up to 1024 WLAN APs
	Wireless Features	AP access control, AP domain management, RF management, WLAN QoS, security, CAPWAP
O&M	Telemetry	Supported for real-time device data collection
	iPCA	Real-time packet loss statistics at network and device levels
	CampusInsight	Supported for intelligent network O&M
Programmability	NETCONF Interface	Standard northbound interface
Interoperability	VBST	Compatible with PVST, PVST+, and RPVST
	LNP	Similar to DTP
	VCMP	Similar to VTP
