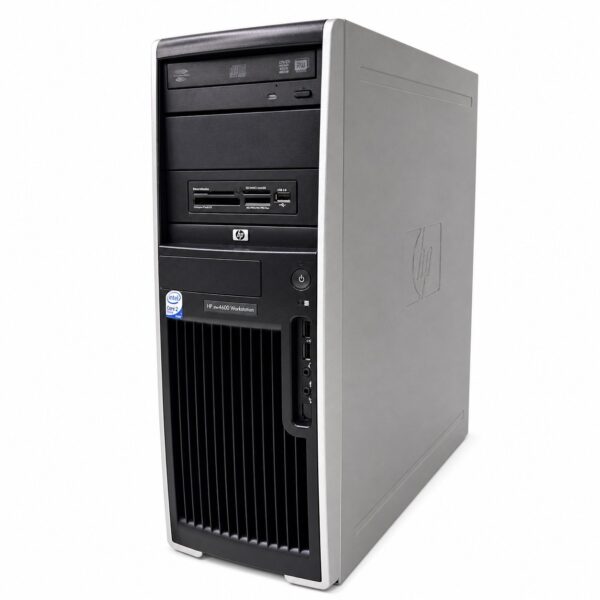

HP xw4600 Workstation
HP xw4600 Workstation
Enterprise stock · tested · export documentation available
Overview
The HP xw4600 Workstation is a entry-to-mid-range, single-socket desktop workstation engineered for engineering, 3D modeling, CAD/CAM applications, software development, and digital content creation. Built around the Intel X38 Express chipset, it balances performance, expandability, and power efficiency.
Technical Specifications
| Category | Specifications |
| Form Factor | Convertible Minitower (Tool-free chassis) |
| Chipset | Intel® X38 Express Chipset |
| Processor Support |
• Intel® Core™2 Duo / Core™2 Quad / Core™2 Extreme • Intel® Xeon® 3000 / 3100 / 3300 series (LGA 775 socket) • Front Side Bus (FSB) up to 1333 MHz |
| Memory |
• 4x DIMM slots • Dual-channel DDR2 Unbuffered ECC / Non-ECC (667 MHz / 800 MHz) • Maximum Capacity: Up to 8 GB |
| Graphics | • 2x PCI Express 2.0 x16 slots (Supports dual NVIDIA Quadro or ATI FireGL/FirePro professional workstation graphics cards) |
| Storage Controllers |
• Integrated SATA 3 Gb/s controller with RAID 0, 1, 5, 10 support • Optional dedicated SAS or SATA PCI-e host bus adapters |
| Drive Bays |
• Internal: 3x 3.5-inch drive bays (Up to 3x SATA/SAS HDDs) • External: 3x 5.25-inch optical drive bays, 1x 3.5-inch floppy/card reader bay |
| Expansion Slots |
• 2x PCIe 2.0 x16 (for Graphics) • 1x PCIe x8 (x4 mechanical) • 1x PCIe x1 • 3x PCI (Legacy 32-bit / 33 MHz) |
| Networking | Integrated Broadcom 5755 NetXtreme Gigabit PCIe LAN (10/100/1000 Mbps) |
| Audio | Integrated High Definition Realtek ALC262 Audio with internal speaker |
| Power Supply | 475-Watt 80 PLUS certified power supply (Wide-ranging Active PFC) |
I/O Ports & Interfaces

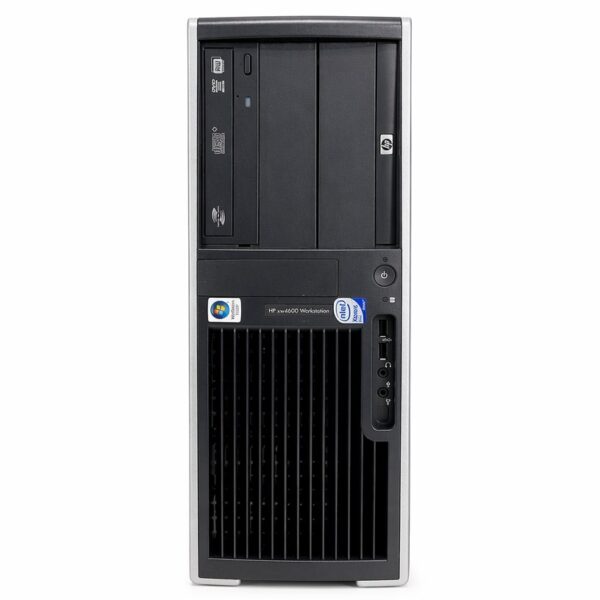

Front Ports
-
2x USB 2.0
-
1x Headphone Out
-
1x Microphone In
-
1x IEEE 1394a FireWire (optional)

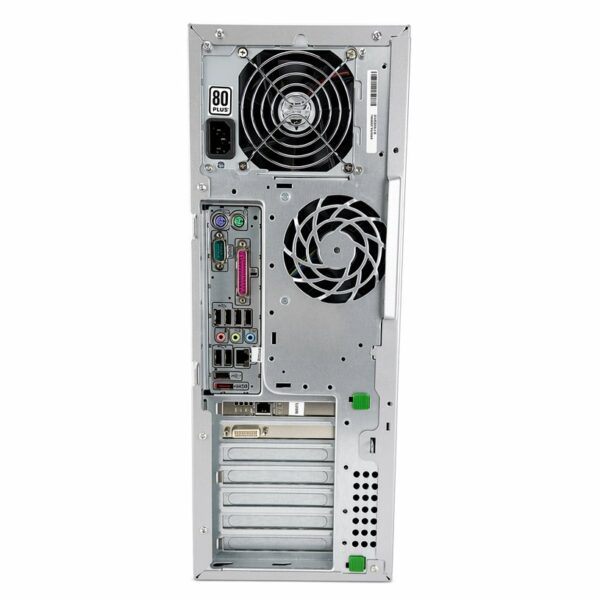

Rear Ports
-
7x USB 2.0
-
1x RJ-45 Gigabit Ethernet
-
2x PS/2 (Keyboard & Mouse)
-
1x Serial Port (RS-232)
-
1x Audio Line-In, 1x Audio Line-Out, 1x Microphone In
