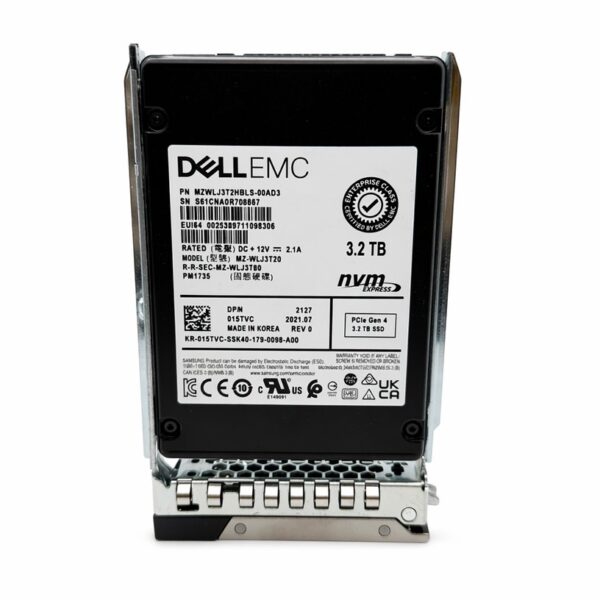

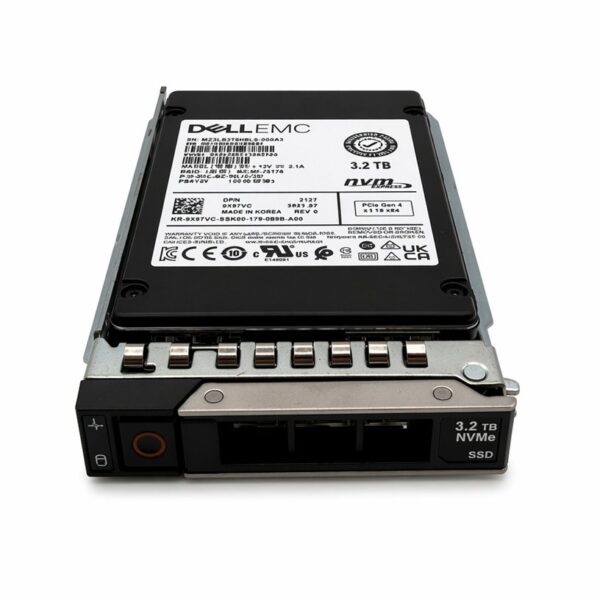

Dell Samsung PM1735 3.2TB U.2 NVMe PCIe Gen4 SSD MZ-WLJ3T20

Here is the comprehensive English technical datasheet and specification profile for the Dell customized Samsung PM1735 3.2TB Enterprise NVMe SSD.

Product Identification & Overview

This drive is an enterprise-grade, high-performance Mixed-Use (MU) / Mainstream Solid State Drive. It is co-branded by Dell and Samsung, featuring specialized Dell enterprise firmware optimized for PowerEdge servers and PowerVault storage arrays.

• Dell Part Number (PN): 15TVC (015TVC)

• Samsung Model Number: MZ-WLJ3T20

• Samsung Part Number (Full): MZWLJ3T2HBLS-00AD3

• Product Series: Samsung PM1735 / PM1735 V2 Series

• Target Application: Enterprise Data Centers, Mission-Critical Virtualization, AI/ML Analytics, High-Performance Computing (HPC), and Mixed-Workload Databases.

Technical Specifications

1. Physical & Interface Properties

• Capacity: 3.2 TB (3,200 GB)

• Form Factor: 2.5-inch Small Form Factor (SFF) × 15mm thickness

• Interface: PCIe Gen4 ×8 (Dual-port capable)

• Protocol: NVMe (Non-Volatile Memory Express)

• Connector Type: U.2 (SFF-8639) / Compatible with U.3 server backplanes

• NAND Flash Type: Samsung V-NAND (Vertical NAND) TLC

2. Performance

• Sequential Read Speed: Up to 8,000 MB/s

• Sequential Write Speed: Up to 3,800 MB/s

• Random Read (4KB, Sustained): Up to 1,500,000 IOPS (1.5M IOPS)

• Random Write (4KB, Sustained): Up to 250,000 IOPS

3. Reliability & Endurance

• Workload Classification: Mixed-Use (MU)

• Drive Writes Per Day (DWPD): 3.0 DWPD over a 5-year warranty period

• Mean Time Between Failures (MTBF): 2,000,000 Hours (2 million hours)

• Uncorrectable Bit Error Rate (UBER): less than 1 sector per $10^{17}$ bits read
