Intel I350-F4 Quad-Port Gigabit SFP Network Adapter (I350-AM4)

The Intel I350-F4 is a high-performance, power-efficient PCI Express 2.1 x4 quad-port Gigabit fiber network interface card (NIC). Driven by the industry-proven Intel® Ethernet Controller I350-AM4, this adapter is designed to support high-density virtualization, iSCSI SAN environments, and reliable enterprise networking over fiber-optic infrastructure using SFP modules.

1. Product Identification

• Product Name: Intel® Ethernet Server Adapter I350-F4

• Alternative Industry Designations: I350AM4-4SP, P041GI-NETWORK-CARD

• Primary Chipset / ASIC: Intel® Ethernet Controller I350-AM4 (formerly code-named Powerville)

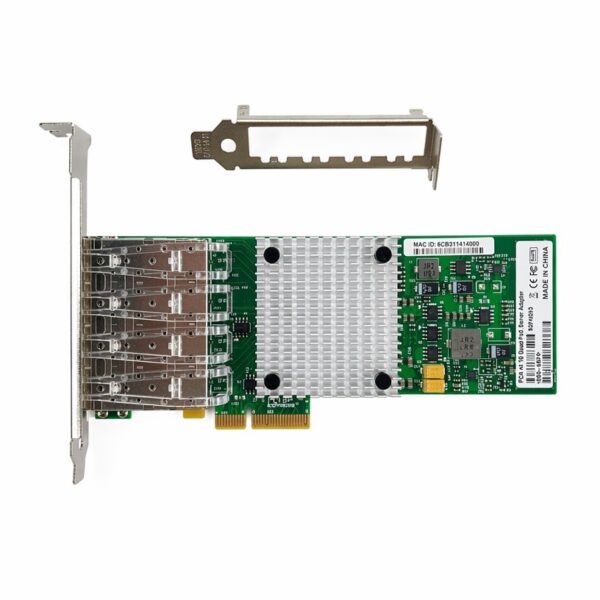

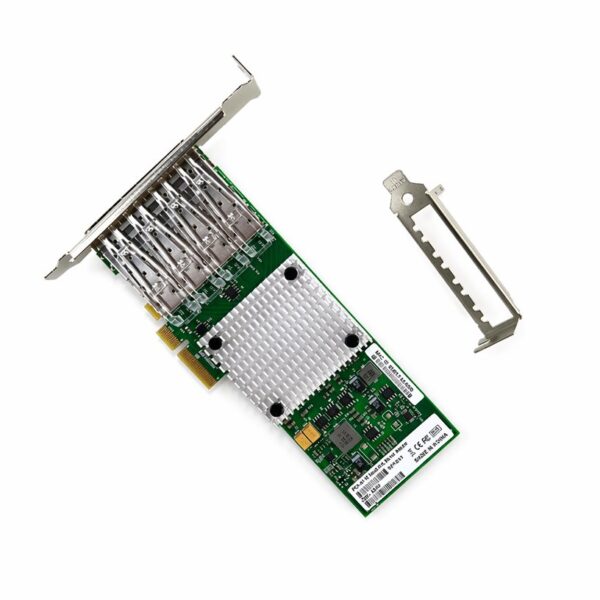

• Form Factor: Low Profile (LP) PCB board size — Typically ships with a full-height bracket pre-installed and a low-profile replacement bracket in the box.

2. Technical Specifications

Feature	Specification
Interface / Bus Type	PCI Express (PCIe) v2.1 (5.0 GT/s) x4 lanes (compatible with x4, x8, and x16 physical slots)
Port Configuration	Quad-Port (4x) Open SFP Slots
Transmission Rate Per Port	1000 Mbps (1.25 Gbps Line Rate)
Supported Data Rates	1000BASE-SX, 1000BASE-LX, 1000BASE-ZX, 1000BASE-T (via copper SFP transceivers), and 1G Direct Attach Copper (DAC)
Media Type Support	Multi-Mode Fiber (MMF), Single-Mode Fiber (SMF), or Copper (dependent on installed SFP transceivers)
Transmission Distance	MMF (1000BASE-SX): Up to 550m SMF (1000BASE-LX): Up to 10km (can go further with long-reach SFPs) Copper (1000BASE-T): Up to 100m on Cat5e/Cat6
LED Indicators	4 x Link Speed (Solid Green) 4 x Link Status (Solid Green for active link; Flashing Green for activity)

3. Advanced Features & Virtualization

Intel® Virtualization Technology for Connectivity (VT-c)

• SR-IOV (Single Root I/O Virtualization): Supports standard PCI-SIG SR-IOV. It can allocate up to 8 Virtual Functions (VFs) per port directly to Virtual Machines (VMs), lowering latency and reducing CPU overhead on host hypervisors.

• VMDq (Virtual Machine Device Queues): Offloads network data sorting from the software virtual switch to the network controller silicon to boost overall VM packet throughput.

• Flexible Port Partitioning: Allows the physical port to be split into multiple virtual ports, offering granular Quality of Service (QoS) controls.

Storage & Protocol Support

• iSCSI Boot: Native support for remote iSCSI boot, enabling cost-effective, diskless server deployments.

• Intel® I/O Acceleration Technology (I/OAT): Improves system throughput and reduces CPU utilization.

• Checksum Offloads: Supports TCP/IP/UDP checksum offloads and Large Send Offloads (LSO/TSO) for both IPv4 and IPv6.

4. Power & Environmental Specs

• Power Consumption (Typical): ~4.0 W to ~5.0 W (highly power-efficient; power consumption scales depending on the power draw of the plugged SFP modules)

• Power Source: Bus powered via PCIe slot (no external power connector needed)

• Operating Temperature: $0^\circ\text{C}$ to $55^\circ\text{C}$ ($32^\circ\text{F}$ to $131^\circ\text{F}$)

• Storage Temperature: $-20^\circ\text{C}$ to $65^\circ\text{C}$ ($-4^\circ\text{F}$ to $149^\circ\text{F}$)

• Compliance & Certifications: FCC Class B, CE, RoHS, IEEE 802.3z (Gigabit Fiber), IEEE 802.1Q (VLANs), IEEE 802.1p (Priority Queues), IEEE 802.3ad (LACP Link Aggregation)

5. Software & Operating System Support

The Intel I350 controller family is natively integrated into virtually all modern enterprise OS kernels:

• Windows Server: 2012 / 2012 R2 / 2016 / 2019 / 2022 (Note: Intel NIC Teaming is fully supported on Windows Server operating systems)

• Windows Client: Windows 10 / 11

• Linux: Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), Ubuntu, Debian (supported natively by the robust igb Linux driver)

• Hypervisors: VMware ESXi 6.x / 7.x / 8.0, Microsoft Hyper-V
