Name: Dell Precision Tower 5810 - SunSpike
SKU: Dell

Dell Precision Tower 5810 Overview

The Dell Precision Tower 5810 is a single-socket workstation designed for high-performance processing, interactive 3D modeling, software development, and data analysis.

Key Specifications Summary

Feature	Specification Details
Form Factor	Mini-Tower chassis (Rack-mountable via optional 19″ rack mount kit)
Processor Family	Intel® Xeon® processor E5-1600 v3 / v4 series, or E5-2600 v3 / v4 series (Single Socket, LGA 2011-v3)
Chipset	Intel® C612 Chipset
Memory Architecture	4 DIMM Slots, Quad-Channel
Memory Capacity	Up to 256GB 2400MHz DDR4 ECC RDIMM (support for 8GB, 16GB, 32GB, or 64GB modules)
Graphics Support	Up to two PCI Express x16 Gen 3 discrete graphics cards (Supports NVIDIA Quadro / AMD FirePro)
Storage Capacity	Up to 3x 3.5″ or 4x 2.5″ internal SATA/SAS/SSD drives
Storage Controllers	• Integrated: Intel AHCI 6Gb/s SATA controller with RAID 0, 1, 5, 10 • Optional: LSI 9341-8i 12Gb/s SAS PCIe RAID, MegaRAID 9361-8i 12Gb/s SAS PCIe RAID
Ultra-Speed Drive Support	Dell Precision Ultra-Speed Drive Duo (x8) and Quad (x16) for PCIe NVMe SSDs
Power Supply (PSU)	External removable / tool-less PSU options: • 425W 85% efficient (80 PLUS Bronze Certified) • 685W 90% efficient (80 PLUS Gold Certified) • 825W 90% efficient (80 PLUS Gold Certified)

Expansion Slots & I/O Ports

Expansion Slots

2x PCIe x16 Gen 3 (Full length, full height, dedicated for graphics)
1x PCIe x16 Gen 3 (wired x8, half length, full height)
1x PCIe x4 Gen 2 (Full length, full height)
1x PCIe x1 Gen 2 (Full length, full height)
1x PCI 32bit/33MHz (Legacy slot)

External Ports

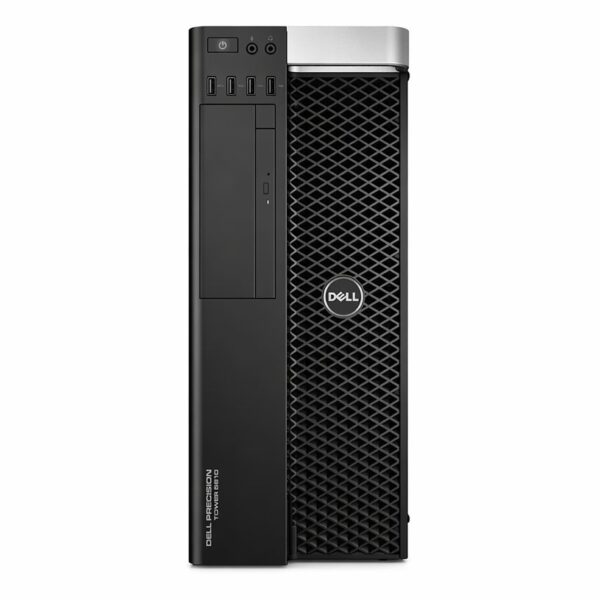

Front Panel: 1x USB 3.0, 3x USB 2.0, 1x Microphone, 1x Headphone

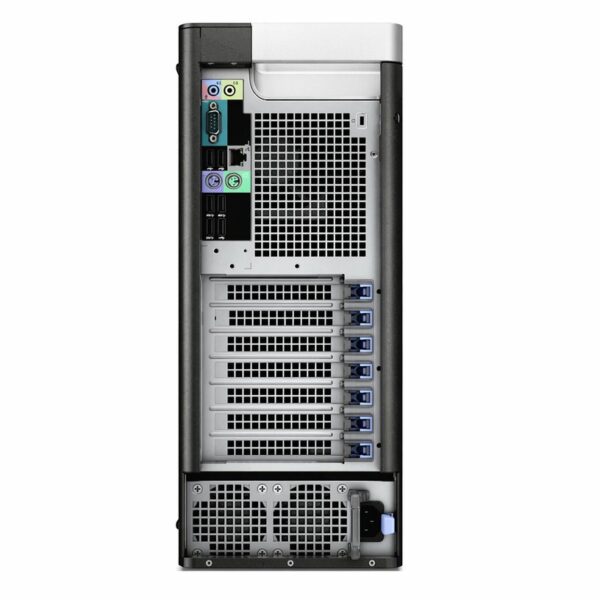

Rear Panel: 3x USB 2.0, 3x USB 3.0, 2x PS/2, 1x RJ-45 (Intel i217 Gigabit Ethernet), 1x Serial, 1x Audio Line-In, 1x Audio Line-Out
