Dell PowerEdge T360 Tower Server

Dell PowerEdge T360 — Technical Specifications & Product Overview

1. System Architecture & Processing

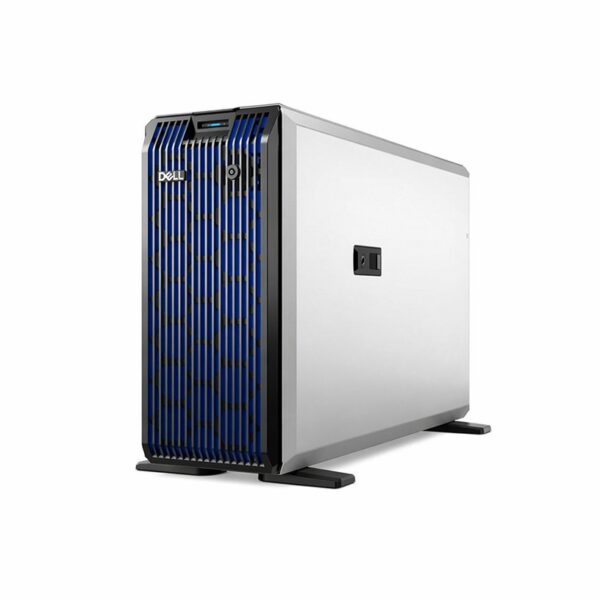

• Form Factor: 4U Tower (Rackable with optional 4U rack mount kit).

• Processor Support: One single-socket (1S) processor from the following options:

  • Intel® Xeon® E-2400 Series processors (up to 8 cores, higher IPC compared to E-2300 generation).

  • Intel® Pentium® Gold series processors.

• Chipset: Intel® C266.

2. Memory (RAM) Subsystem

• DIMM Slots: 4 DDR5 slots (288-pin).

• Memory Architecture: Unbuffered ECC (UDIMM) architecture.

• Maximum Capacity: Up to 128 GB total memory capacity.

• Memory Speed: Up to 4400 MT/s (Speed matches processor capabilities and configuration limits).

3. Storage Drive Bays

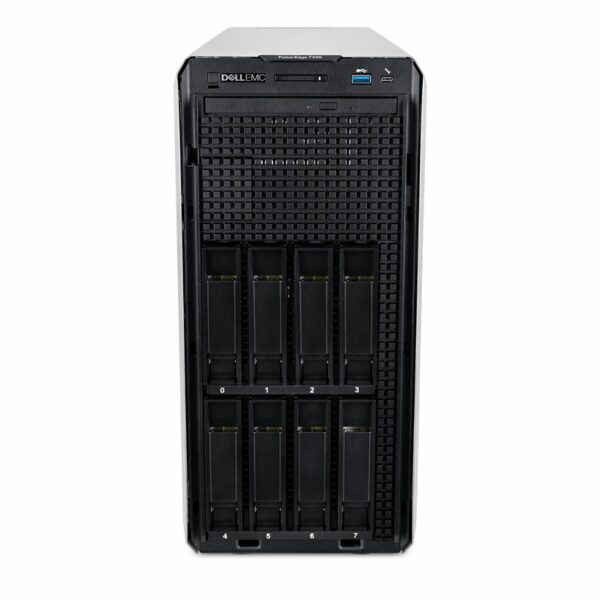

The T360 features front-accessible, hot-plug backplane infrastructure configurations tailored for enterprise reliability:

• Chassis Option A: Up to 8 x 3.5-inch Hot-Plug SAS/SATA (HDD/SSD) drive bays.

• Chassis Option B: Up to 8 x 2.5-inch Hot-Plug SAS/SATA (HDD/SSD) drive bays.

• Internal NVMe: Select configurations support direct-attached NVMe configurations for caching tiers.

4. Storage Controllers & Dedicated Boot

• Internal Hardware RAID Controllers: PERC H355, PERC H755 (with 8GB non-volatile cache memory, providing a significant boost over older PERC cards).

• Internal Host Bus Adapters (Non-RAID): HBA355i.

• External Controllers: HBA355e.

• Software RAID: Intel® Embedded Server RAID Technology S160.

• Internal Dedicated Boot: BOSS-N1 (Boot Optimized Storage Subsystem) utilizing 2 x M.2 NVMe SSDs in rear hot-swap carrier trays for dedicated OS storage.

5. Expansion I/O Slots (PCIe Gen5 Upgrades)

Features 4 expansion slots supporting high-speed peripherals:

• Slot 1: PCIe Gen4 x4 (x8 physical slot connector size).

• Slot 2: PCIe Gen5 x16 (Full-Height, Full-Length, direct link to CPU).

• Slot 3: PCIe Gen4 x4 (x8 physical slot connector size).

• Slot 4: PCIe Gen4 x8 (x8 physical slot connector size).

6. Networking & Connectivity Ports

• Integrated NIC: Integrated Broadcom® 5720 dual-port 1GbE LOM.

• Front Ports: 1 x USB 2.0 port, 1 x USB 3.2 Gen1 port, 1 x Dedicated Micro-USB iDRAC9 Direct management port.

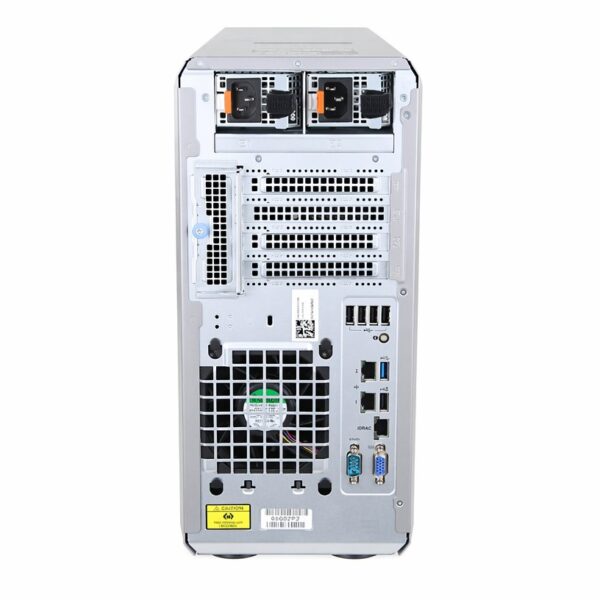

• Rear Ports: 1 x Dedicated iDRAC RJ-45 ethernet port, 1 x Serial DB9 connector, 1 x VGA port, 2 x USB 2.0 ports, 2 x USB 3.2 Gen1 ports, 2 x 1GbE RJ-45 LOM ports.

7. Systems Management & Security Features

• Management Platform: iDRAC9 (Integrated Dell Remote Access Controller 9) base infrastructure with Lifecycle Controller.

• High Availability Support:

  • Hot-plug, hot-swappable front storage arrays.

  • Hot-plug Redundant Power Supplies.

• Security Architecture: Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown mode, and integrated TPM 2.0 module.

8. Power Supply Options

• Dual Hot-Plug Redundant PSUs: 600W Platinum efficiency (100–240V AC).

• Dual Hot-Plug Redundant PSUs: 700W Titanium efficiency (200–240V AC only).
