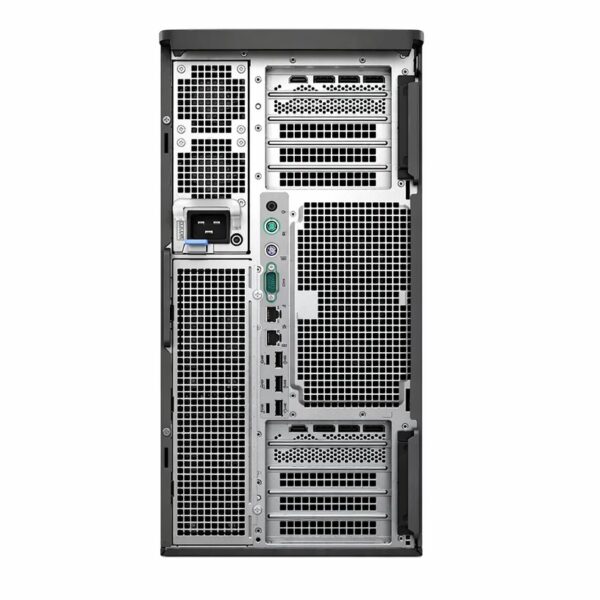

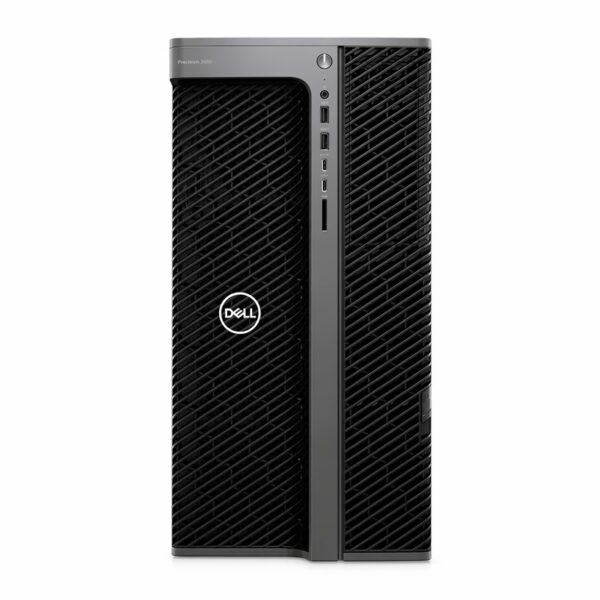

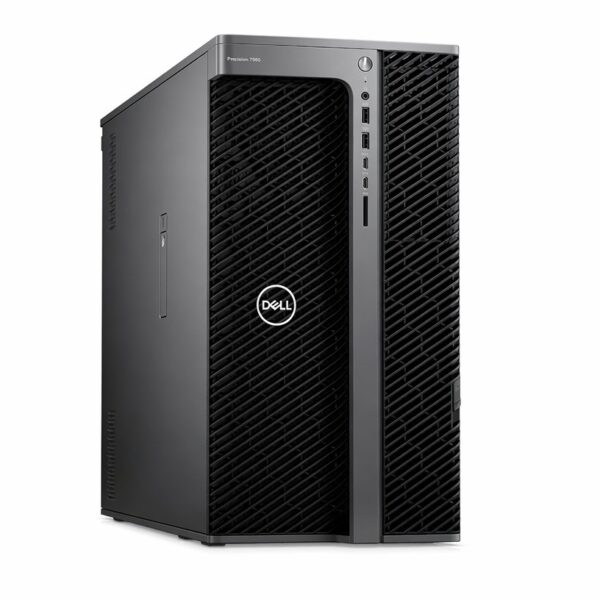

Dell Precision 7960 Tower Workstation
Dell Precision 7960 Tower Workstation
Enterprise stock · tested · export documentation available
Dell Precision 7960 Tower Workstation
Overview
The Dell Precision 7960 Tower is Dell’s flagship ultra-high-performance workstation designed for demanding professional workloads, including Artificial Intelligence (AI) / Machine Learning, 3D Rendering, Complex Simulations, Visual Effects (VFX), and Data Analytics.
Technical Specifications Summary
| Feature | Technical Specification |
| Processor Options | Single-socket Intel® Xeon® W-3400 / W-3500 series (Up to 60 Cores / 120 Threads, e.g., Xeon w9-3595X) |
| Chipset | Intel® W790 Chipset |
| Operating System | Windows 11 Pro for Workstations, Red Hat® Enterprise Linux®, Ubuntu® LTS |
| Memory |
16 DIMM slots (8-channel memory architecture) Supports up to 4 TB DDR5 ECC RDIMM (4800 MT/s / 5600 MT/s) |
| Graphics Capabilities |
Up to 4x 300W double-width high-end GPUs • NVIDIA: RTX 6000 Ada Generation (48 GB), RTX Pro 6000 Blackwell (96 GB), RTX A6000, etc. • AMD: Radeon™ Pro W7400, W6800, etc. |
| Storage Capacity |
Up to 152 TB Total Storage • Up to 8 x M.2 NVMe SSDs in front FlexBays • PCIe NVMe Class 40 / Class 50 SSDs • Enterprise SAS/SATA 3.5” or 2.5” HDDs/SSDs via hardware RAID controller options |
| Expansion Slots | Up to 8 PCIe Gen 4 / Gen 5 slots (Full-height / Full-length) |
| Networking |
• Integrated 1x 1GbE RJ-45 & 1x 10GbE RJ-45 Ethernet • Optional Wi-Fi 6E (Qualcomm WCN6856) + Bluetooth |
| Power Supply (PSU) |
Lockable & Removable Hot-Plug Power Supplies: • 1100W / 1400W (80 PLUS Gold) • 1500W / 2200W (80 PLUS Platinum) |
Physical Dimensions & Weight
-
Height: 430.70 mm (16.96 in.) / 434.20 mm (17.09 in. with runner feet)
-
Width: 218.00 mm (8.58 in.)
-
Depth: 538.30 mm (21.19 in.) / 569.15 mm (22.41 in. with lock structure)
-
Weight:
-
Minimum: 21.04 kg (46.39 lbs)
-
Typical: 23.81 kg (52.50 lbs)
-
Maximum: 37.56 kg (82.82 lbs)
-
-
Rack Mounting: 5U Rack Mount Kit available for standard 19-inch server racks.
