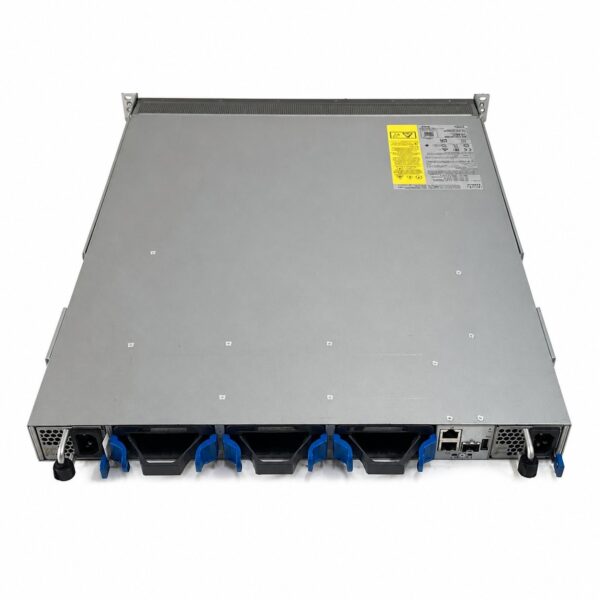

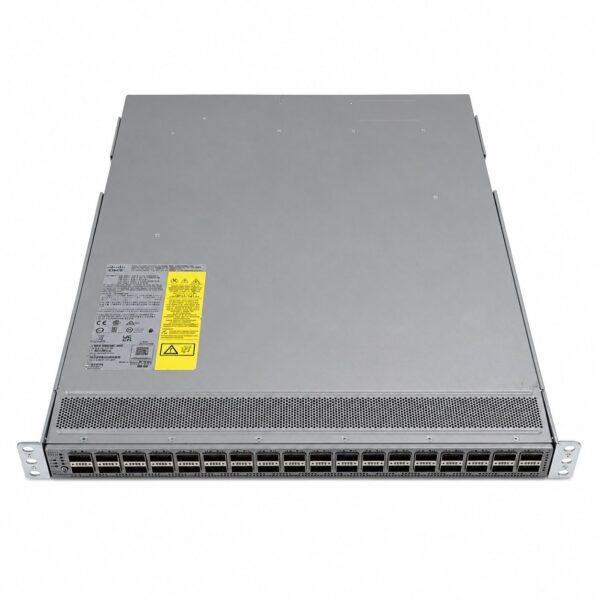

Name: Cisco Nexus 9336C-FX2 Switch - SunSpike
SKU: N9K-C9336C-FX2

Specification	Detail
Product Description	Cisco Nexus 9336C-FX2 – Switch – 36 ports – Managed – Rack-mountable
Device Type	Switch – 36 ports – L3 – Managed
Enclosure Type	Front and side to back rack-mountable – 1U
Subtype	25 Gigabit Ethernet
Performance	Bandwidth: 7.2 Tbps; Forwarding rate: up to 2.8 bpps
Latency	~1 microsecond
Buffer	40 MB system buffer
System Memory	24 GB RAM
Storage	128 GB SSD

Specification	Detail
Ports	36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
Management Ports	1 x management RJ-45; 1 x management SFP+
Other Ports	1 x USB; 1 x serial (RS-232)

Feature	Detail
Architecture	Cisco Cloud Scale technology; supports Cisco ACI mode and NX-OS mode
Security	MACsec support on all ports (wire-rate)
Key Protocols	OSPF, RIP, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS, VXLAN, EVPN, STP, MSTP, ACL
High Availability	vPC (virtual Port Channel) technology, POAP (Power-On Auto Provisioning)
Telemetry	Real-time buffer utilization monitoring; Cisco Tetration support with built-in hardware sensors

Specification	Detail
Power Supply	Internal power supply (not installed); 2 max, optional redundancy
Voltage Required	AC 120/230 V (50/60 Hz)
Operational Power (Typical)	337 W
Operational Power (Max)	777 W
MTBF	352,590 hours
Dimensions (WxDxH)	17.3 in x 24.5 in x 1.7 in (43.9 cm x 62.3 cm x 4.4 cm)
Weight	18.74 lbs (8.5 kg)

Specification	Detail
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity Range (Operating)	5% to 95% (non-condensing)
Compliant Standards	RoHS
Service & Support	Limited warranty – 1 year; advance parts replacement
