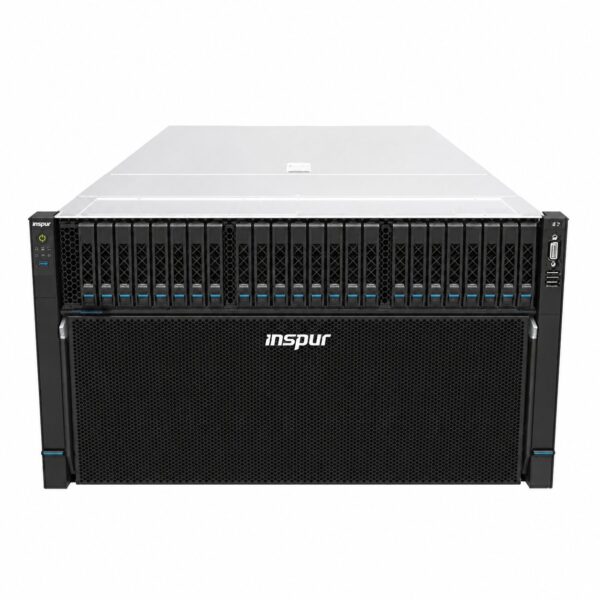

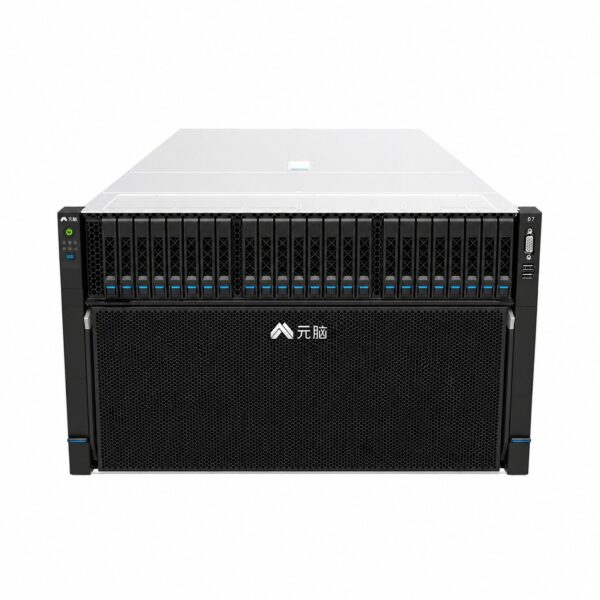

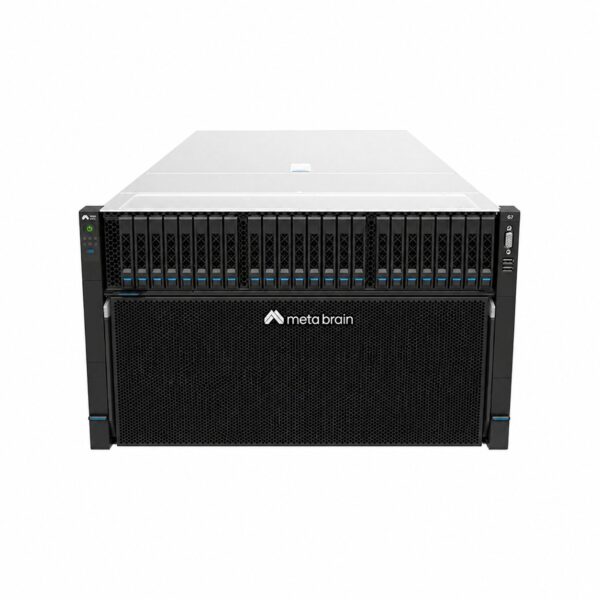

Inspur/IEIT Information NF5688M7 AI Server
NF5688M7
Enterprise stock · tested · export documentation available
Inspur/IEIT Information NF5688M7 AI Server (English Datasheet)
Product Overview
The IEIT (Inspur) NF5688M7 (also categorized under the NF5688G7 series) is a 6U hyperscale AI training server designed for massive artificial intelligence workloads, including trillion-parameter Transformer LLMs, large recommender systems, AIGC, and high-performance computing (HPC).
Technical Specifications
| Parameter | Specification Details |
| Form Factor | 6U Rack Server |
| Processor | 2× 4th or 5th Gen Intel® Xeon® Scalable Processors (TDP up to 350W per CPU) |
| GPU Acceleration | 8× NVIDIA HGX™ Hopper GPUs (e.g., H100 / H800 / H200 SXM, TDP up to 700W per GPU) |
| System Memory | 32× DDR5 DIMM slots, support speeds up to 5600 MT/s (Up to 8TB system capacity) |
| Local Storage |
Up to 24× 2.5″ SSDs (including support for up to 16× NVMe U.2 SSDs) • M.2 Slot: 2× Onboard NVMe/SATA M.2 slots (optional) |
| Expansion Slots | Up to 10× PCIe Gen5 x16 slots (supports high-speed network interfaces including NVIDIA BlueField-3 DPUs, ConnectX-7, and various SmartNICs) |
| RAID Controller | Optional support for RAID 0/1/10/5/50/6/60 with cache supercapacitor protection |
| Network & OCP | Optional 1× OCP 3.0 slot with NC-SI support |
| System Management | DC-SCM BMC management module featuring ASPEED AST2600 |
| Security | Onboard TPM 2.0 module |
| Cooling Options |
• Air-Cooling: 6× hot-swap fans with N+1 redundancy • Direct Liquid Cooling: Cold plate coverage >80%, supporting PUE ≤ 1.15 |
| Power Supply |
N+N Redundant configuration: • 2× 12V 3200W PSUs • 6× 54V 2700W PSUs (Platinum/Titanium efficient power units) |
| I/O Ports |
• Front: 1× USB 3.0, 1× USB 2.0, 1× VGA • Rear: 2× USB 3.0, 1× RJ45 management port, 1× MicroUSB, 1× VGA |
| Dimensions & Weight |
• Dimensions (W×H×D): 447mm × 263mm × 860mm • Weight: Net 92 kg / Gross 107 kg |
| Operating Temp. | Operating: 10°C to 35°C (50°F to 95°F) |
