Supermicro UP SuperServer SYS-111C-NR Datasheet

Key Features & Applications

• Target Applications: Cloud Computing, Virtualization, High Performance Computing (HPC), Content Delivery Network (CDN), Edge Nodes, Data Center Optimized, Storage Headnode.

• Processor Support: Single Socket E (LGA-4677) supporting 5th & 4th Gen Intel® Xeon® Scalable Processors (up to 64 cores / 350W TDP).

• High Memory Density: 16 DIMM slots supporting up to 4TB ECC DDR5 5600MT/s RDIMM.

• Flexible Storage Options: Up to 10x front hot-swap 2.5″ NVMe / SAS / SATA hybrid drive bays + 2x PCIe 3.0 x2 M.2 slots.

• Versatile I/O & Networking: 2x PCIe 5.0 x16 FHHL expansion slots and 2x PCIe 5.0 AIOM slots (OCP 3.0 compatible).

• High Efficiency Power: Redundant 860W Titanium Level (96% efficiency) Power Supplies.

Technical Specifications

System Overview

Feature	Description

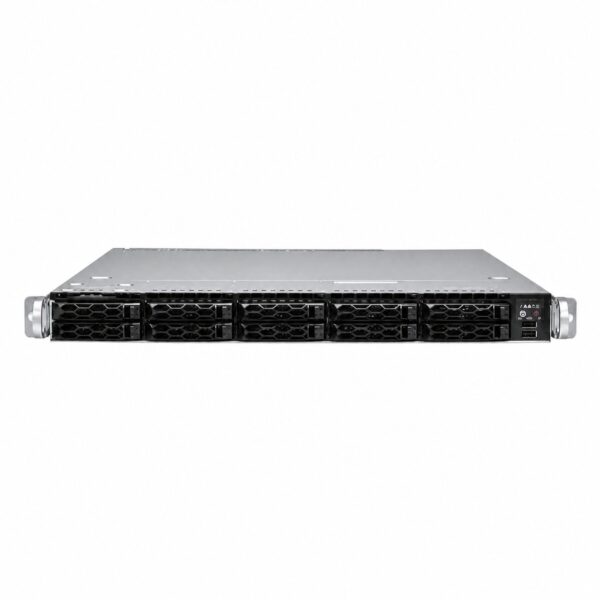

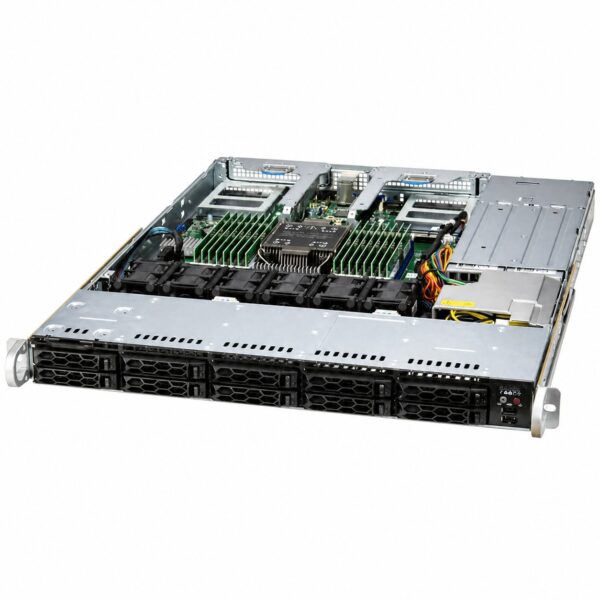

Model Name	UP SuperServer SYS-111C-NR

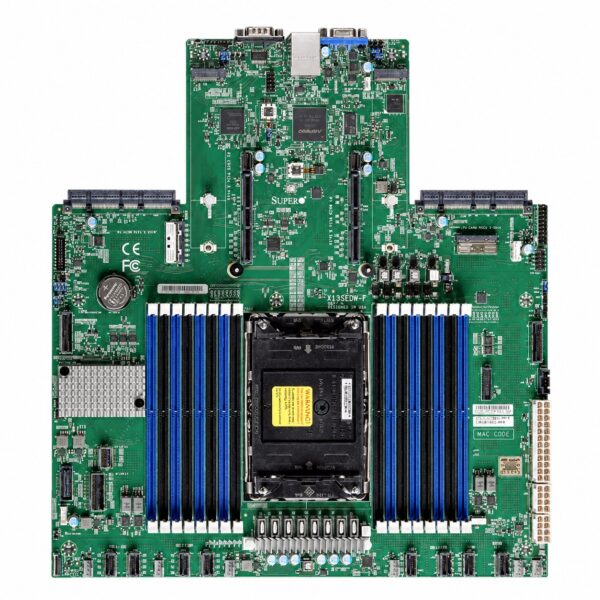

Motherboard	Super X13SEDW-F
Form Factor	1U Rackmount
Chassis Model	CSE-LB16TS-R0AWNP3

Processor & Chipset

Parameter	Specification
CPU Architecture	Single Socket E (LGA-4677)
Supported CPUs	5th Gen Intel® Xeon® Scalable Processors 4th Gen Intel® Xeon® Scalable Processors
Core Count / TDP	Up to 64 Cores / 128 Threads; Supports up to 350W TDP CPUs
Chipset	Intel® C741

System Memory

Parameter	Specification
Memory Capacity	16 DIMM slots Up to 2TB ECC DDR5 RDIMM (1DPC @ 5600MT/s) Up to 4TB ECC DDR5 RDIMM (2DPC @ 4400MT/s)
Memory Type	ECC DDR5 RDIMM (3DS supported)
Memory Voltage	1.1V

Drive Bays & Expansion

Feature	Configuration Options

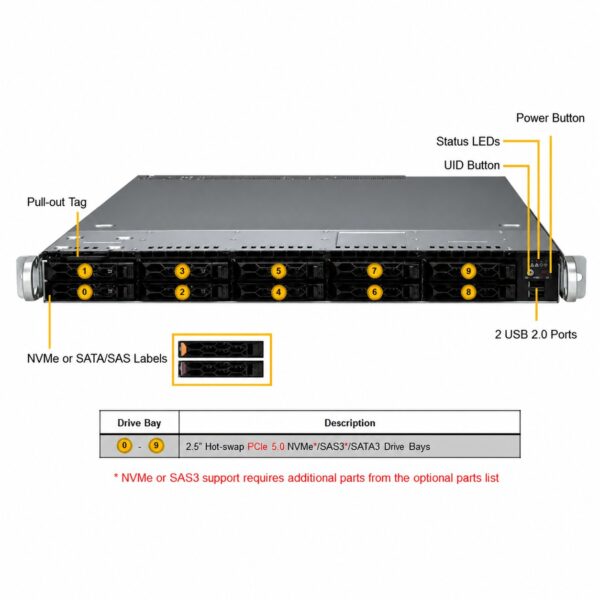

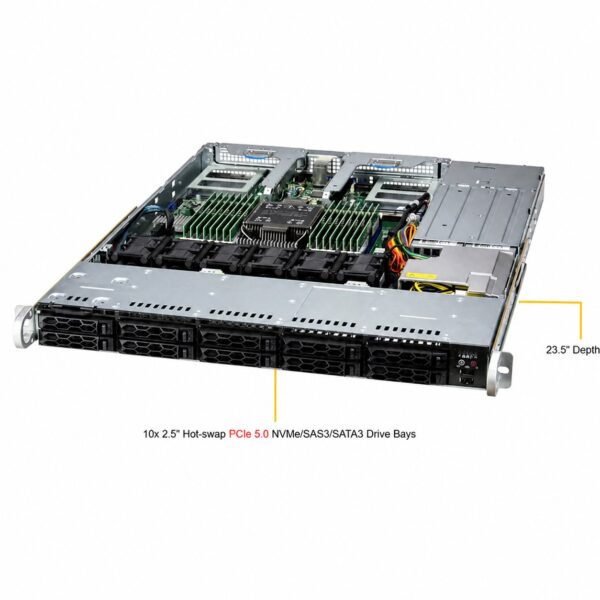

Drive Bays (Front)	Default: 10x 2.5″ SAS/SATA drive bays Option A: 6x 2.5″ SAS/SATA + 4x 2.5″ PCIe 5.0 NVMe/SAS/SATA hybrid bays Option B: 10x 2.5″ PCIe 5.0 x4 NVMe/SAS/SATA hybrid bays (SAS support requires additional controller)
M.2 NVMe	2x PCIe 3.0 x2 NVMe M.2 slots (M-key 2280/22110)

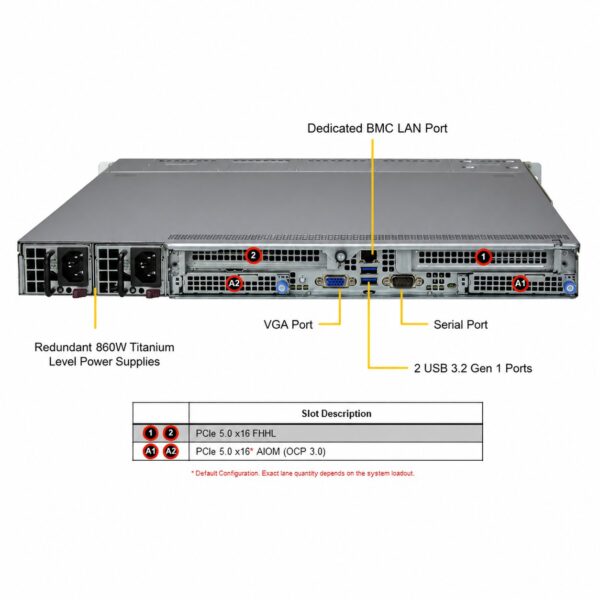

Expansion Slots	2x PCIe 5.0 x16 Full-Height Half-Length (FHHL) slots 2x PCIe 5.0 x16 AIOM networking slots (OCP 3.0 form factor)
GPU Support	Up to 2x Single-Width GPUs (e.g., NVIDIA T1000, L4, A2)

On-Board Devices & Input/Output

Interface	Description
SATA Controller	Intel® C741 native SATA (6Gbps); RAID 0, 1, 5, 10 support
NVMe Controller	RAID 0, 1, 5, 10 support (Intel® VROC key required)
Network Connectivity	Flexible networking via AIOM cards (1GbE/10GbE/25GbE/100GbE options)

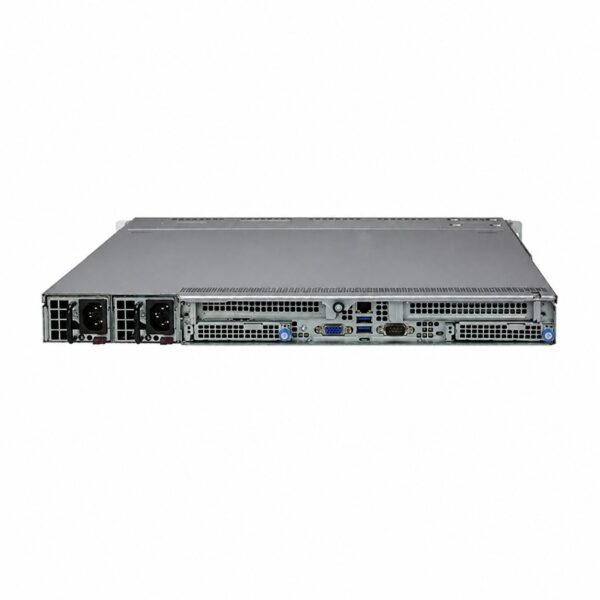

IPMI / BMC	1x Dedicated RJ45 Gigabit Ethernet IPMI LAN port
USB Ports	2x USB 3.2 Gen 1 Type-A ports (Rear) 2x USB 2.0 Type-A ports (Front)
Display & Serial	1x VGA port 1x COM port (Rear)
Security	1x TPM header (SPI capable for TPM 2.0 module)

System Cooling & Power Supply

Component	Specification

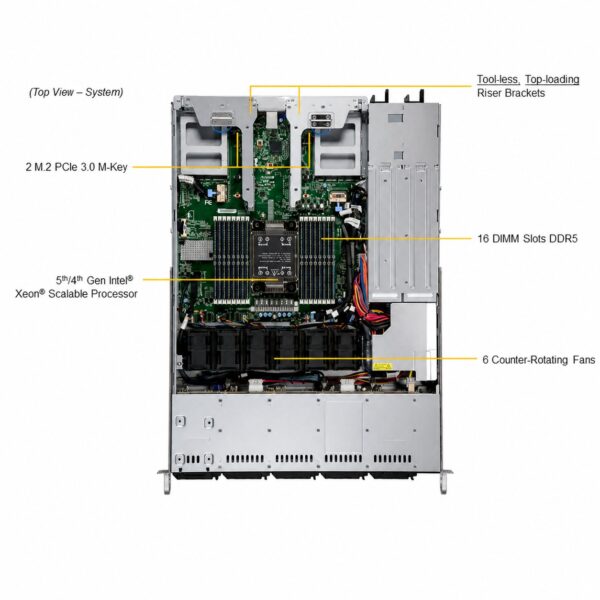

Cooling Fans	Up to 6x 40x40x56mm PWM middle cooling fans + 1 Air Shroud
Power Supplies	2x 860W Redundant (1+1) Titanium Level (96% efficiency) AC power supplies
AC Input Voltage	100-240V AC / 50-60Hz

Management & Software

Feature	Details
Management Software	SuperCloud Composer® (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Thin-Agent Service (TAS)
PC Health Monitoring	CPU Voltage Regulator (8-phase switching), Monitors CPU, Chipset & Memory voltages, Thermal Control & Fan Speed tachometer monitoring
BIOS Type	AMI 32MB SPI Flash EEPROM

Dimensions & Operating Environment

Property	Value
Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	23.5″ (597 mm)
Net Weight	25 lbs (11.3 kg)
Gross Weight	40 lbs (18.1 kg)
Operating Temperature	10°C to 35°C (50°F to 95°F)
Non-Operating Temp.	-30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity	8% to 80% (non-condensing)
