Supermicro SuperStorage System SSG-6048R-E1CR36L
SYS-6048R-E1CR36L
Enterprise stock · tested · export documentation available

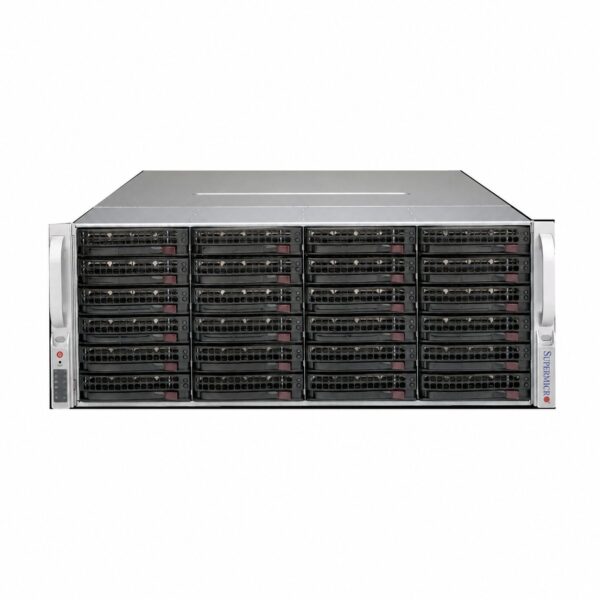

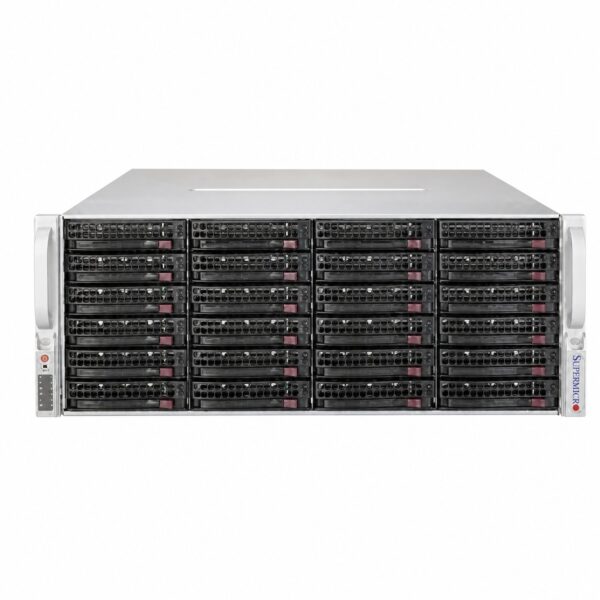

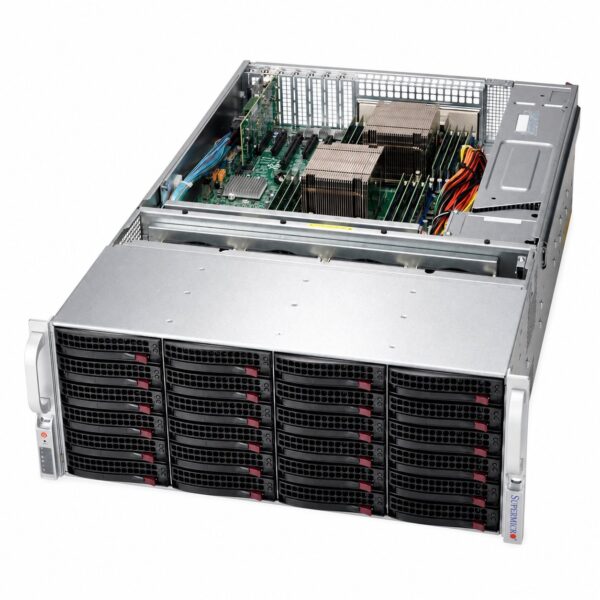

Supermicro SuperStorage System SSG-6048R-E1CR36L
Technical Specifications Overview
Key Features
-
Form Factor: 4U Rackmount High-Density Storage Chassis
-
Processor Support: Dual Socket R3 (LGA 2011) supporting Intel® Xeon® E5-2600 v4 / v3 family processors (up to 145W TDP)
-
Memory Capacity: 16x DDR4 DIMM slots, up to 2TB ECC 3DS LRDIMM / 512GB ECC RDIMM
-

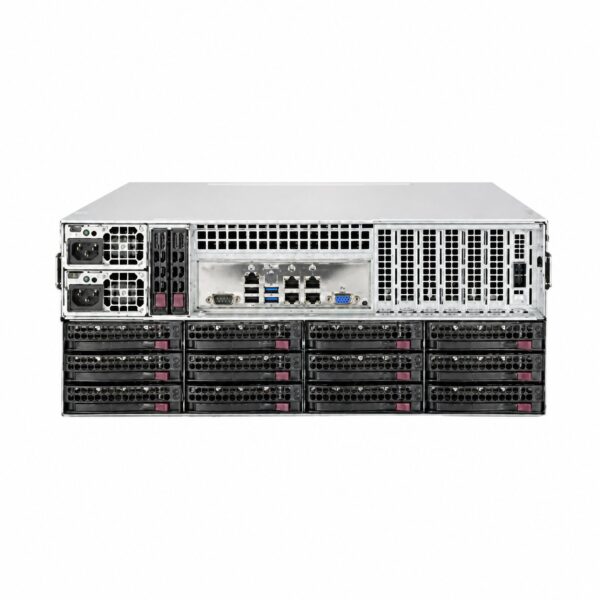

Storage Bays: 36x 3.5″ Hot-swap SAS3/SATA3 drive bays (24 Front + 12 Rear)
-
SAS Controller: Onboard Broadcom (LSI) 3008 SAS3 12Gb/s controller running in IT mode
-
Networking: Dual 10GBase-T LAN ports via Intel® X540 controller
-
Power Supply: 1280W Redundant Power Supplies (80 Plus Platinum certified)
Hardware Specifications
| Specification Category | Details |
| Product SKU | SSG-6048R-E1CR36L / SuperServer 6048R-E1CR36L |
| Motherboard | Super X10DRH-iT |
| Chassis Model | CSE-847BE1C-R1K28LPB |
| Processor / CPU |
• Dual Socket R3 (LGA 2011) • Intel® Xeon® E5-2600 v4 / v3 series (up to 22 Cores, 55MB Cache) • QPI speed up to 9.6 GT/s • Supports up to 145W TDP CPUs |
| Chipset | Intel® C612 Express Chipset |
| System Memory |
• 16x 288-pin DDR4 DIMM slots • Up to 2TB ECC 3DS LRDIMM / 512GB ECC RDIMM • Memory Speeds: 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM (1.2V) |
| SAS / Storage Controller | Broadcom / LSI 3008 12Gb/s SAS3 controller (IT Mode) |
| SATA / RAID | SATA3 (6Gbps) via Intel C612 chipset with RAID 0, 1, 5, 10 support |
| Drive Bays |
• 36x 3.5″ Hot-swap SAS3/SATA3 drive bays (24 Front + 12 Rear) • Hybrid drive option: 32x SAS3/SATA3 + 4x NVMe hybrid bays • Optional rear bays: 2x 2.5″ Hot-swap SATA drive bays |
| Backplane | SAS3/SATA3 single expander backplane |
| Expansion Slots |
• 1x PCI-E 3.0 x16 slot • 6x PCI-E 3.0 x8 slots (Slots 1 & 2 occupied by SAS controller and JBOD expansion port) |
| Networking & I/O Ports |
• 2x RJ45 10GBase-T Ethernet ports (Intel X540) • 1x Dedicated RJ45 IPMI LAN port • 2x USB 3.0 ports (rear) • 2x USB 2.0 ports (rear) • 1x VGA port • 1x Fast UART 16550 Serial port |
| Management | IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN support (ASPEED AST2400 BMC) |
| System Cooling | 7x 80mm middle heavy-duty PWM cooling fans |
| Power Supply |
1280W Redundant Power Supplies (80 Plus Platinum Level 95%+) • AC Input: 1000W Output @ 100-140V (12-8A), 1280W Output @ 180-240V (8-6A) |
Physical Dimensions & Weight
-
Height: 7.0″ (178 mm)
-
Width: 17.2″ (437 mm)
-
Depth: 27.5″ (699 mm)
-
Net Weight: ~65.5 lbs (29.7 kg)
-
Gross Weight: ~102.5 lbs (46.4 kg)
Environmental & Compliance
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Compliance: RoHS Compliant
