Supermicro SuperStorage SSG-6049P-E1CR36L
SYS-6049P-E1CR36L
Enterprise stock · tested · export documentation available
Supermicro SuperStorage SSG-6049P-E1CR36L
The Supermicro SuperStorage SSG-6049P-E1CR36L is a high-density 4U dual-socket storage server designed for corporate databases, enterprise storage solutions, high-performance computing (HPC), data centers, and iSCSI SAN environments.
Technical Specifications
Key Features
-
Key Applications: Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
-
Form Factor: 4U Rackmount (Chassis: CSE-847BE1C4-R1K23LPB)
-

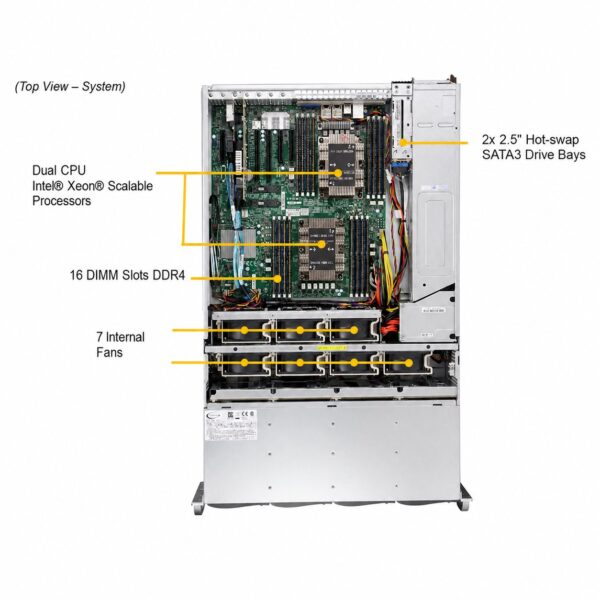

Motherboard: Super X11DPH-T
Processor & Memory
| Component | Specification |
| CPU Support | Dual Socket P (LGA 3647) |
| Supported Processors | 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors |
| CPU TDP & Cores | Supports CPU TDP 70W – 205W; Up to 28 Cores per processor |
| System Bus | 3 UPI links up to 10.4 GT/s |
| Memory Slots | 16 DIMM slots |
| Memory Capacity | Up to 4TB 3DS ECC DDR4-2933MHz RDIMM / LRDIMM |
| Memory Features | Supports Intel® Optane™ Persistent Memory (DCPMM) |
Storage Drive Bays & Controllers
| Feature | Specification |

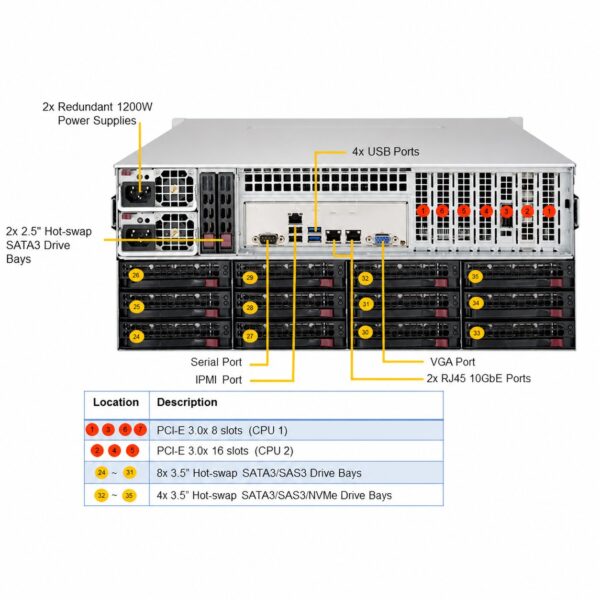

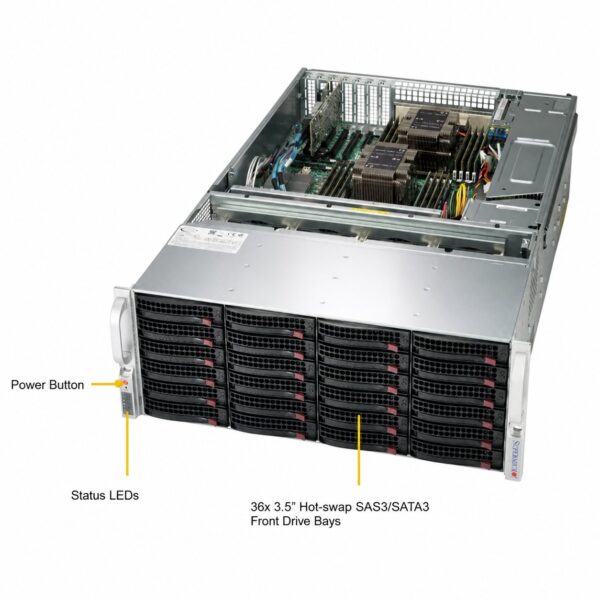

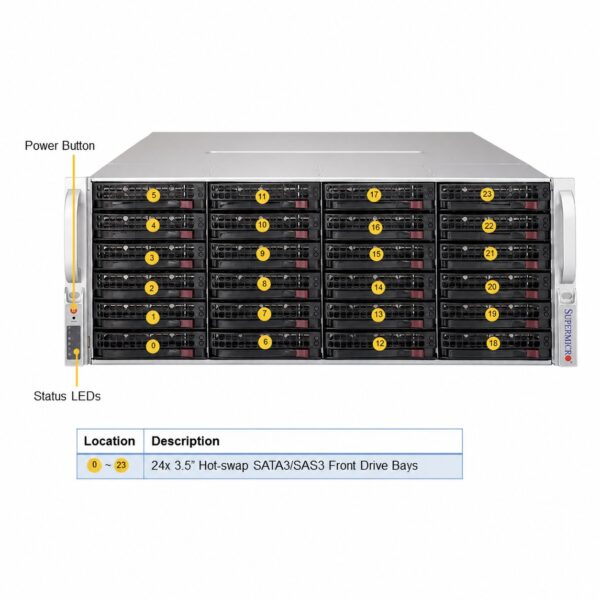

| Front/Rear Hot-Swap Bays | 36x Hot-swap 3.5″ SAS3/SATA3 drive bays (24 Front + 12 Rear) |
| Optional Drive Options | Up to 4 optional NVMe drives supported in 3.5″ bays |
| Rear 2.5″ Storage | 2x Rear Hot-swap 2.5″ SATA3 drive bays |
| M.2 NVMe Storage | 2x Onboard NVMe M.2 slots |
| SAS/SATA Controller | Broadcom 3008 SAS3 12Gb/s AOC (Host Bus Adapter) |
| Backplane | Expander-based single-expander SAS3/SATA3 backplane |
| Onboard SATA | SATA3 (6Gbps) via Intel C622 chipset with RAID 0, 1, 5, 10 support |
Expansion Slots & I/O Ports
-
PCI-Express Slots:
-
3x PCI-E 3.0 x16 slots
-
4x PCI-E 3.0 x8 slots (Slot 2 & Slot 3 occupied by Broadcom SAS controller and JBOD expansion card)
-
-
Network Controllers: Dual 10GBase-T RJ45 LAN ports (Intel X722 + PHY Intel X557)
-
Remote Management (IPMI): 1x Dedicated RJ45 IPMI 2.0 port with virtual media over LAN and KVM-over-LAN support
-
USB Ports: 4x USB 3.0 ports (Rear), 1x Type A
-
Video: 1x VGA port (ASPEED AST2500 BMC)
-
Serial Port: 1x Fast UART 16550 port / 1 Header
Physical & Environmental Specs
| Feature | Details |
| Height | 7″ (178mm) |
| Width | 17.2″ (437mm) |
| Depth | 27.5″ (699mm) |
| Gross Weight | 102.5 lbs (46.4 kg) |
| Net Weight | 65.5 lbs (29.7 kg) |
| System Cooling | 3x Hot-swap 8cm redundant PWM middle fans + 2x Hot-swap 8cm rear exhaust PWM fans |
| Power Supply | 1200W Redundant Power Supplies, 80 PLUS Titanium Level (96% efficiency) |
| System BIOS | 256Mb AMI UEFI Flash ROM |
