Name: Supermicro SuperServer SYS-5019P-MTR - SunSpike
SKU: SYS-5019P-MTR

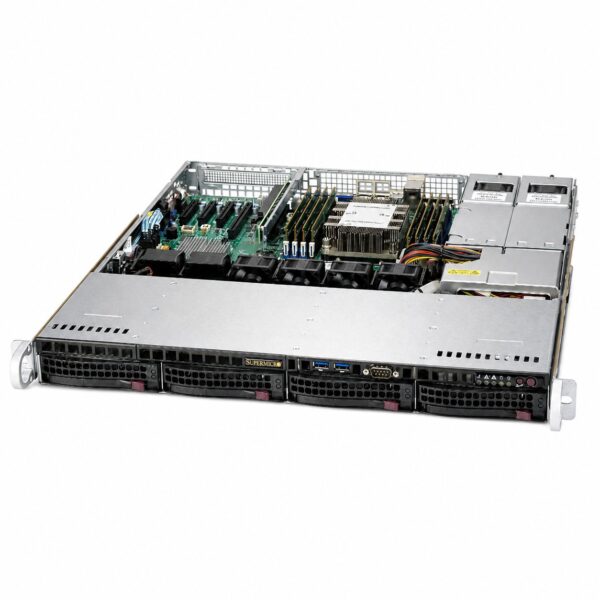

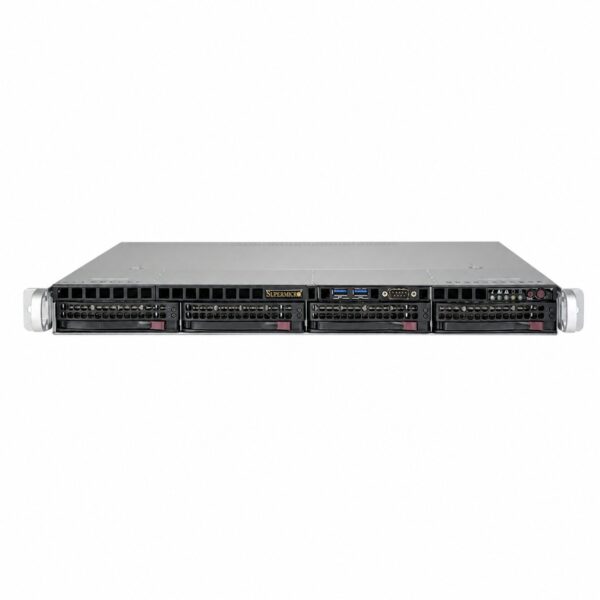

Supermicro SuperServer SYS-5019P-MTR Specifications

System Overview

The SuperServer SYS-5019P-MTR is a 1U rackmount barebone server platform engineered for high-density applications such as web hosting, virtualization (VM), application and data serving, and database applications. Powered by a single Intel Xeon Scalable processor with dual 10GbE networking and redundant Platinum power supplies, it offers enterprise-class reliability in a compact short-depth form factor.

Key Features

Processor Support: Single Socket P (LGA 3647) supporting 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors up to 205W TDP (Up to 28 Cores).
Memory Capacity: 8 DIMM slots supporting up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM.
Storage Bays: 4x 3.5″ Hot-swap SATA3 drive bays with hardware/software RAID support.
Network Connectivity: Dual 10GBase-T LAN ports via Intel® X722 + X557 controllers.
Remote Management: Dedicated IPMI 2.0 port with AST2500 BMC, virtual media, and KVM-over-LAN support.
Power & Efficiency: Redundant 400W 80 PLUS Platinum Certified power supplies.

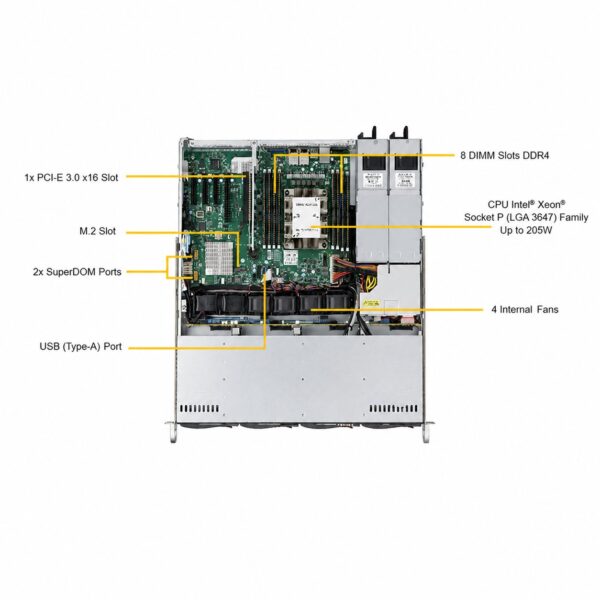

Detailed Technical Specifications

Category	Specification Details
Product SKU	SYS-5019P-MTR
Motherboard	Super X11SPi-TF
Chassis Model	CSE-813MFTQC-R407CB (1U Rackmount)
CPU Socket	Single Socket P (LGA 3647)
Supported Processors	2nd Gen Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors • Max TDP: 205W • Core Count: Up to 28 Cores
Chipset	Intel® C622 Chipset
Memory Slots	8x DDR4 DIMM slots
Memory Type & Speed	ECC DDR4 2933 / 2666 / 2400 / 2133 MHz RDIMM / LRDIMM / 3DS LRDIMM
Max Memory Capacity	Up to 2TB ECC 3DS LRDIMM / RDIMM

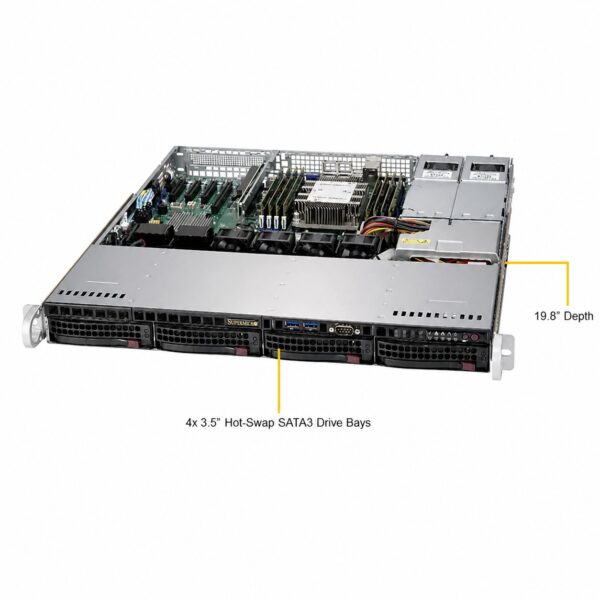

Drive Bays	• 4x 3.5″ Hot-swap SATA3 (6Gbps) drive bays • 1x M.2 NVMe/SATA SSD slot (Form factors: 2280 / 22110) • 2x SATA DOM (Disk-on-Module) ports • 1x Slim Optical Drive Bay (optional)
Storage Controller	SATA3 (6Gbps) via C622; RAID 0, 1, 5, 10 support
Expansion Slots	1x PCI-Express 3.0 x16 slot (Full-Height, Full-Length)
Network Controllers	Dual 10GBase-T RJ45 ports (Intel® X722 + X557)
Management	Integrated IPMI 2.0 with dedicated LAN RJ45, ASPEED AST2500 BMC video controller
Power Supply	Redundant 400W 80 PLUS Platinum Power Supplies (100–240V AC input, PMBus support)
Cooling System	4x 40x28mm heavy-duty PWM cooling fans
Form Factor	1U Rackmount
Dimensions (H x W x D)	1.7″ (43mm) x 17.2″ (437mm) x 19.85″ (503mm)
Weight	Net Weight: 17.6 lbs (8.0 kg) / Gross Weight: 30.4 lbs (13.8 kg)

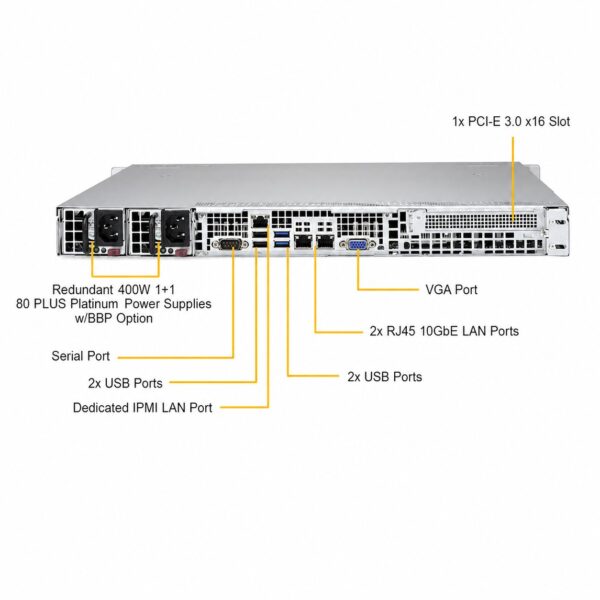

Input / Output (I/O) Interfaces

Network / Management:
- 2x 10GBase-T RJ45 LAN ports
- 1x Dedicated IPMI RJ45 LAN port
USB & Video:
- 2x USB 3.0 ports (Rear)
- 2x USB 2.0 ports (Rear)
- 1x VGA Port (ASPEED AST2500)
- 1x Serial (COM) port

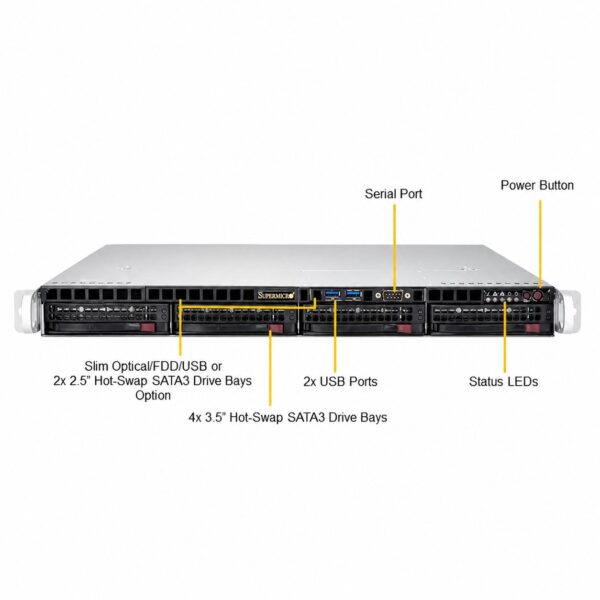

Front Panel Controls & Status Indicators:
- Buttons: Power On/Off button, System Reset button
- LEDs: Power LED, Hard Drive Activity LED, Network Activity LEDs, System Overheat / Info LED
