Supermicro SuperServer SYS-121H-TNR

Supermicro SuperServer SYS-121H-TNR

Product Overview

• Product Model: SuperServer SYS-121H-TNR

• Product Line: Hyper SuperServer (X13 Generation)

• Form Factor: 1U Rackmount

• Target Applications: Enterprise Server, Cloud Computing, Hyperconverged Infrastructure (HCI), High-Performance Computing (HPC), Financial Services, Virtualization

Technical Specifications

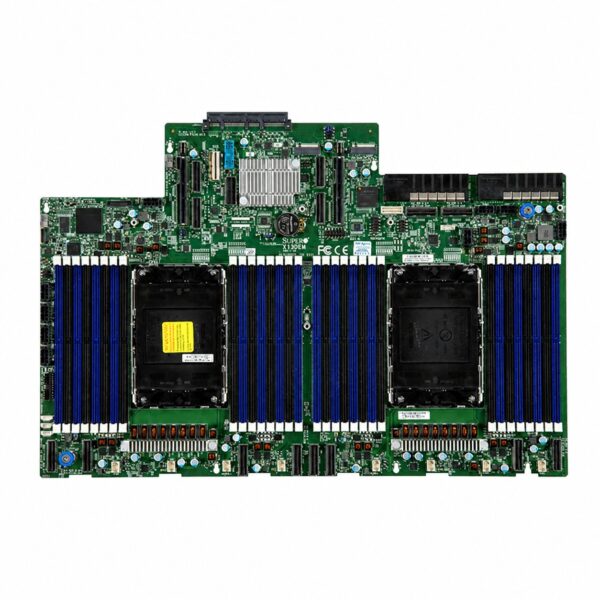

Processor & Chipset

• CPU: Dual Socket E (LGA-4677)

• Supported Processors: 5th Gen Intel® Xeon® Scalable Processors / 4th Gen Intel® Xeon® Scalable Processors

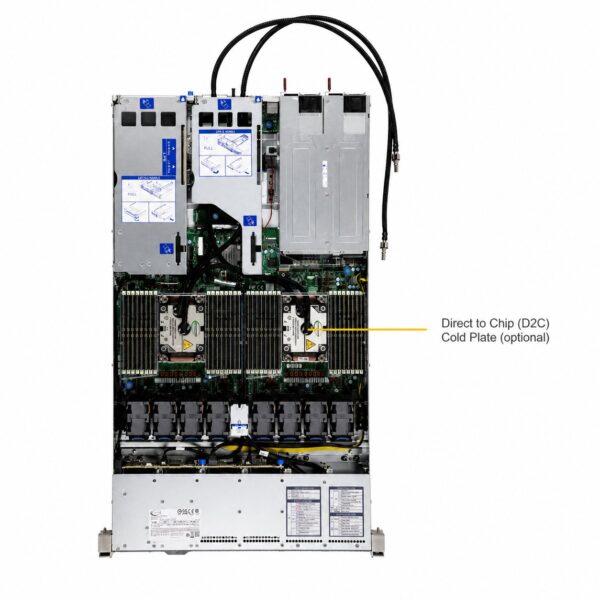

• Thermal Design Power (TDP): Up to 350W TDP per socket (Air Cooled / Liquid Cooling supported)

• Core Count: Up to 64 cores per processor (128 cores total)

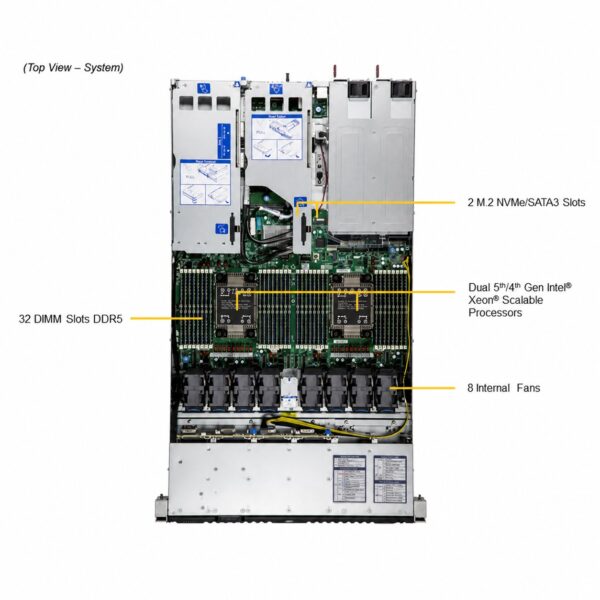

System Memory

• Memory Capacity: 32 DIMM slots across 8 channels per CPU

• Memory Type: DDR5 ECC Registered SDRAM (1DPC / 2DPC)

• Max Capacity: Up to 8TB DDR5 ECC RDIMM

• Memory Speed:

  • Up to 5600MT/s (5th Gen Intel Xeon)

  • Up to 4800MT/s (4th Gen Intel Xeon)

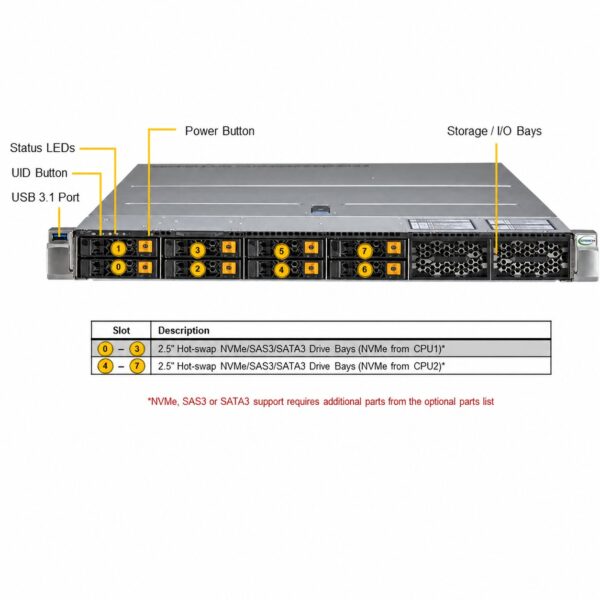

Storage & Drive Bays

• Hot-Swap Drive Bays: 8x or 12x 2.5″ Hot-swap drive bays

  • Default Configuration: 8x 2.5″ NVMe / SATA / SAS hybrid drive bays (SAS/SATA requires optional HBA/RAID controller)

• M.2 NVMe: 2x PCIe 4.0 x4 M.2 slots (M-Key, Form Factor 2280/2210) for OS boot/caching

Expansion Slots

• PCI Express Slots:

  • 2x PCIe 5.0 x16 Full-Height, Half-Length (FHHL) slots

  • 1x PCIe 5.0 x16 Advanced I/O Module (AIOM) slot (OCP 3.0 form factor compliant)

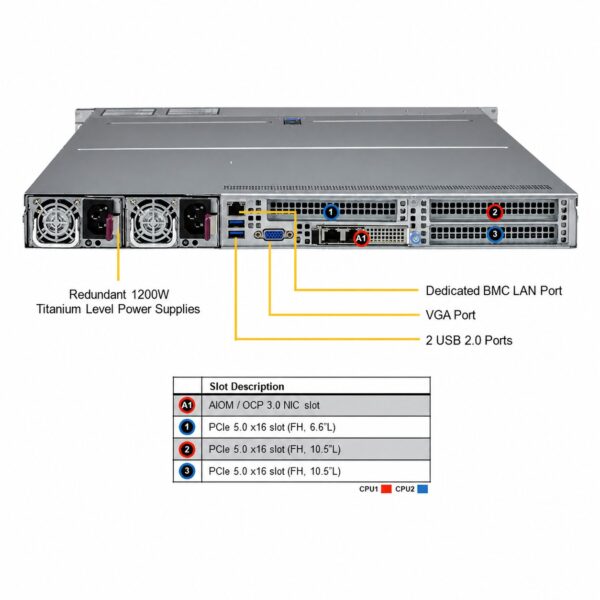

Networking & I/O Ports

• Network Controller: Flexible AIOM / OCP 3.0 networking card support (1GbE, 10GbE, 25GbE, 100GbE, 200GbE options)

• Management Port: 1x Dedicated RJ45 1GbE Remote Management LAN port

• Rear I/O Ports: 2x USB 3.0 ports, 1x VGA port, 1x Serial (COM) port

System Management

• BMC Chipset: ASPEED AST2600 BMC

• Management Features: IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

• Software Suite: Supermicro Out-of-Band (OOB) License, Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM)

Power & Cooling

• Power Supply Units: Redundant 860W / 1200W / 1600W Titanium Level (96%+ efficiency) AC Power Supplies

• System Fans: 8x heavy-duty 40mm counter-rotating fans with dynamic fan speed control

Physical Specifications

Parameter	Measurement
Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	29.1″ (739 mm)
Gross Weight	~48 lbs (21.8 kg)
Package Dimensions	24″ (W) x 8″ (H) x 38″ (D)
