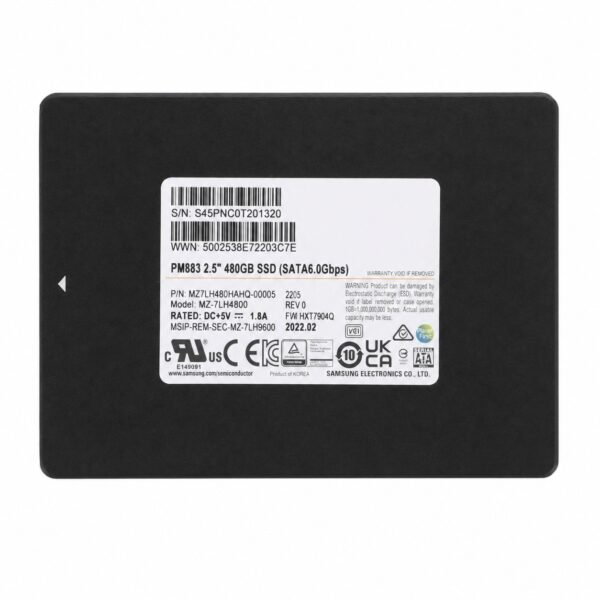

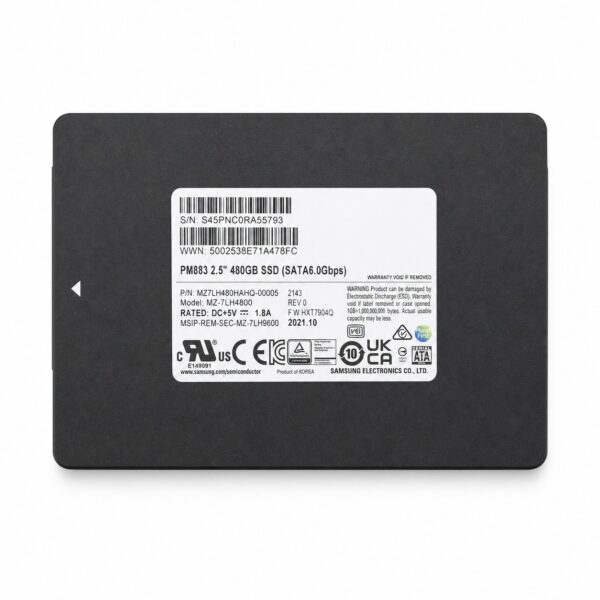

Samsung PM883 480GB Enterprise SSD (Model/PN: MZ7LH480HAHQ-00005)

Technical Specifications

General Information

• Manufacturer: Samsung Electronics

• Series: PM883

• Model Number: MZ7LH480HAHQ-00005

• Target Audience: Enterprise / Data Center

• Form Factor: 2.5-inch (7mm height)

• Interface: SATA 6.0 Gbps (SATA III, backward compatible with SATA 3.0 Gbps and 1.5 Gbps)

• Storage Capacity: 480 GB

• NAND Flash Memory: Samsung 3D V-NAND (TLC)

Performance Specs

• Sequential Read Speed: Up to 550 MB/s

• Sequential Write Speed: Up to 520 MB/s

• Random Read Speed (4KB): Up to 98,000 IOPS

• Random Write Speed (4KB): Up to 24,000 IOPS

Endurance & Reliability

• Endurance (TBW): ~683 TBW (Terabytes Written)

• Drive Writes Per Day (DWPD): 0.8 DWPD (over 5 years)

• MTBF (Mean Time Between Failures): 2,000,000 hours

• UBER (Uncorrectable Bit Error Rate): 1 sector per $10^{17}$ bits read

• Data Protection: End-to-End Data Protection, Power Loss Protection (PLP) via Tantalum Capacitors

Power Consumption & Thermal Features

• Active Read Power: ~2.3 W

• Active Write Power: ~3.6 W

• Idle Power: ~1.3 W

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Thermal Monitoring: Dynamic Thermal Guard (DTG) throttling protection
