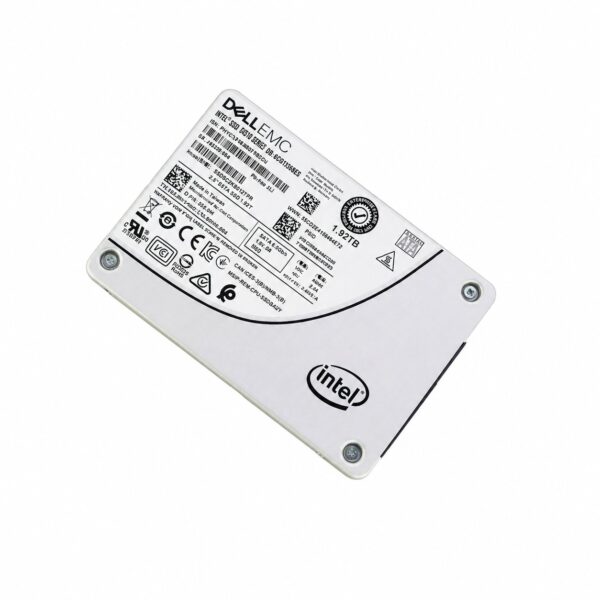

Intel SSD D3-S4510 Series (1.92TB, 2.5in SATA 6Gb/s) SSDSC2KG019T8

Intel® SSD D3-S4510 Series (1.92TB, 2.5in SATA 6Gb/s)

Model / Part Number: SSDSC2KG019T8 / SSDSC2KG019T801 / SSDSC2KG019T80101

1. Essential Specifications

• Brand / Product Family: Intel® SSD D3-S4510 Series

• Capacity: 1.92 TB (1920 GB)

• Form Factor: 2.5-inch, 7mm

• Interface: SATA 3.0 (6Gb/s)

• NAND Flash Type: 3D NAND, 64-layer, TLC

• Target Workload: Read-Intensive Enterprise / Data Center Applications

2. Performance

• Sequential Read Speed: Up to 560 MB/s

• Sequential Write Speed: Up to 510 MB/s

• Random Read (4KB): Up to 97,000 IOPS

• Random Write (4KB): Up to 35,000 IOPS

• Latency (Read / Write): 36 µs / 37 µs

3. Reliability & Endurance

• Endurance (TBW): 7.1 PBW (7,100 TB Written)

• Drive Writes Per Day (DWPD): ~1.0 DWPD (over 5 years)

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): $< 1 \text{ sector per } 10^{17} \text{ bits read}$

• Warranty: 5-Year Limited Warranty

4. Advanced Features & Technologies

• Enhanced Power Loss Data Protection: Integrated capacitors protect data in flight during unexpected power loss.

• End-to-End Data Protection: Ensures data integrity from the host system to the NAND storage and back.

• Hardware Encryption: AES 256-bit Hardware Encryption

• Temperature Monitoring: Internal thermal sensors prevent overheating via dynamic thermal throttling.

• SMART Diagnostics: Comprehensive S.M.A.R.T. feature support for drive health monitoring.

5. Physical & Environmental Specifications

• Dimensions: $100.45\text{ mm} \times 69.85\text{ mm} \times 7.0\text{ mm}$

• Weight: $< 68\text{ g}$

• Active Power Consumption: Typical 3.0 W

• Idle Power Consumption: Typical 1.0 W

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Vibration – Operating: 2.17 GRMS ($5\text{–}700\text{ Hz}$)

• Shock – Operating: 1000 G at 0.5 ms
