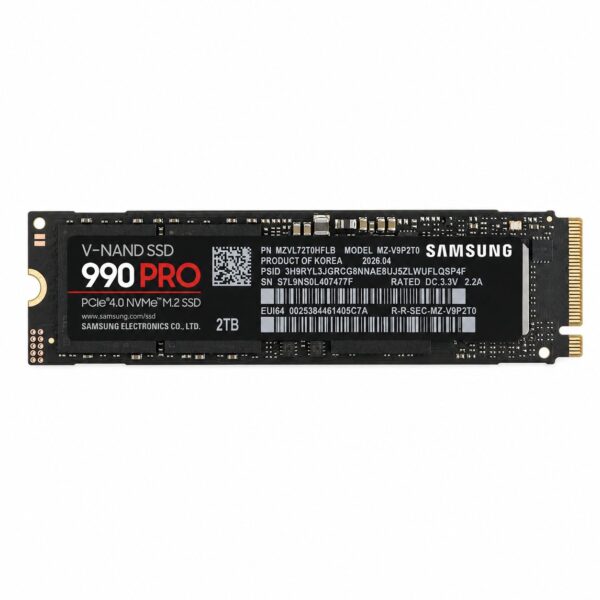

Samsung 990 PRO PCIe 4.0 NVMe M.2 SSD 2TB (2,000 GB)

Product Overview

• Product Name: Samsung 990 PRO PCIe 4.0 NVMe M.2 SSD

• Model Number (MPN): MZ-V9P2T0BW

• Capacity: 2TB (2,000 GB)

• Form Factor: M.2 (2280)

• Interface: PCIe Gen 4.0 x4, NVMe 2.0

• Heatsink: No (Standard model with heat spreader label)

Technical Specifications

Performance

• Sequential Read Speed: Up to 7,450 MB/s

• Sequential Write Speed: Up to 6,900 MB/s

• Random Read (4KB, QD32): Up to 1,400,000 IOPS

• Random Write (4KB, QD32): Up to 1,500,000 IOPS

• Random Read (4KB, QD1): Up to 22,000 IOPS

• Random Write (4KB, QD1): Up to 80,000 IOPS

Internal Hardware

• Controller: Samsung In-House Controller

• NAND Flash Memory: Samsung V-NAND 3-bit MLC (TLC)

• DRAM Cache Memory: 2GB Low Power DDR4 (LPDDR4)

Reliability & Endurance

• Endurance (TBW): 1,200 Terabytes Written

• Mean Time Between Failures (MTBF): 1.5 Million Hours

• Warranty: 5-Year Limited Warranty (or 1,200 TBW, whichever comes first)

Power Consumption & Thermal Management

• Average Power Consumption: 5.5 W (Active)

• Maximum Power Consumption: 8.5 W (Burst Mode)

• Idle Power Consumption: Max 55 mW

• Sleep Mode Power Consumption: Max 5 mW

• Thermal Control: Dynamic Thermal Guard (DTG) technology with nickel-coated controller and heat spreader label

Advanced Features

• TRIM Support: Supported

• S.M.A.R.T. Support: Supported

• GC (Garbage Collection): Auto Garbage Collection Algorithm

• Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal V2.0, MS eDrive (IEEE1667)

• Software Management: Samsung Magician Software

Physical Specifications

Parameter	Specification
Dimensions (W x H x D)	80.15 x 22.15 x 2.38 mm
Weight	Max 9.0 g
Operating Temperature	0°C to 70°C
Non-Operating Temperature	-40°C to 85°C
Operating Humidity	5% to 95% non-condensing
Shock Resistance	1,500 G & 0.5 ms (Half sine)
