IBM Emerson Power Supply / PSU 1925W for Power System P740 00FW422

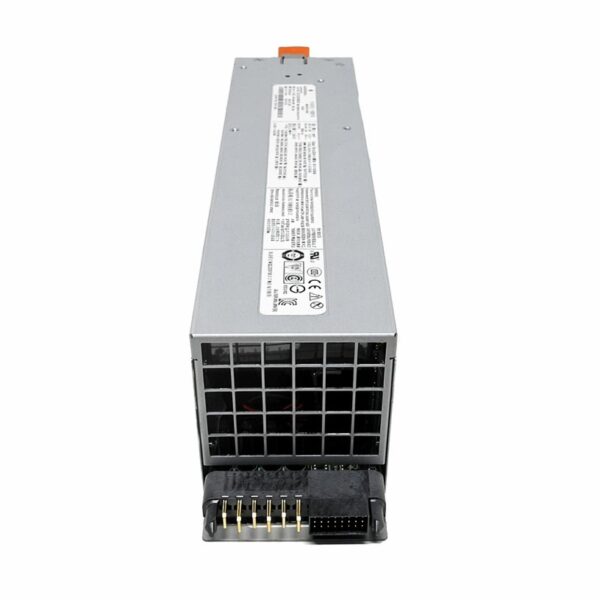

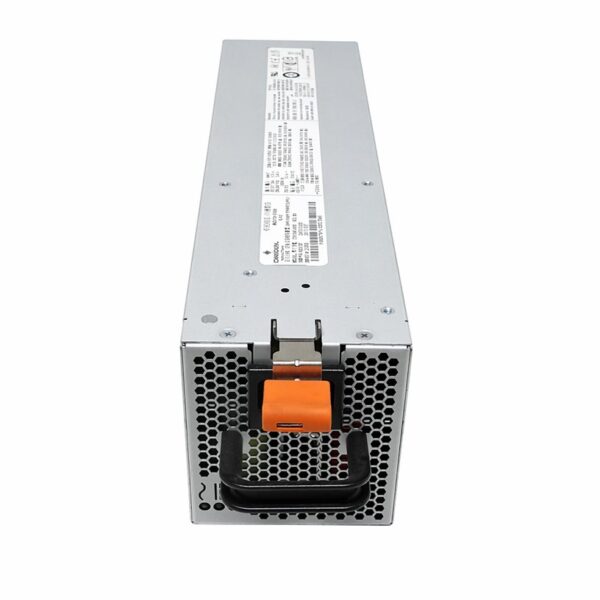

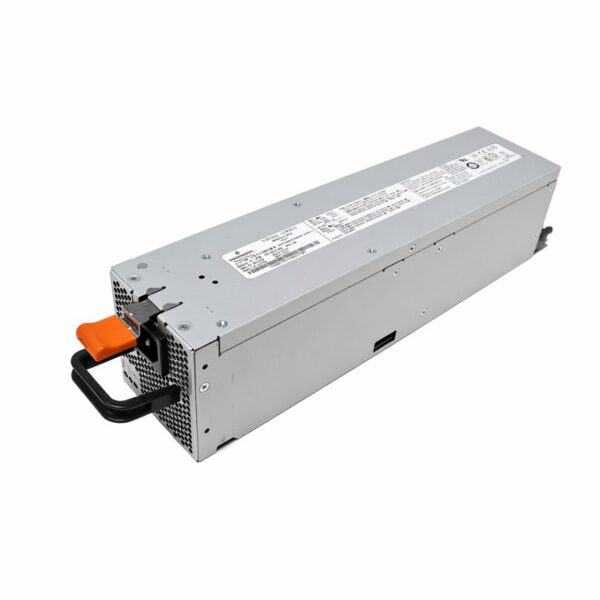

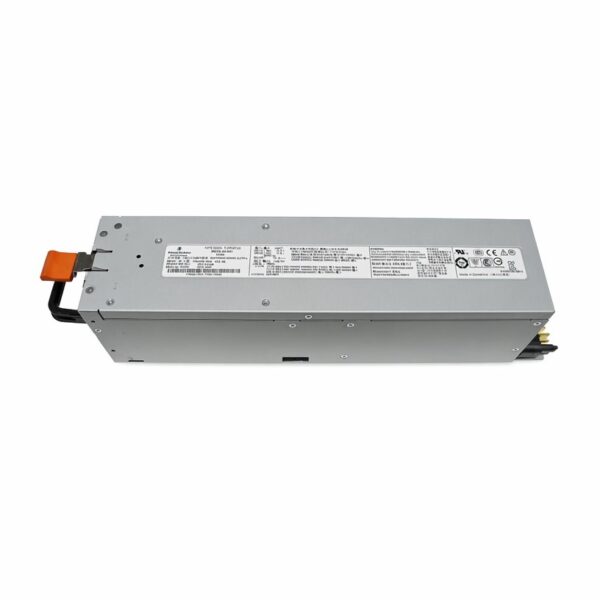

IBM / Emerson 1925W AC Power Supply Unit (PSU) (Part Number: 00FW422).

Technical Specifications

Parameter	Specification Details
Manufacturer	IBM / Emerson Network Power (Artesyn)
IBM Part Number (P/N)	00FW422
Emerson Model Number	7001599-J000
CCIN (Custom Card Identification Number)	2BED
Component Type	Server Power Supply
Form Factor	Hot-Swap / Plug-in Module
Device Category	Base and Redundant AC Power Supply
Physical Weight	2.80 kg (Approx. 5.0 lbs)

Input / Output Specs & Power Derating

Because this PSU is engineered for global enterprise grids, its output wattage depends heavily on the input voltage ($V_{AC}$ or $V_{DC}$) of the datacenter rack:

1. Input Ratings

• AC Input Voltage: 100–240 $V_{AC}$ (Auto-Sensing)

• AC Input Current: 12A (at lower range) / 10A (at higher range)

• Frequency: 50 / 60 Hz

• DC Input Voltage: 200 $V_{DC}$

• DC Input Current: 10A

2. Output & Wattage Matrix

Depending on the electrical environment, the power output scales as follows:

• At 200–240 $V_{AC}$ Grid (High-Line AC):

  • Max Output Power: $1925\text{ W}$

  • Main Rails: $+12.3\text{ V}$ @ $150.7\text{ A}$ Max

  • Standby Rail: $+12.0\text{ Vcs}$ @ $6.0\text{ A}$ Max

• At 200 $V_{DC}$ Grid (DC High-Line):

  • Max Output Power: $1400\text{ W}$

  • Main Rails: $+12.3\text{ V}$ @ $107.82\text{ A}$ Max

  • Standby Rail: $+12.0\text{ Vcs}$ @ $6.0\text{ A}$ Max

• At 100–127 $V_{AC}$ Grid (Low-Line AC):

  • Max Output Power: $1025\text{ W}$ (De-rated)

  • Main Rails: $+12.3\text{ V}$ @ $77.48\text{ A}$ Max

  • Standby Rail: $+12.0\text{ Vcs}$ @ $6.0\text{ A}$ Max

Compatibility & System Integration

This unit is designed to integrate into high-density enterprise architecture and mission-critical hardware.

Supported Systems

• IBM Power Systems (POWER7 / POWER7+):

  • Power 740 (Type 8205-E6B, 8205-E6C, 8205-E6D)

  • Power 720 (Type 8202-E4B, 8202-E4C, 8202-E4D)

• IBM System Storage:

  • DS8870 Enterprise Storage Systems (utilizes these units in specific power distribution chassis)

Alternative Part Numbers & Cross-References (FRU/PN)

In secondary markets and maintenance chains, the following part numbers are functionally equivalent, drop-in replacements for 00FW422:

• 00E7237

• 00E8277

• 00E7185

• 00J0439
