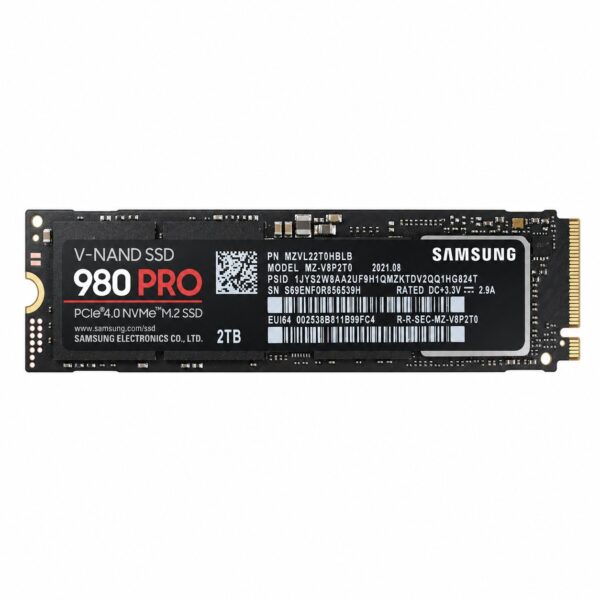

Samsung 980 PRO PCIe 4.0 NVMe M.2 SSD 2TB

Product Overview

• Product Name: Samsung 980 PRO PCIe 4.0 NVMe M.2 SSD

• Model Code: MZ-V8P2T0BW

• Capacity: 2TB (2,000 GB)

• Form Factor: M.2 (2280)

• Interface: PCIe Gen 4.0 x4, NVMe 1.3c

• Target Audience: High-performance PC Gaming, Data-intensive Applications, Heavy Graphics & Video Editing

Technical Specifications

Performance

• Sequential Read Speed: Up to 7,000 MB/s

• Sequential Write Speed: Up to 5,000 MB/s

• Random Read (4KB, QD32): Up to 1,000,000 IOPS

• Random Write (4KB, QD32): Up to 1,000,000 IOPS

• Random Read (4KB, QD1): Up to 22,000 IOPS

• Random Write (4KB, QD1): Up to 60,000 IOPS

Key Hardware & Features

• In-House Controller: Samsung Elpis Controller

• NAND Flash Memory: Samsung V-NAND 3-bit MLC (TLC)

• Cache Memory: Samsung 2GB Low Power DDR4 SDRAM

• Trim Support: Supported

• S.M.A.R.T Support: Supported

• GC (Garbage Collection): Auto Garbage Collection Algorithm

• Encryption Support: AES 256-bit Encryption (Class 0), TCG/Opal V2.0, MS eDrive (IEEE1667)

• Device Sleep Mode Support: Yes

Power & Reliability

• Average Power Consumption: 6.1 W (Active Read/Write average)

• Max Power Consumption: 7.2 W (Burst Mode)

• Idle Power Consumption: Max. 35 mW

• Power Consumption (Device Sleep): Max. 5 mW

• Mean Time Between Failures (MTBF): 1.5 Million Hours

• Endurance (TBW): 1,200 TBW (Total Bytes Written)

• Operating Temperature: 0°C to 70°C (32°F to 158°F)

• Shock Resistance: 1,500 G & 0.5 ms (Half sine)

Thermal Control & Software

• Thermal Management: Nickel coating on controller, heat spreader label, and Dynamic Thermal Guard (DTG) technology.

• Management Software: Samsung Magician Software (for drive monitoring, optimization, firmware updates, and data security).

Physical Dimensions & Weight

• Dimensions (W x H x D): 80.15 x 22.15 x 2.38 mm (3.15 x 0.87 x 0.09 inches)

• Weight: Max 9.0 g (0.32 oz)
