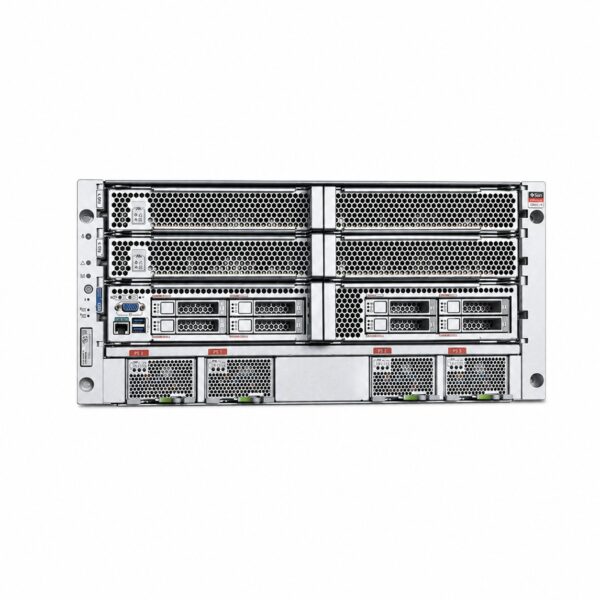

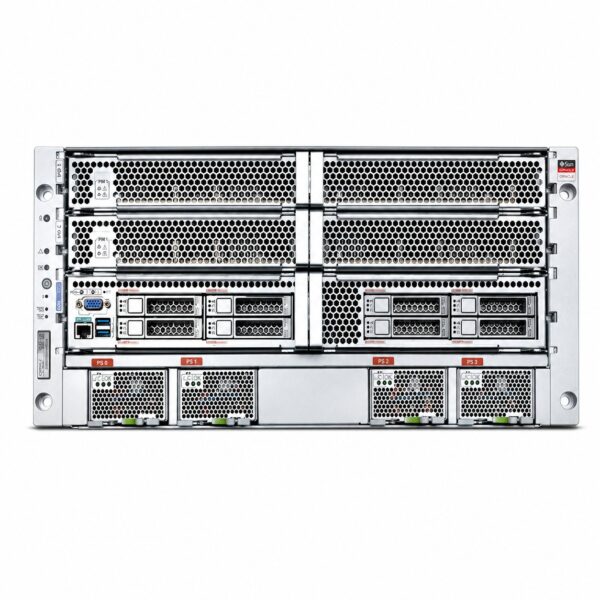

Oracle SPARC T7-4 Server
Oracle SPARC T7-4 Server
| Part No. | t7-4 |
|---|---|
| Manufacturer | Oracle |
| End of Life? | No |
| Preceeded By | T5-4 |
| Rack Units | 5 |
| Height | 215 |
| Width | 445 |
| Depth | 835 |
| Weight [Kg] | 84.80 |
| Specification | UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Scheme with all country differences |
| CPU Socket(s) | 2–4 |
| Compatible CPU(s) | SPARC M7 processor |
| Max CPU Clk Spd | 4.13 GHz |
| CPU Cache | Level 1: 16 KB instruction and 16 KB data per core; Level 2: 256 KB L2 I$ per four cores, 256 KB L2 D$ per core pair; Level 3: 64 MB L3$ on chip |
| Max # Thread(s) | Two hundred fifty-six threads per processor (eight threads per core) |
| Max # Core(s) | Up to 32 per CPU |
| Memory Slot(s) | Sixteen dual inline memory module ( DIMM ) slots per processor supporting half and fully populated memory configurations using 16 or 32 GB DDR4 DIMMs |
| Memory Expansion | 2 TB maximum memory configuration with a four processor system and 32 GB DIMMs; 1 TB maximum memory configuration with a two processor system and 32 GB DIMMs |
| Drive Bays | Up to eight 600 GB or 1200 GB 2.5 in. SAS drives; Optional internal storage may be installed within the standard drive bays: 400 GB SSD drives, maximum of eight; 1.6 TB NVMe drives, maximum of eight |
| Supported OS | Oracle recommends Oracle Solaris 11.3 or later for enhanced performance and functionality, including features enabled by Software in Silicon technology. |
| USB Port(s) | four external USB 3.0 (two front, two rear) |
| PCI Slot(s) | sixteen low-profile PCIe 3.0 slots, each accessed via a hot-plug carrier (eight x8 and eight x16) slots |
| Serial Ports | one RJ45 serial management port; one console 10/100 |
| LAN Socket(s) | four 10 GbE (100 Mbps/1 Gbps/10 Gbps), full duplex only, auto-negotiating |
| Standard | The SPARC T7-4 server comes with a one-year warranty. |
| Optional | With Oracle Premier Support, you’ll get the services you need to maximize the return on your investment in Oracle’s SPARC server. Complete system support includes 24/7 hardware service, expert technical support, proactive tools, and updates to Oracle Solaris, Oracle VM, and integrated software (such as firmware) — all for a single price. Contact BSI for more information. |
