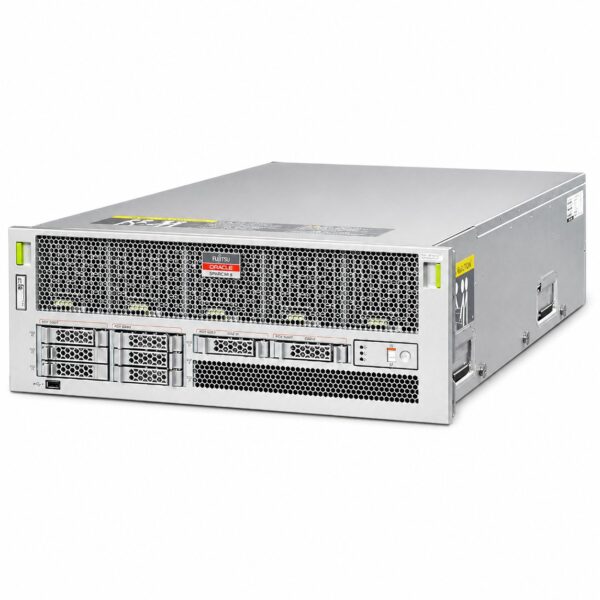

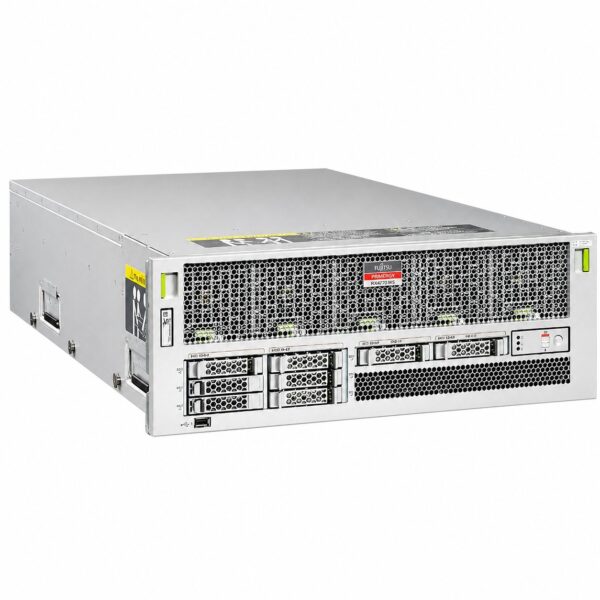

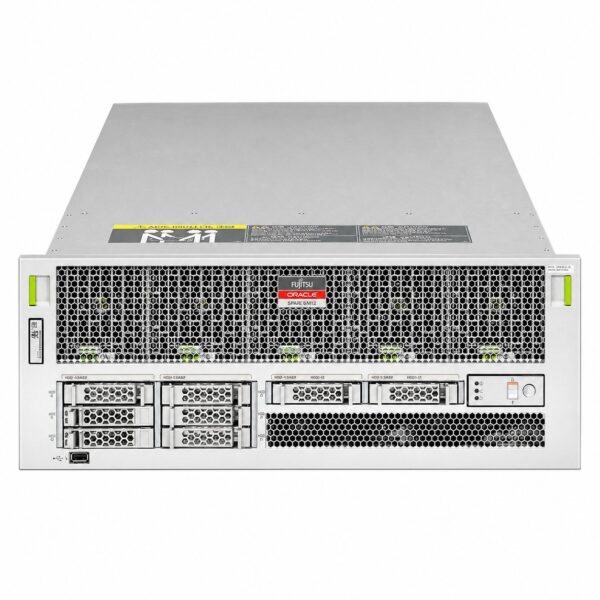

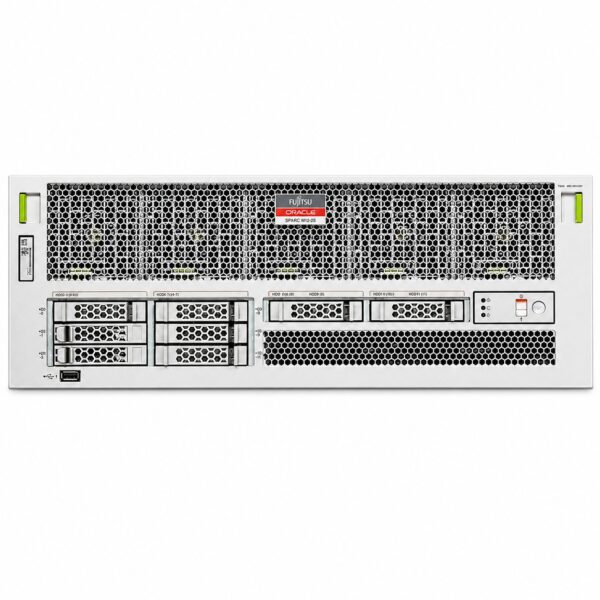

Fujitsu M10-4S Server
Fujitsu M10-4S Server
| Part No. | 7106198 |
|---|---|
| Manufacturer | Fujitsu |
| End of Life? | No |
| Height | 175 |
| Width | 440 |
| Depth | 810 |
| Weight [Kg] | 60.00 |
| CPU Socket(s) | As many as 4 CPUs: 1-unit configuration; 16 CPUs: 4-unit configuration; 64 CPUs: 16-unit configuration |
| Compatible CPU(s) | SPARC64 X 16-core processors, SPARC V9 architecture, ECC-protected |
| Max CPU Clk Spd | 3.0 GHz |
| CPU Cache | L1: 64 K data cache and 64 K instruction cache L2: 24 MB |
| Max # Thread(s) | Up to 2,048 per System (16-unit) |
| Max # Core(s) | Up to 1,024 per System (16-unit) |
| Memory Capacity | Up to 32 TB |
| Memory Expansion | Up to 2 TB per unit, with 32 GB DIMM: 1-unit configuration Up to 8 TB per unit, with 32 GB DIMM: 4-unit configuration Up to 32 TB per unit, with 32 GB DIMM: 16-unit configuration |
| Drive Bays | As many as eight 600 GB internal 2.5 in. SAS HDDs or 200 GB SAS SSDs (per Unit) |
| Capacity | 4.8 TB (per Unit) |
| HDD Suitability | SAS HDDs or SSDs |
| Supported OS | Oracle Solaris 10; Oracle Solaris 11 |
| USB Port(s) | 2-port USB per unit |
| PCI Slot(s) | 8 PCI Express 3.0 short, low-profile slots (eight lanes): 1-unit configuration; 32 PCI Express 3.0 short, low-profile slots (eight lanes): 4-unit configuration; 128 PCI Express 3.0 short, low-profile slots (eight lanes): 16-unit configuration; Up to 928 PCI Express slots with optional PCI expansion unit |
| LAN Socket(s) | 4-port GbE |
