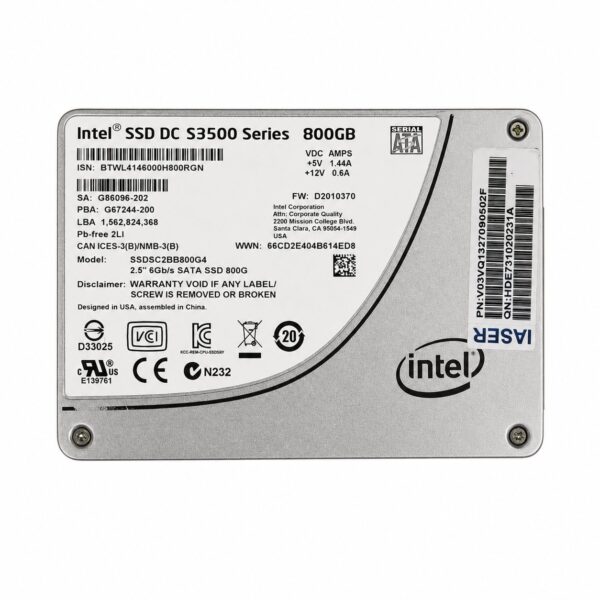

Intel SSD DC S3500 Series SSDSC2BB800G4

Intel® SSD DC S3500 Series — 800GB Specifications

Product Brief: Built for data center and cloud computing environments, the Intel® SSD DC S3500 Series delivers high read throughput and consistent latency combined with enhanced power-loss data protection.

Core Specifications

• Brand / Line: Intel® SSD DC S3500 Series

• Model Number: SSDSC2BB800G4

• Capacity: 800 GB

• Form Factor: 2.5-inch, 7mm height

• Interface: SATA 6.0 Gb/s (SATA III, backwards compatible with SATA 3.0 Gb/s & 1.5 Gb/s)

• NAND Flash Memory: 20nm Intel® Multi-Level Cell (MLC) NAND Flash

• Controller: Intel® 3rd Generation SATA Controller

Performance

Metric	Specification
Sequential Read	Up to 500 MB/s
Sequential Write	Up to 450 MB/s
Random Read (4KB)	Up to 75,000 IOPS
Random Write (4KB)	Up to 11,500 IOPS
Read Latency	50 µs (typical)
Write Latency	65 µs (typical)

Reliability & Endurance

• Endurance Rating (TBW): 450 Terabytes Written (TBW)

• Drive Writes Per Day (DWPD): 0.3 DWPD (over 5 years)

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): 1 sector per $10^{17}$ bits read

• Data Protection:

  • Enhanced Power Loss Data Protection (capacitors onboard)

  • End-to-End Data Protection

  • Hardware Encryption: AES 128-bit

Electrical & Physical Specifications

• Power Consumption:

  • Active: Up to 5.2 W

  • Idle: 650 mW

• Operating Temperature: 0°C to 70°C

• Non-Operating Temperature: -55°C to 95°C

• Shock (Operating / Non-Operating): 1,000 G (0.5 ms)

• Vibration (Operating): 2.17 GRMS (5–700 Hz)

• Weight: Up to 72 grams
