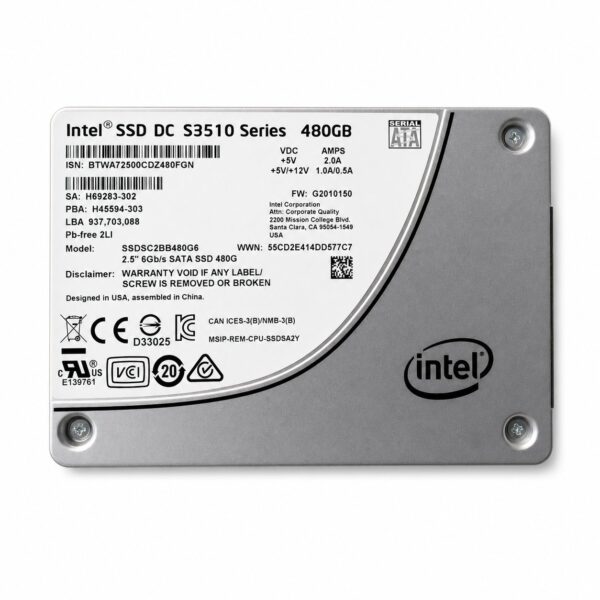

Intel SSD DC S3510 Series SSDSC2BB480G6

Technical Specifications

General Specifications

• Brand / Manufacturer: Intel®

• Product Line: Intel® SSD DC S3510 Series

• Model Code: SSDSC2BB480G6

• Target Audience: Data Center / Enterprise Server Storage

• Capacity: 480 GB

• Form Factor: 2.5-inch, 7mm height

• Interface: SATA III (6.0 Gb/s)

• NAND Flash Memory: 16nm MLC (Multi-Level Cell)

Performance Specs

• Sequential Read Speed: Up to 500 MB/s

• Sequential Write Speed: Up to 440 MB/s

• Random Read (8GB Span, 4K): Up to 68,000 IOPS

• Random Write (8GB Span, 4K): Up to 10,200 IOPS

• Latency (Read / Write): 55 µs / 65 µs

Reliability & Endurance

• Endurance Rating (TBW): 275 TBW (Terabytes Written)

• Drive Writes Per Day (DWPD): ~0.3 DWPD (Over 5 years)

• Mean Time Between Failures (MTBF): 2,000,000 Hours

• Uncorrectable Bit Error Rate (UBER): $< 1 \text{ sector per } 10^{17} \text{ bits read}$

• Power Loss Data Protection (PLP): Yes (Enhanced Power Loss Data Protection with onboard capacitors)

• Hardware Encryption: AES 256-bit

Power Consumption

• Active Power Consumption: ~4.8 W

• Idle Power Consumption: ~0.6 W

Physical & Environmental

• Weight: Up to 68 grams

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Non-Operating Temperature: $-55^\circ\text{C}$ to $95^\circ\text{C}$

• Shock Resistance (Operating / Non-Operating): 1,000 G (at 0.5 ms)
