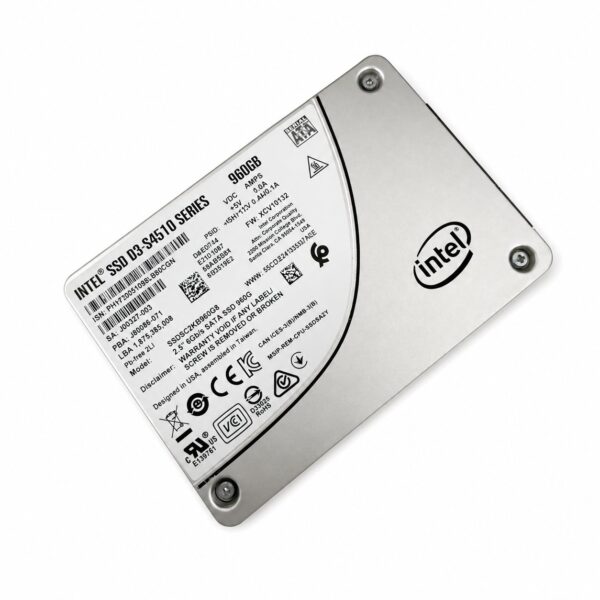

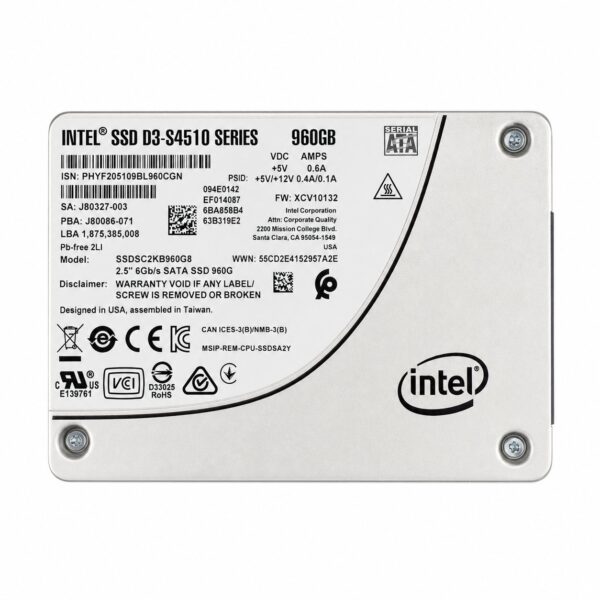

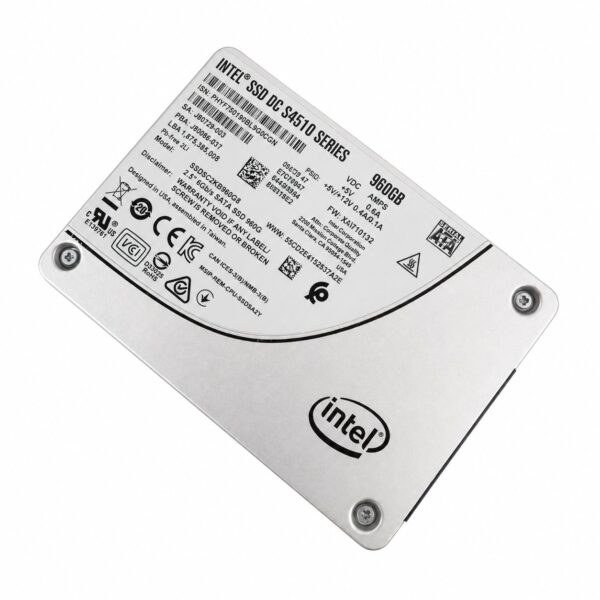

Intel® SSD D3-S4510 Series (960GB, 2.5in SATA 6Gb/s) SSDSC2KB960G8

Intel® SSD D3-S4510 Series (960GB, 2.5in SATA 6Gb/s)

Model / Part Number: SSDSC2KB960G8 / SSDSC2KB960G801

Code Name: Products formerly Youngsville Refresh

1. Essential Specifications

• Brand / Product Family: Intel® SSD D3-S4510 Series

• Capacity: 960 GB

• Form Factor: 2.5-inch, 7mm

• Interface: SATA 3.0 (6Gb/s)

• NAND Flash Type: 3D TLC NAND (64-Layer)

• Target Workload: Read-Intensive Enterprise / Data Center Applications

2. Performance

• Sequential Read Speed: Up to 560 MB/s

• Sequential Write Speed: Up to 510 MB/s

• Random Read (4KB): Up to 95,000 IOPS

• Random Write (4KB): Up to 36,000 IOPS

• Latency (Read / Write): 36 µs / 37 µs

3. Reliability & Endurance

• Endurance (TBW): 3.4 PBW (3,400 TB Written)

• Drive Writes Per Day (DWPD): ~1.9 DWPD (over 5 years)

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): $< 1 \text{ sector per } 10^{17} \text{ bits read}$

• Warranty: 5-Year Limited Warranty

4. Advanced Features & Technologies

• Enhanced Power Loss Data Protection: Integrated power-loss protection circuit protects data in transit during sudden power drop.

• End-to-End Data Protection: Prevents silent data corruption across internal drive pathways.

• Hardware Encryption: AES 256-bit Hardware Encryption (Self-Encrypting Drive / SED support)

• Temperature Monitoring & Logging: Thermal management features to maintain drive integrity under high temperatures.

• SMART Diagnostics: Full S.M.A.R.T. command set for proactive health monitoring.

5. Physical & Environmental Specifications

• Dimensions: $100.45\text{ mm} \times 69.85\text{ mm} \times 7.0\text{ mm}$

• Weight: $< 68\text{ g}$

• Active Power Consumption: Typical 3.0 W

• Idle Power Consumption: Typical 1.0 W

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Vibration – Operating: 2.17 GRMS ($5\text{–}700\text{ Hz}$)

• Shock – Operating: 1000 G at 0.5 ms
