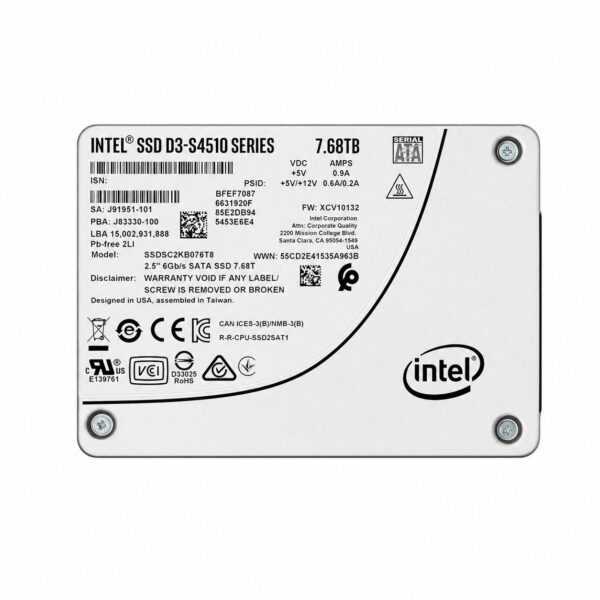

Intel SSD D3-S4510 Series (7.68TB, 2.5in SATA 6Gb/s) SSDSC2KB076T8

Intel® SSD D3-S4510 Series (7.68TB, 2.5in SATA 6Gb/s)

Overview

The Intel® SSD D3-S4510 Series is optimized for server storage and enterprise cloud environments. Built on 64-layer Intel® 3D NAND technology, it is designed to replace legacy hard disk drives (HDDs) to reduce operational costs, increase read-intensive workload efficiency, and improve overall system reliability.

Key Specifications

Feature	Details
Model Number	SSDSC2KB076T8
Capacity	7.68 TB
Form Factor	2.5-inch (7mm)
Interface	SATA 3.0 (6 Gb/s)
NAND Flash Memory	3D NAND, TLC
Lithography Type	64-Layer 3D NAND

Performance

• Sequential Read: Up to 560 MB/s

• Sequential Write: Up to 510 MB/s

• Random Read (4KB): Up to 97,000 IOPS

• Random Write (4KB): Up to 35,000 IOPS

• Read Latency: 36 µs (typical)

• Write Latency: 36 µs (typical)

Reliability & Endurance

• Endurance Rating (Lifetime Writes): Up to 14.4 PBW (Petabytes Written)

• Drive Writes Per Day (DWPD): ~1.0 DWPD (5 years)

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): $< 1 \text{ sector per } 10^{17} \text{ bits read}$

• Warranty: 5 Years

Power Consumption

• Active Power (Write): ~4.2 W

• Idle Power: ~1.1 W
