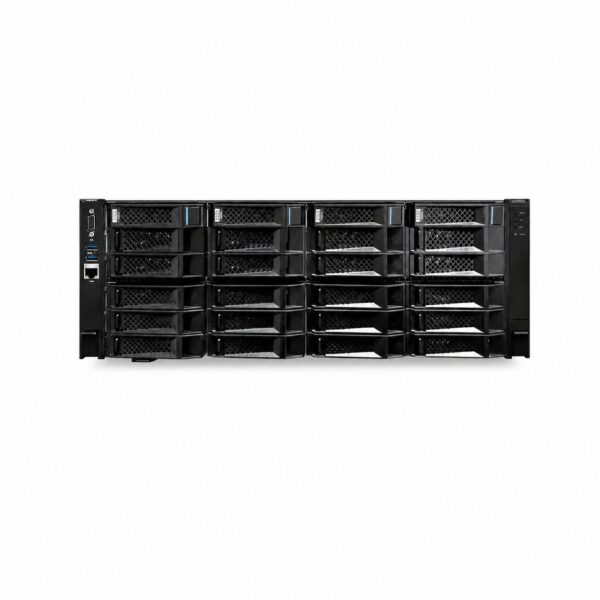

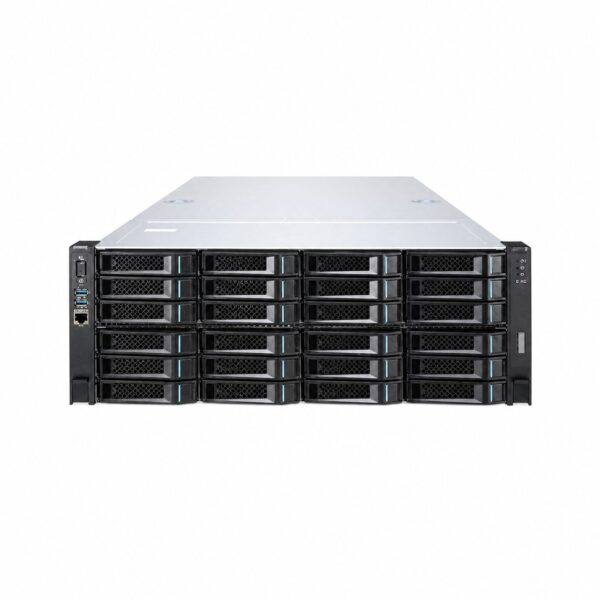

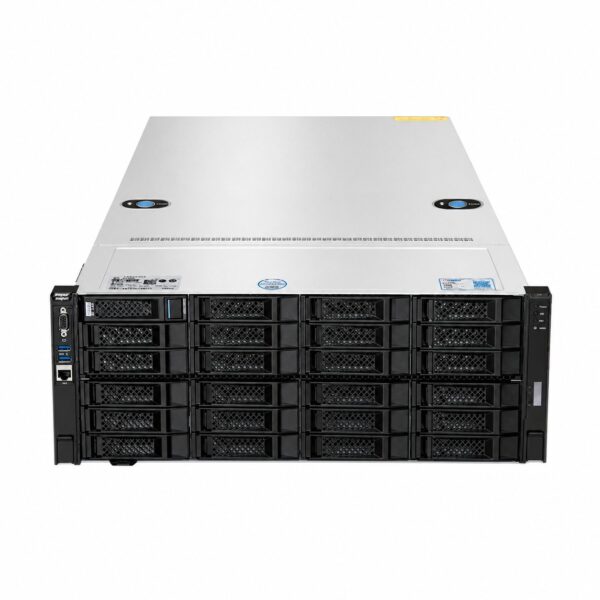

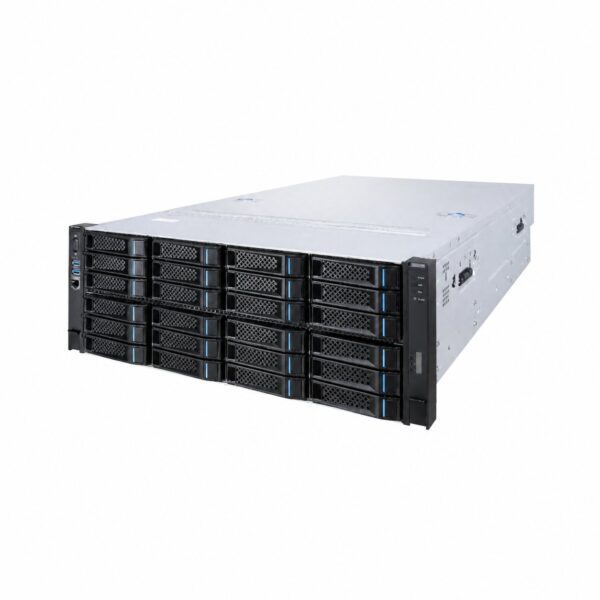

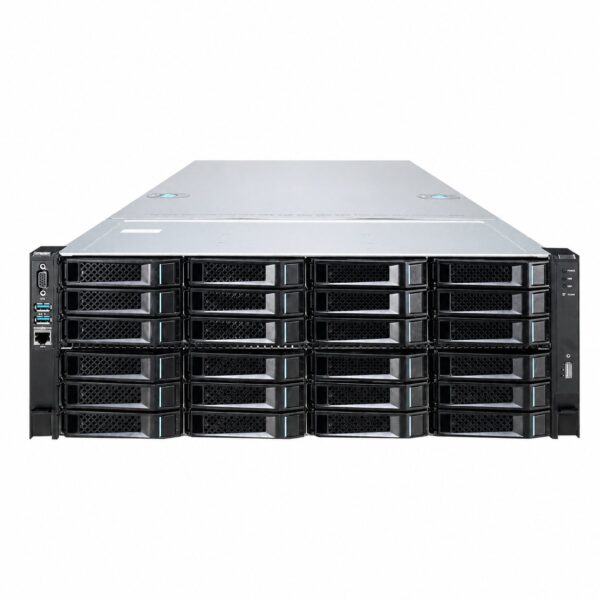

Inspur NF8480M5 4U Rackmount Server
NF8480M5
Enterprise stock · tested · export documentation available
Inspur NF8480M5 Product Overview
The Inspur NF8480M5 is a high-end 4U 4-socket enterprise rack server designed for mission-critical workloads, in-memory databases (such as SAP HANA), ERP/CRM systems, large-scale virtualization, and cloud infrastructure. Built on the Intel® Xeon® Scalable Processor platform, it features high compute density, flexible PCIe expansion, and robust RAS (Reliability, Availability, and Serviceability) features.
Technical Specifications Sheet
| Feature Category | Detailed Specification |
| Model | Inspur NF8480M5 |
| Form Factor | 4U Rackmount Server |
| Processor |
• 2 or 4 Intel® Xeon® Scalable Processors (1st Gen Skylake / 2nd Gen Cascade Lake) • Supports Intel® Xeon® Platinum, Gold, and Silver series • Up to 28 cores per processor / Supports TDP up to 205W • Interconnected via Intel® Ultra Path Interconnect (UPI) up to 10.4 GT/s |
| Chipset | Intel® C620 Series Chipset (Lewisburg) |
| Memory |
• 48 x DDR4 DIMM slots (6 memory channels per CPU, 2 DIMMs/channel) • Speed: Up to DDR4 2666 / 2933 MT/s • Memory Types: ECC RDIMM, LRDIMM, NVDIMM, and Intel® Optane™ Persistent Memory • Maximum Capacity: Up to 6TB |
| Drive Bays & Storage |
• Front Drive Bays: Up to 24 x 2.5″ / 3.5″ SAS/SATA/NVMe HDDs or SSDs • Internal Storage: 2 x onboard M.2 SSD slots + 2 x TF (microSD) card slots |
| Storage Controller |
• Onboard SATA controller • Optional 12Gb/s SAS/SATA/NVMe HBA or RAID controllers (e.g., LSI / Inspur 12G RAID Cards supporting RAID 0, 1, 5, 6, 10, 50, 60 with SuperCap cache protection) |
| PCIe Expansion |
• Up to 16 x PCIe 3.0 expansion slots • Supports multiple standard PCIe Riser configurations (x8 and x16 options) |
| Network Connectivity |
• 1 x OCP Mezzanine Card slot (supports 1GbE, 10GbE, 25GbE, 40GbE, MultiHost NICs) • Dedicated 1GbE RJ45 IPMI management port |
| System Management |
• Integrated Inspur Intelligent Management System (BMC Controller) • Supports IPMI 2.0, KVM-over-IP, Virtual Media, Redfish, SNMP, Web GUI • Front panel OLED LCD diagnostic display (monitors power, ambient temp, IP/MAC, error codes) |
| I/O Ports |

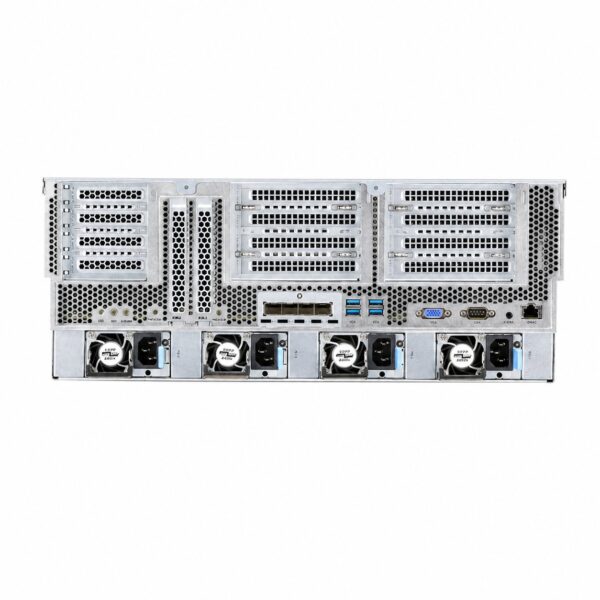

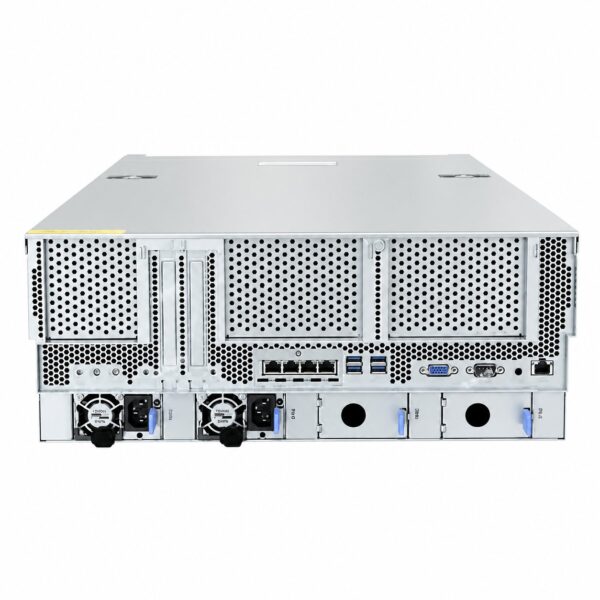

• Front: 2 x USB 3.0, 1 x VGA, 1 x RJ45 Serial, OLED Display, System status LEDs • Rear: 4 x USB 3.0, 1 x VGA, 1 x Dedicated Management Port, 1 x System Serial Port |
| Power Supply |
• Hot-swappable Platinum / Titanium Common Redundant Power Supplies (CRPS) • Options: 550W / 800W / 1300W / 1600W • Redundancy Modes: 1+1, 2+1, 2+2, or 3+1 |
| Cooling System | Hot-swappable dual-rotor cooling fan modules (8 x 8038 fans) with N+1 dynamic speed regulation |
| Supported OS | Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi, CentOS, NeoKylin |
