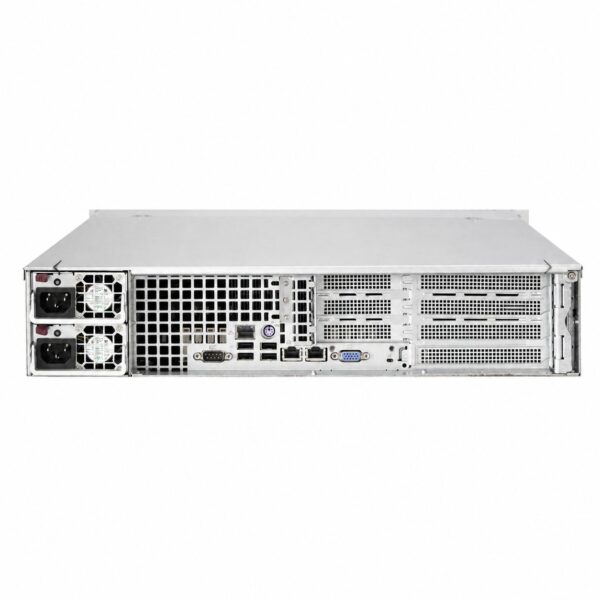

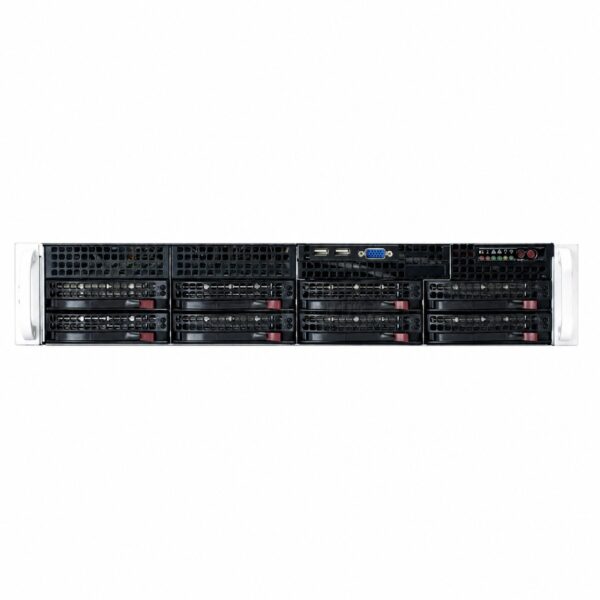

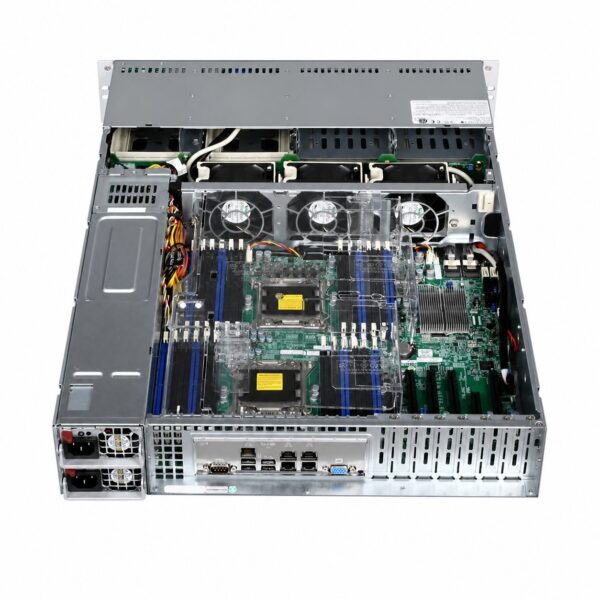

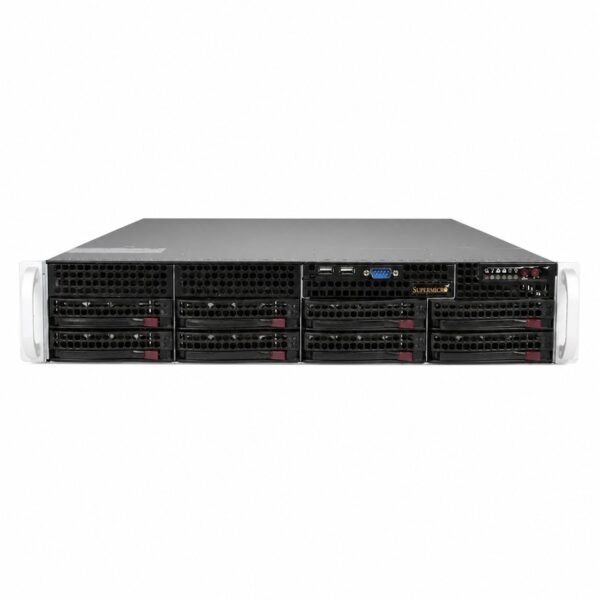

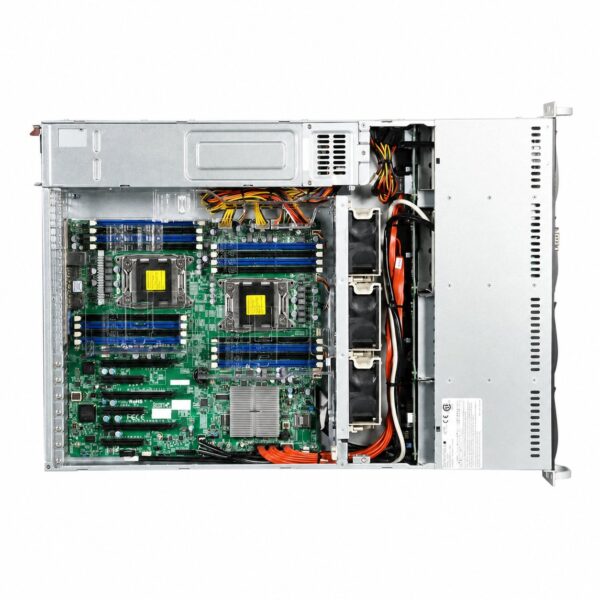

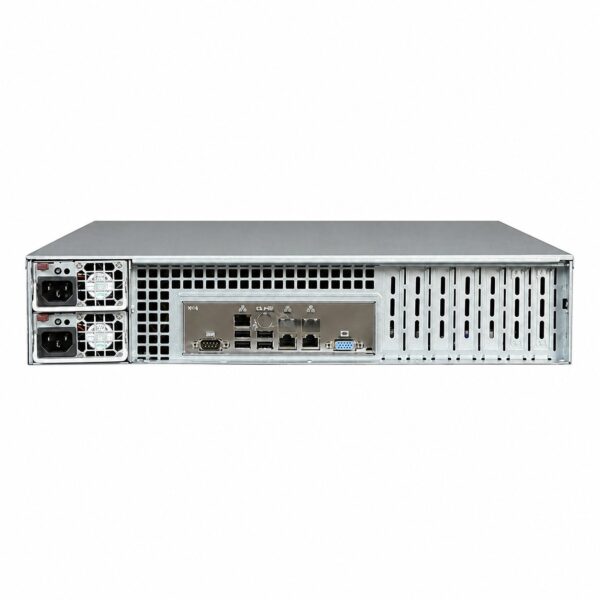

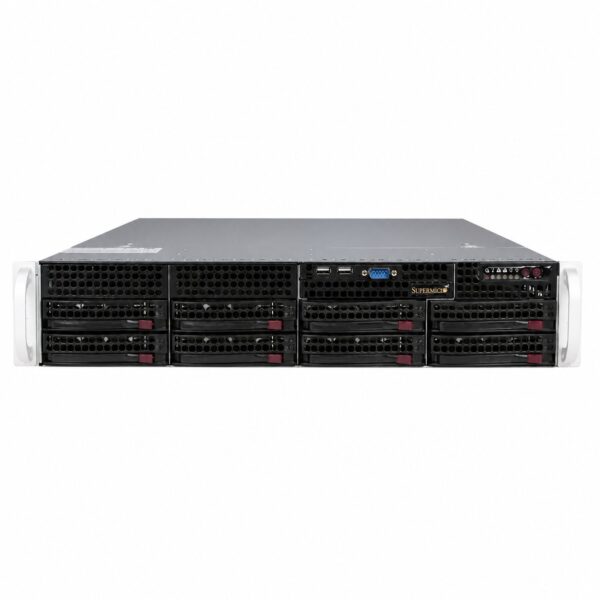

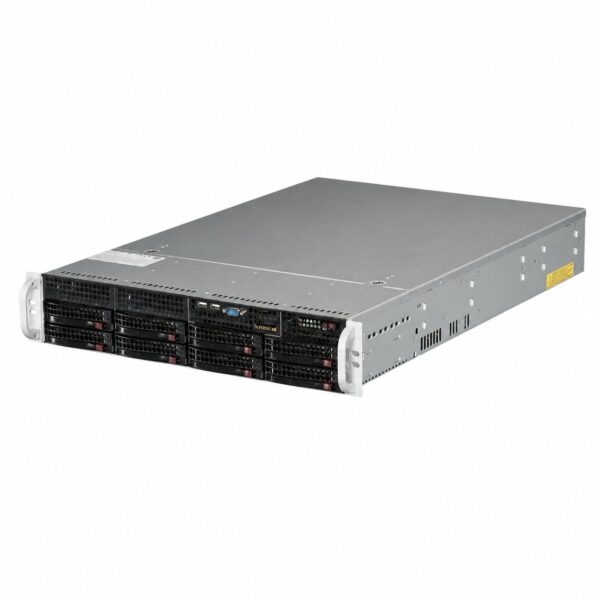

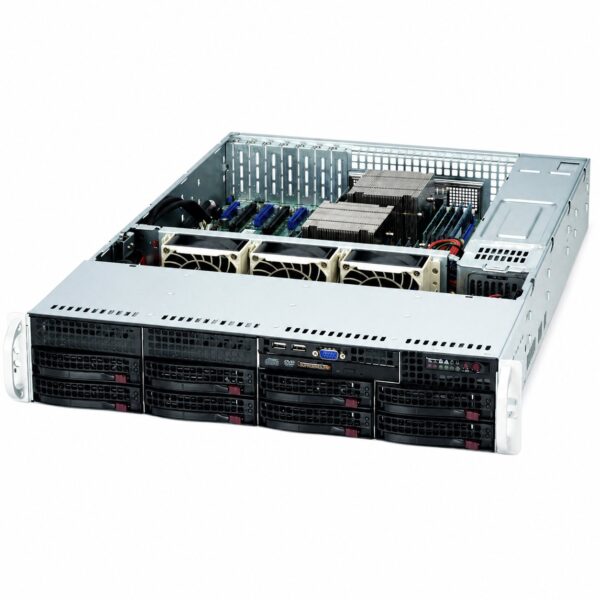

Supermicro SuperServer 6027R-3RF4+
SYS-6027R-3RF4+
Enterprise stock · tested · export documentation available
Technical Specifications
| Feature | Specification Details |
| Product Model | Supermicro SuperStorage Server 6027R-E1R12L (SSG-6027R-E1R12L) |
| Form Factor | 2U Rackmount Chassis |
| Processor Support |
Dual Socket R (LGA 2011) Supports Intel® Xeon® E5-2600 and E5-2600 v2 family QPI speed up to 8.0 GT/s |
| Chipset | Intel® C602J Chipset |
| System Memory |
16x 240-pin DDR3 DIMM slots Up to 512GB DDR3 ECC Registered RDIMM / LRDIMM Memory Frequencies: 1600 / 1333 / 1066 MHz |
| Drive Bays |
12x 3.5″ Hot-swap SAS2 / SATA3 drive bays Optional: 2x 2.5″ Rear Hot-swap drive bays |
| Storage Controller |
Onboard LSI 2308 IT Mode Controller SAS2 Expandable Backplane (LSI SAS2X28 expander) 1x Single JBOD expansion port |
| Expansion Slots | 5x PCI-Express 3.0 x8 slots (Low-Profile) |
| Network Connectivity |
Quad Gigabit Ethernet (4x RJ45 ports) Powered by Intel® i350 GbE Controller |
| Management |
Integrated IPMI 2.0 with Virtual Media & KVM-over-LAN 1x Dedicated RJ-45 IPMI LAN port |
| I/O Interfaces | 4x RJ-45 LAN ports, 1x Dedicated IPMI LAN port, 9x USB 2.0 ports, 1x VGA port, 1x Serial port |
| Cooling | 3x Heavy-duty 8cm PWM cooling fans |
| Power Supply |
Dual 920W Redundant (1+1) Power Supplies 80 PLUS Platinum Certified (94% efficiency) |
| System Dimensions |
Height: 3.5″ (89 mm) Width: 17.2″ (437 mm) Depth: 25.5″ (648 mm) |
| Gross Weight | Approx. 61 lbs (27.7 kg) |
| OS Compatibility | Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux, VMware ESXi |
