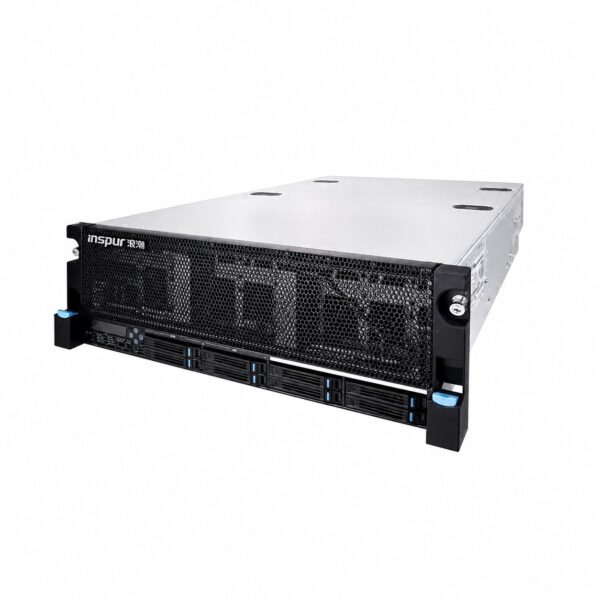

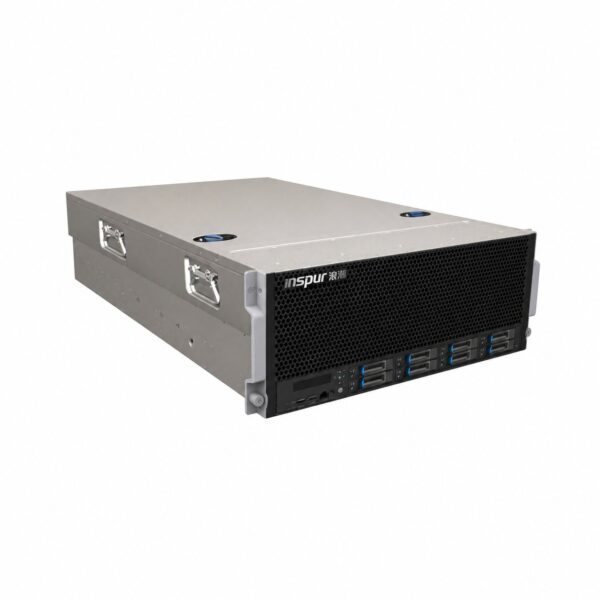

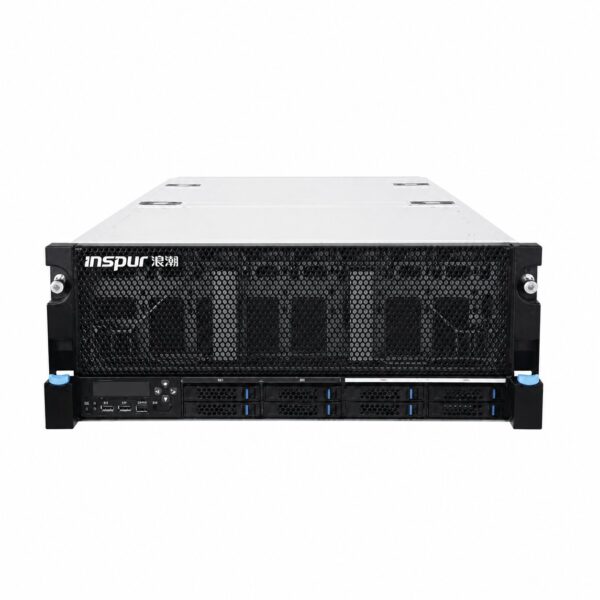

Name: Inspur NF8480M4 4U Rack-mountable server chassis - SunSpike
SKU: NF8480M4

Inspur NF8480M4 Datasheet & Technical Specifications

Product Overview

The Inspur NF8480M4 is a high-end, 4U 4-socket enterprise rack server designed for mission-critical workloads, large-scale databases, virtualization, memory-intensive applications, and enterprise resource planning (ERP) systems. Built on Intel Xeon E7 v3/v4 product families, it delivers exceptional RAS (Reliability, Availability, and Serviceability) features alongside massive expansion capabilities.

Key Technical Specifications

Feature	Technical Specification
Form Factor	4U Rack-mountable server chassis
Processor Family	Up to 4 x Intel Xeon E7-4800 v3/v4 or E7-8800 v3/v4 series processors (Up to 24 cores per processor)
Chipset	Intel C612 / C602J Chipset
Memory Slots	96 DDR4 DIMM slots (via memory riser boards)
Max Memory Capacity	Up to 12 TB (using 128GB LRDIMMs) at speeds up to 2400 MHz; supports ECC, memory mirroring, and rank sparing
Front Drive Bays	Up to 24 x 2.5-inch hot-swappable SAS / SATA HDDs/SSDs or up to 8 x 2.5-inch NVMe PCIe SSDs
Storage Controller	Integrated SAS/SATA RAID controller (e.g., LSI SAS3008/3108) with 12Gb/s support; RAID 0, 1, 5, 6, 10, 50, 60
PCIe Expansion Slots	Up to 18 x PCIe 3.0 slots (including hot-swap PCIe options and mezzanine card slots)
Network Interfaces	Modular LOM card supporting dual-port/quad-port 1GbE, 10GbE SFP+, or 10Base-T options; customizable via PCIe add-on adapters
System Management	Onboard IPMI 2.0 compliant iBMC (Inspur Baseboard Management Controller) with dedicated 1GbE RJ-45 management port; KVM over IP, HTML5, Web GUI
Power Supply	Redundant hot-swappable 1600W / 2000W 80 PLUS Platinum / Titanium PSUs (N+N or N+M configuration)
Cooling System	Hot-swappable, redundant cooling fan modules
Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi
