Name: HP Z2 Small Form Factor (SFF) G5 Workstation - SunSpike
SKU: Z2G5SSF

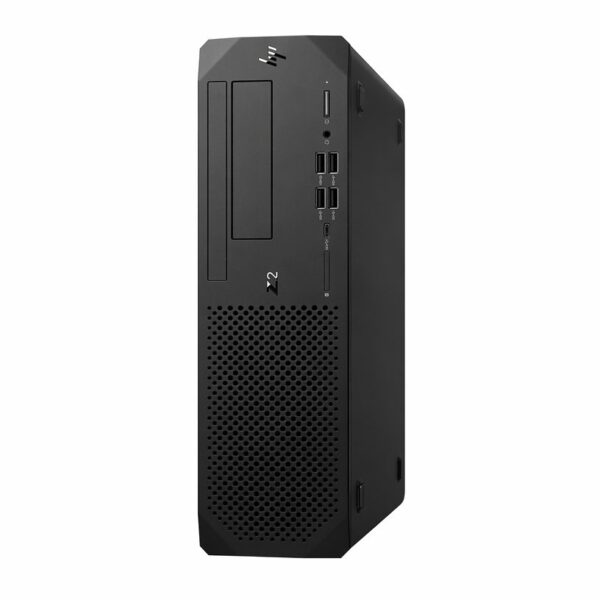

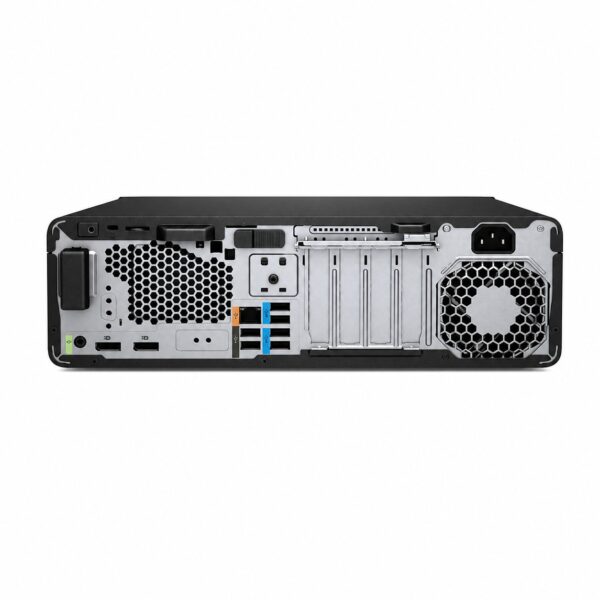

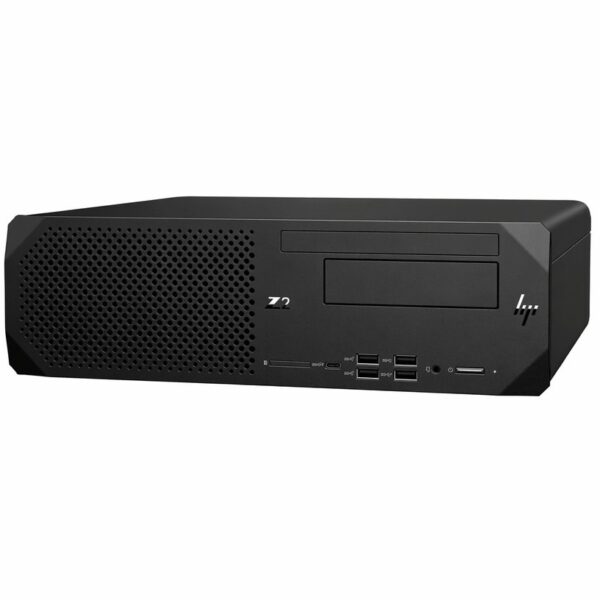

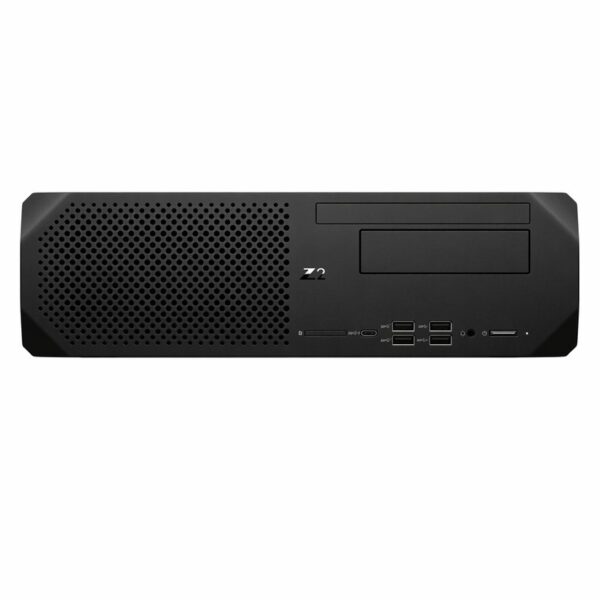

HP Z2 Small Form Factor G5 Workstation

Form Factor: Small Form Factor (SFF)
Chipset: Intel® W480 Chipset
Dimensions (W x D x H): $33.8 \times 30.8 \times 10.0\text{ cm}$ ( $13.3 \times 12.1 \times 3.95\text{ in}$ )
Weight: Starting at $5.4\text{ kg}$ ( $11.9\text{ lbs}$ ) (varies by configuration)
Power Supply: Up to $450\text{W}$ / $500\text{W}$ 90% or 92% efficient internal power supply options

Component	Technical Specification
Processor Options	10th Gen Intel® Core™ Processors: i3, i5, i7, i9 (up to 10 cores / 20 threads) Intel® Xeon® W-1200 Series: W-1250, W-1270, W-1290 series
Memory	4 DIMM slots Supports up to 128 GB DDR4-3200 / DDR4-2933 Supports ECC (with Intel® Xeon®) and Non-ECC (with Intel® Core™) UDIMMs
Storage Bays & Slots	Internal Drive Bays: 1x 2.5″ bay, 1x 3.5″ bay External Bays: 1x 3.5″ bay, 1x slim optical drive bay (9.5 mm) M.2 Slots: 2x M.2 2280 PCIe 3.0 x4 (for NVMe SSDs)
Graphics Options	Integrated: Intel® UHD Graphics 630 / P630 Discrete: NVIDIA® Quadro® P400 / P620 / P1000 / T1000 / T2000, AMD Radeon™ Pro WX 3200
Expansion Slots	1x PCIe 3 x16 (x16 connector) 1x PCIe 3 x4 (x16 connector) 2x PCIe 3 x1 (x1 connector) 1x M.2 2230 PCIe 3 x1 (for WLAN/BT) 2x M.2 2280 PCIe 3 x4 (for Storage)

2x USB Type-A 10Gbps signaling rate
2x USB Type-A 5Gbps signaling rate
1x USB Type-C® 10Gbps signaling rate (charging support up to $5\text{V}/3\text{A}$ )
1x Universal Audio Jack (headphone/microphone combo)
1x SD Media Card Reader 4.0 (optional)

2x DisplayPort™ 1.4
2x USB Type-A 10Gbps signaling rate
2x USB Type-A 5Gbps signaling rate
2x USB 2.0 Type-A
1x RJ-45 Gigabit Ethernet port
1x Audio Line-Out
Flex I/O (Optional): Choice of 2nd 1GbE LAN, HDMI 2.0, VGA, Dual USB-A 5Gbps, or Thunderbolt™ 3
