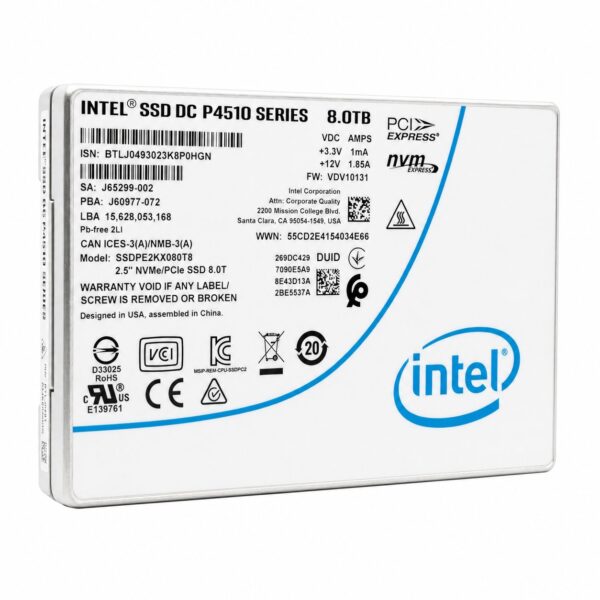

Intel SSD D7-P4510 Series SSDPE2KX080T801

Product Overview

• Brand: Intel®

• Product Line: Intel® SSD D7-P4510 Series

• Model Number / Part Number: SSDPE2KX080T801

• Form Factor: 2.5″ 15mm (U.2)

• Interface: PCIe 3.1 x4, NVMe 1.2

• NAND Flash Memory: Intel® 3D NAND Technology (64-Layer, TLC)

• Target Audience: Enterprise & Data Center Storage

Technical Specifications

Performance

• Sequential Read (up to): $3,200 \text{ MB/s}$

• Sequential Write (up to): $3,000 \text{ MB/s}$

• Random Read (4KB Span): $637,000 \text{ IOPS}$

• Random Write (4KB Span): $139,000 \text{ IOPS}$

• Sequential Read/Write Latency: $10 / 13 \;\mu\text{s}$ (typical)

Capacity & Endurance

• Capacity: 8.0 TB (8000 GB)

• Endurance Rating (Lifetime Writes): 13.88 PBW (Petabytes Written)

• Drive Writes Per Day (DWPD): 1 DWPD (over 5 years)

• Mean Time Between Failures (MTBF): 2 million hours

• Uncorrectable Bit Error Rate (UBER): $< 1 \text{ sector per } 10^{17} \text{ bits read}$

Power & Environmental Features

• Active Power Consumption: Up to $16 \text{ W}$

• Idle Power Consumption: $5 \text{ W}$

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Form Factor Standard: SFF-8639 connector (2.5-inch drive, 15mm z-height)
