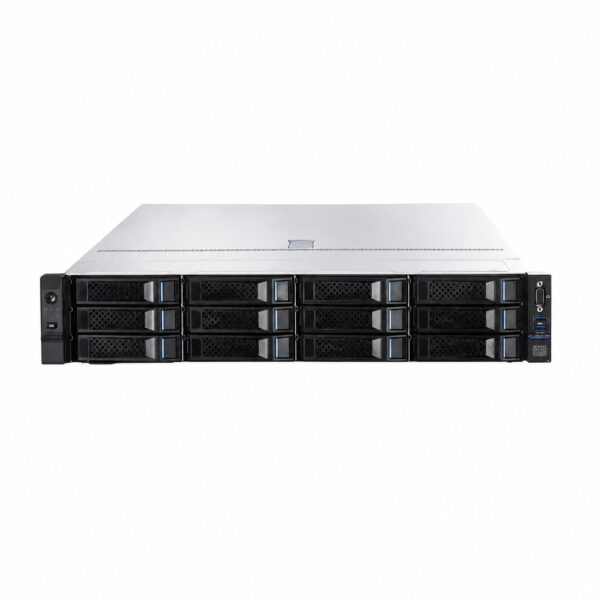

Name: Inspur NF5270M5 2U Rack Mount Server - SunSpike
SKU: NF5270M5

Inspur Server NF5270M5 Overview

The Inspur NF5270M5 is a 2U dual-socket mainstream rack server designed for enterprise applications, data center virtualization, distributed storage nodes, and cloud infrastructure. Built on the Intel® Purley platform, it delivers high processing capability, flexible storage expandability, and operational energy efficiency in a standard 2U chassis.

Technical Specifications

Feature	Specification Details
Form Factor	2U Rack Mount Server
Processor	1 or 2 Intel® Xeon® Scalable Processors (1st Gen Skylake / 2nd Gen Cascade Lake) Supports Bronze, Silver, and Gold series (TDP up to 165W)
Chipset	Intel® C621 Series Chipset
Memory	16 DDR4 DIMM slots (up to 2933 MHz) Supports RDIMM and LRDIMM modules Maximum capacity up to 1 TB / 2 TB (depending on DIMM density)
Storage Drive Bays	• 3.5-inch Configuration: Up to 12 x 3.5″ SAS/SATA/NVMe HDDs/SSDs (hot-swappable) • 2.5-inch Configuration: Up to 24 or 25 x 2.5″ SAS/SATA HDDs/SSDs • Rear Storage: Optional 2 x 2.5″ rear hot-swap drive bays or dual M.2 SSDs for OS boot
RAID Controller	Integrated SATA controller (RAID 0/1/5/10) Optional hardware SAS/RAID controllers (e.g., LSI 3008, 3108, 9361-8i, 9460-8i) supporting RAID 0/1/5/6/10/50/60 with cache flash protection
I/O Expansion	Up to 6 PCIe 3.0 expansion slots via customizable Riser cards
Network Interfaces	Modular OCP 2.0 / OCP 3.0 NIC cards or onboard LOM supporting dual-port / quad-port 1GbE, 10GbE SFP+, or 25GbE SFP28 options
Power Supply	Redundant hot-swap 1+1 Platinum / Titanium CRPS power modules (550W / 800W / 1300W options)
System Management	Integrated BMC with dedicated 1GbE RJ45 management port Supports IPMI 2.0, Redfish, SNMP, KVM over IP, HTML5 Web UI, and Inspur InServer Manager
Cooling	Hot-swappable, redundant system cooling fans with intelligent temperature-controlled speed regulation
Operating Systems	Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi, Ubuntu Server, CentOS
Chassis Dimensions	Height: 87.5 mm (3.44 in) \| Width: 435 mm (17.13 in) \| Depth: ~780 mm (30.7 in)
