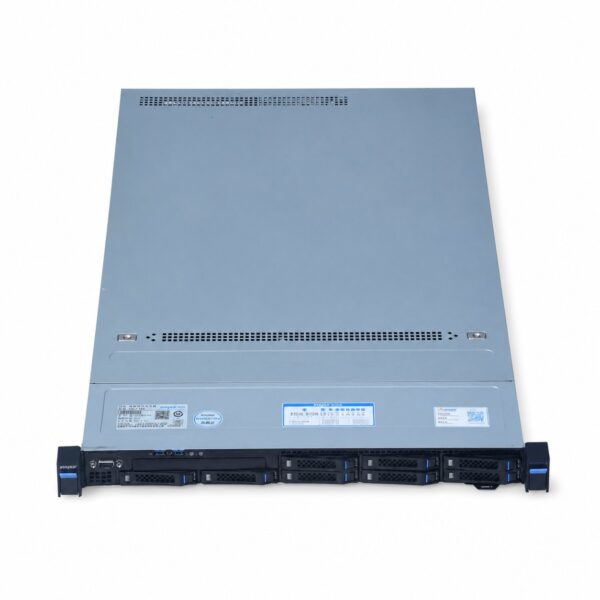

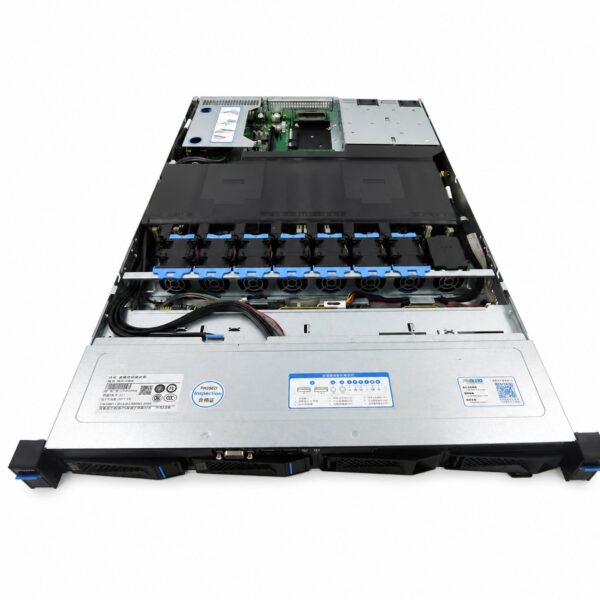

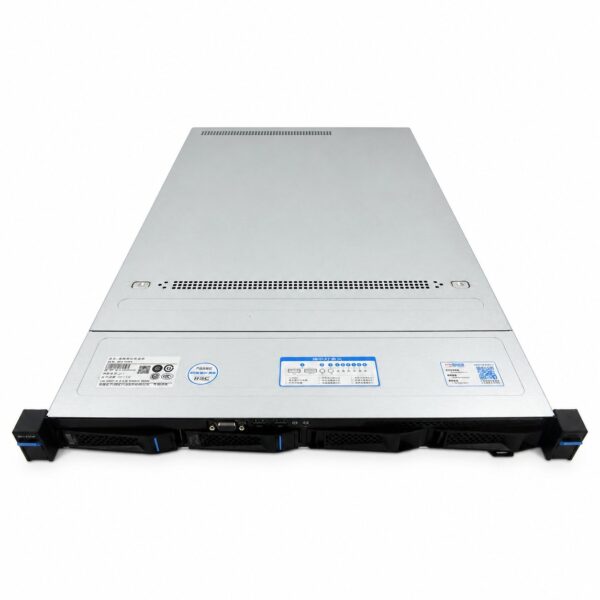

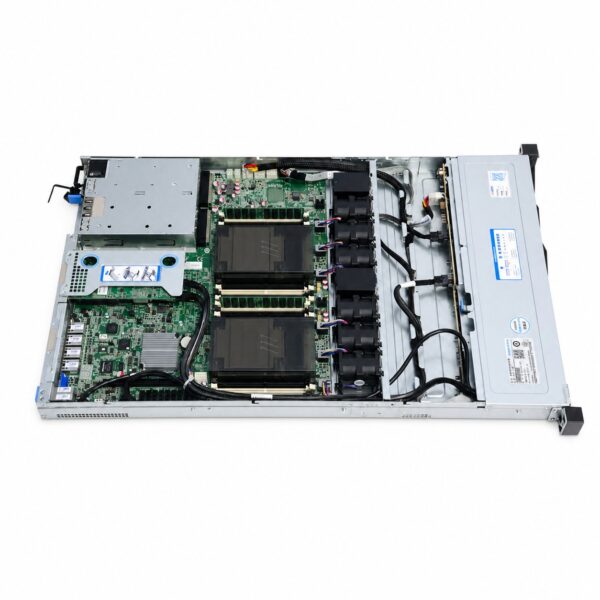

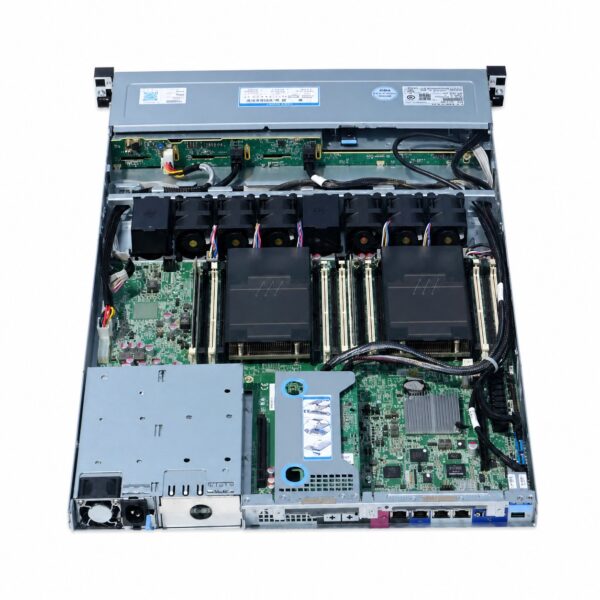

Name: Inspur NF5180M4 1U Rack Server - SunSpike
SKU: NF5180M4

Technical Specifications

Specification	Details
Form Factor	1U Two-Socket Rackmount Server
Processor System	Supports up to 2 Intel® Xeon® E5-2600 v3 / E5-2600 v4 series processors
Chipset	Intel® C612 Chipset
Memory	24 DDR4 DIMM slots (Supports ECC RDIMM / LRDIMM) Up to 3TB max memory capacity
Storage Bays	Front Drive Options: • Option 1: Up to 10x 2.5″ hot-plug SATA/SAS HDDs or SSDs • Option 2: Up to 8x 2.5″ hot-plug SATA/SAS HDDs/SSDs + optional DVD-ROM • Option 3: Up to 4x 3.5″ hot-plug SATA/SAS HDDs + 2x 2.5″ hot-plug SSDs NVMe Support: • Optional support for up to 4 NVMe SSDs
Storage Controller	• Onboard SATA 6Gbps via Intel PCH • Optional 6Gb/s or 12Gb/s SAS HBA / RAID controllers (RAID 0/1/5/6/10/50/60 with optional cache & supercap protection)
PCIe Expansion	Up to 3 PCIe slots: • 2x PCIe 3.0 x16 Full-Height Half-Length (FHHL) slots via riser card • 1x PCIe 3.0 x8 Mezzanine slot for dual-port 10G SFP+ or 10G-BaseT card
Network Interfaces	• Onboard dual-port 1GbE (Intel i350 controller) • Optional 10GbE network upgrade via Mezzanine card slot
I/O Ports	Front: 1x USB port, 1x VGA port Rear: 2x USB ports, 1x VGA port, 1x dedicated RJ-45 management port Internal: 2x USB ports, 1x internal serial port
System Management	Onboard Aspeed AST2400 BMC chipset Supports IPMI 2.0, KVM over IP, Virtual Media, and Intel Node Manager 3.0
Power Supply	Platinum or Titanium level high-efficiency power supplies Optional 1+1 redundant hot-swap configuration (supports PMBus)
Cooling Fans	N+1 hot-swappable cooling fan assembly with PID thermal regulation algorithms
Dimensions & Weight	Height: 44 mm (1.73 in) \| Width: 430 mm (17.0 in) \| Depth: 730 mm (28.74 in) Weight: approx. 26 kg (57 lbs) max configuration
Operating System Support	Microsoft Windows Server 2012 / 2012 R2 / 2016 Red Hat Enterprise Linux 6 / 7 SUSE Linux Enterprise Server 11 / 12 VMware ESXi / Ubuntu Server / CentOS
