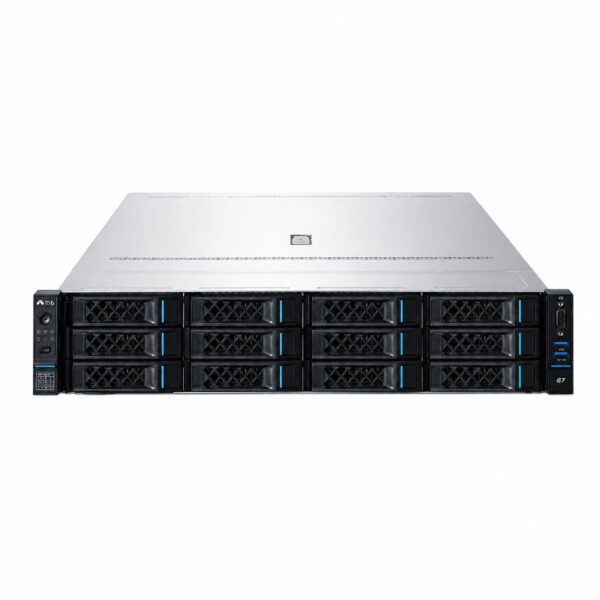

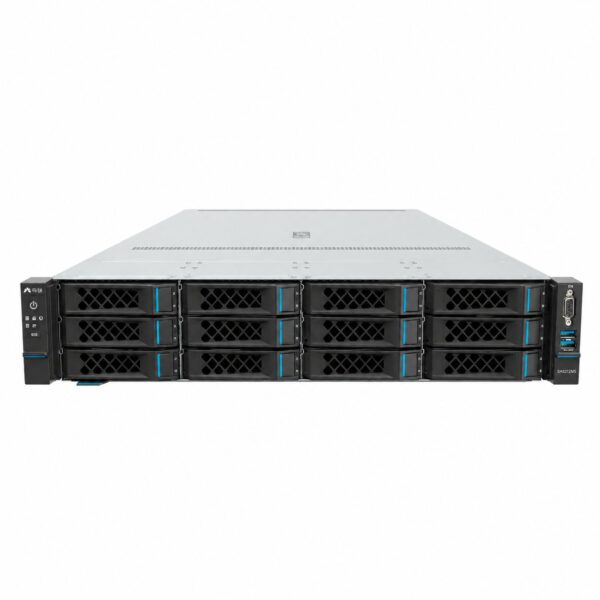

Name: Inspur/IEIT NF5270M7 2U Rack Server - SunSpike
SKU: NF5270M7

Overview

The IEIT / Inspur NF5270M7 is a 2U dual-socket enterprise rack server designed for general-purpose compute, virtualization, cloud data centers, and storage-intensive workloads. Built on Intel’s architecture with DDR5 memory support and high-speed PCIe Gen5 interconnects, the NF5270M7 delivers high reliability, flexible storage scalability, and cost efficiency for enterprise IT environments.

Key Technical Specifications

Feature	Specification Details
Form Factor	2U Rackmount Server
Processor Support	Up to 2x 4th or 5th Generation Intel® Xeon® Scalable Processors • Supports up to 350W TDP per CPU • UPI interconnect speed up to 20 GT/s
Chipset	Intel® C741 Series Chipset
Memory	• Up to 16/32x DDR5 DIMM slots (up to 5600 MT/s) • Supports RDIMM and 3DPC / 2DPC configurations • Advanced ECC, memory mirroring, and rank sparing
Storage Bays (Front)	Configurable front drive bay configurations: • Up to 12x 3.5-inch SAS/SATA/NVMe HDDs/SSDs • Up to 24x / 25x 2.5-inch SAS/SATA/NVMe SSDs
Storage Bays (Rear)	Flexible rear drive expansion: • Up to 4x 2.5-inch or 3.5-inch SAS/SATA/NVMe drives • Optional 2x M.2 NVMe / SATA SSDs or E1.S SSDs for dedicated OS boot
RAID / Storage Controller	• Onboard SATA controller with software RAID support • Optional PCIe / Mezz hardware RAID/HBA controllers (RAID 0, 1, 5, 6, 10, 50, 60) • Supercapacitor power protection module support
PCIe Expansion Slots	Up to 6x standard PCIe Gen5 slots: • PCIe 5.0 x16 / x8 configurations • Dedicated OCP 3.0 network mezzanine slot • Support for single-width / double-width GPU acceleration cards
Networking	• 1x OCP 3.0 card supporting 1GbE / 10GbE / 25GbE / 100GbE / 200GbE interfaces • Integrated 1GbE RJ45 dedicated BMC management port
Power Supply Unit (PSU)	• Dual hot-swappable CRPS power supplies in 1+1 redundant configuration • Efficiency: 80 PLUS Platinum / Titanium rated • Wattage options: 550W / 800W / 1300W / 1600W / 2000W AC/DC
Cooling System	Hot-swappable N+1 redundant dual-rotor cooling fans with dynamic fan speed adjustment
System Management	• Integrated ASPEED AST2600 BMC controller • IPMI 2.0, Redfish, RESTful API, Web GUI, Virtual KVM, and Virtual Media • UID indicator LED and diagnostic display panel
Dimensions & Weight	• Chassis: 435 mm (W) × 87 mm (H) × 800 mm (D) • Outer dimensions (with ears): 482.4 mm (W) × 87 mm (H) × 828.4 mm (D) • Maximum Weight: ~33 kg – 38 kg (fully loaded)
