Inspur/IEIT NF5266M6 Rack Server Datasheet

Name: Inspur/IEIT NF5266M6 2U Rack Server - SunSpike
SKU: NF5266M6

System Overview

The NF5266M6 is a premium 2U dual-socket high-density storage server powered by 3rd Generation Intel® Xeon® Scalable processors (Ice Lake). Engineered specifically to resolve data storage bottlenecks in cloud environments, enterprise storage systems, and big data clusters, the NF5266M6 delivers extreme storage capacity, flexible I/O scalability, and high-throughput compute performance within a compact 2U chassis.

Key Highlights & Features

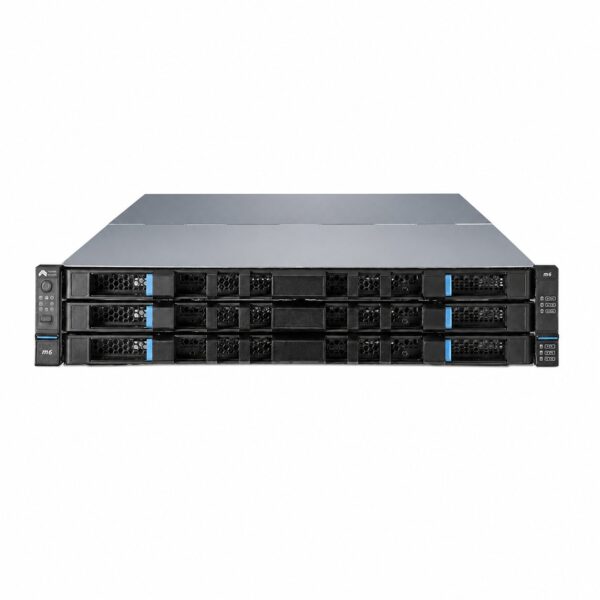

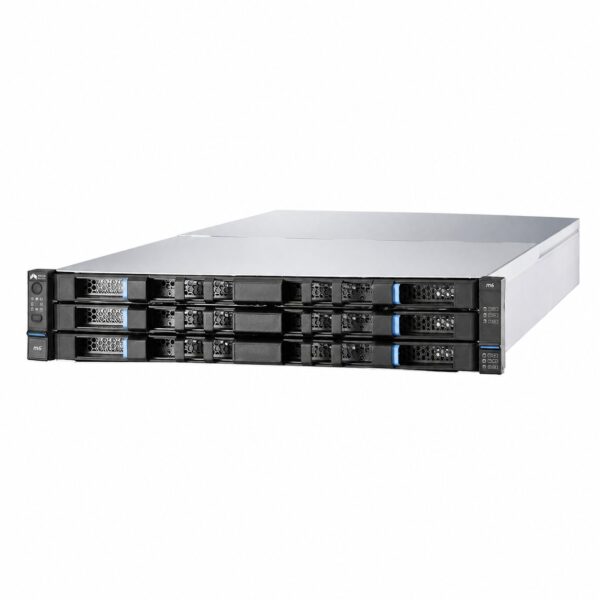

Ultra-High Storage Density: Accommodates up to 24x or 26x 3.5-inch SAS/SATA drives in a standard 2U chassis footprint, offering up to 40% higher storage density compared to standard 2U servers.
Balanced Compute Power: Supports up to two 3rd Gen Intel® Xeon® Scalable processors (up to 40 cores per socket, max TDP 270W), delivering significant generational boosts in IPC and memory bandwidth.
PCIe 4.0 & OCP 3.0 Expansion: PCIe 4.0 doubles data transfer speeds up to 16 GT/s per lane. Features a dedicated OCP 3.0 mezzanine slot supporting 1G/10G/25G/100G/200G network cards without consuming standard PCIe expansion slots.
Modular & Tool-Less Maintenance: Core service components—including drive bays, fan modules, and power supply units—are hot-swappable and designed for tool-less removal to maximize system uptime.

Technical Specifications

Feature	Detailed Specification
Form Factor	2U Rackmount Chassis
Processors	Up to 2 x 3rd Generation Intel® Xeon® Scalable Processors (Ice Lake) • Core Count: Up to 40 cores / 80 threads per CPU • Max TDP: Up to 270W per socket
Chipset	Intel® C621A Series Chipset
Memory	• Up to 16 or 32 DDR4 DIMM slots (layout variant dependent) • Speeds up to 3200 MT/s • Supports RDIMM, LRDIMM, and Intel® Optane™ Persistent Memory 200 Series

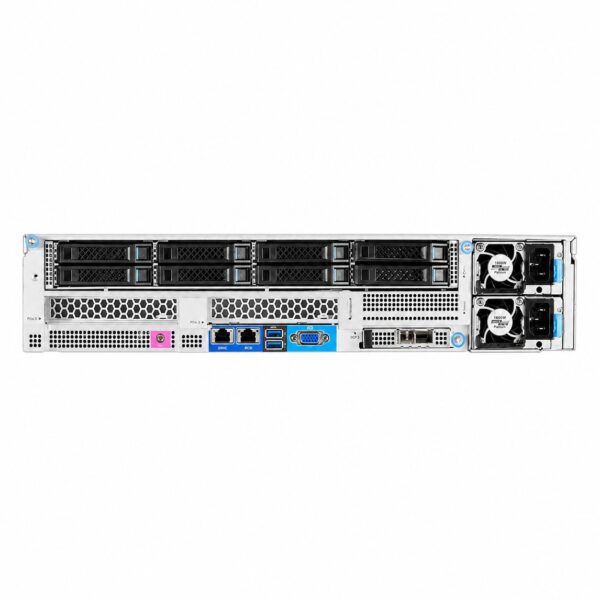

Drive Bays & Topology	Front Drive Bays: Up to 24x or 26x 3.5″ SAS/SATA HDD/SSD Rear Drive Bays: Up to 4x 2.5″ SAS/SATA/NVMe SSDs (ideal for OS boot/caching) Internal Storage: Up to 2x M.2 SATA/NVMe SSDs for OS boot
Storage Controllers	• Onboard Intel SATA RAID controller (RAID 0, 1, 5, 10) • Optional 12Gb/s PCIe SAS HBA / HW RAID controllers (2GB / 4GB / 8GB Cache with Supercap protection)
Network Interfaces	• 1 x OCP 3.0 slot (supports 1GbE / 10GbE / 25GbE / 100GbE / 200GbE) • Standard PCIe 4.0 Network Interface Cards (NICs)

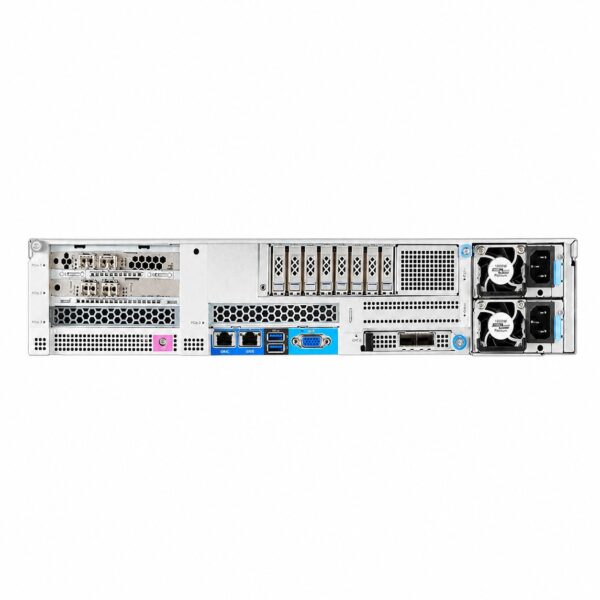

PCIe Expansion	Up to 7 x PCIe 4.0 expansion slots via customizable Riser cards

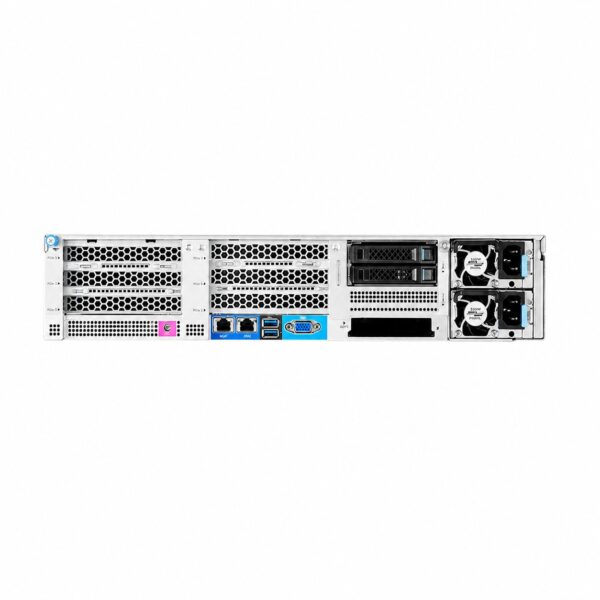

I/O Ports	• Front: 2 x USB 3.0, 1 x VGA • Rear: 2 x USB 3.0, 1 x VGA, 1 x RJ45 Dedicated Management Port
System Cooling	Hot-swappable N+1 redundant cooling fans with dynamic temperature speed control
Power Supply	1+1 Redundant Titanium / Platinum 80 Plus Power Supplies (550W / 800W / 1300W / 1600W / 2000W module configurations)
System Management	Integrated ISBMC (Inspur Baseboard Management Controller) Supports IPMI 2.0, Redfish 1.8, RESTful API, HTML5 Remote Console, KVM, Virtual Media
Security Features	TPM 2.0 / TCM, Chassis Intrusion Switch, Secure Boot, Firmware Digital Signatures
Supported OS	Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux (SLES), Ubuntu, VMware ESXi, CentOS, Anolis OS, OpenEuler
Physical Dimensions	Width: 435 mm (17.13 in) / Height: 87 mm (3.43 in) / Depth: ~750–800 mm

Target Workloads & Use Cases

Software-Defined Storage (SDS): Optimal platform for Ceph, VMware vSAN, Microsoft Storage Spaces Direct (S2D), and GlusterFS deployments.
Big Data Analytics: Purpose-built for Apache Hadoop and Spark clusters that demand high local storage capacity combined with high I/O bandwidth.
Video Surveillance & CDN: Perfect for high-definition video archiving, streaming media servers, and Content Delivery Network (CDN) edge nodes.
Data Archiving & Backup: Cold/warm tier storage repositories and enterprise-level backup targets.
