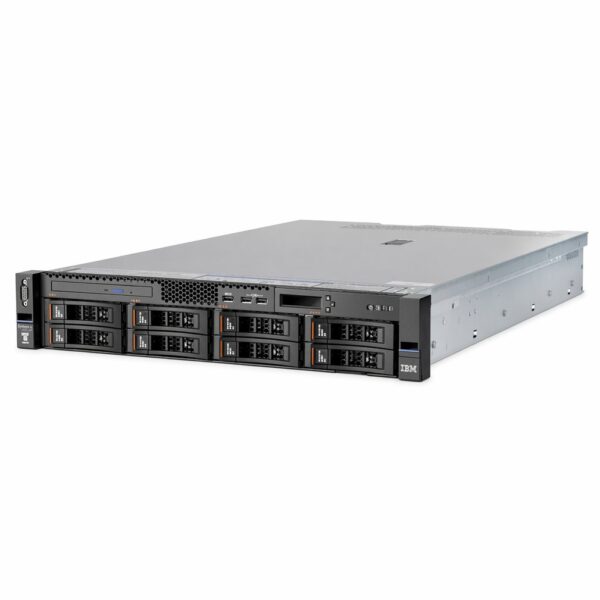

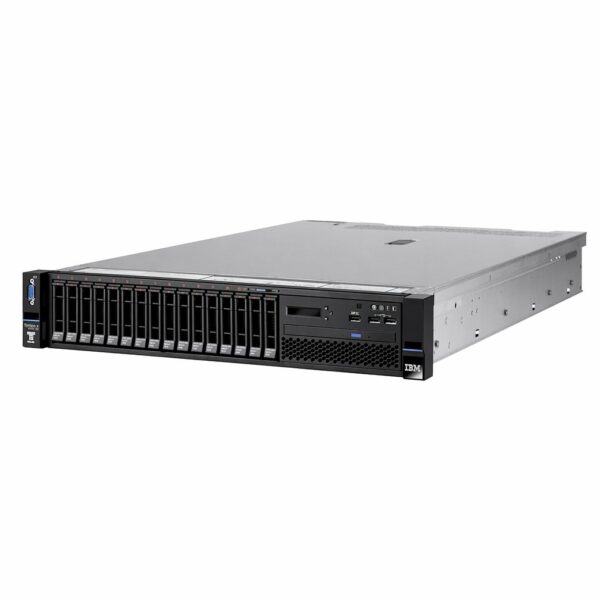

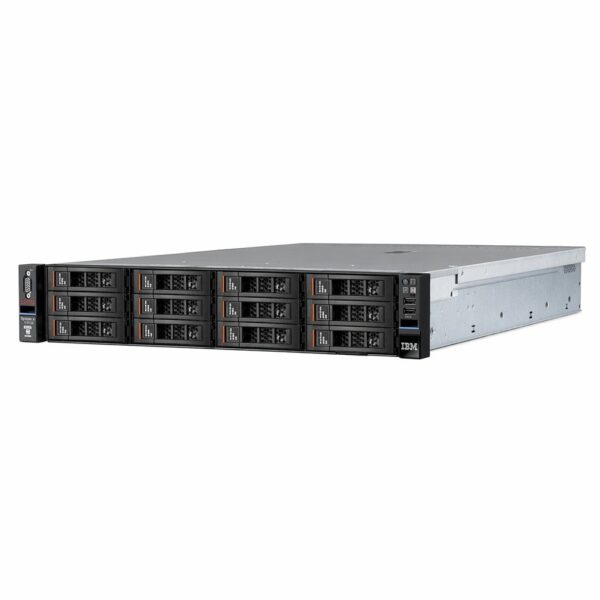

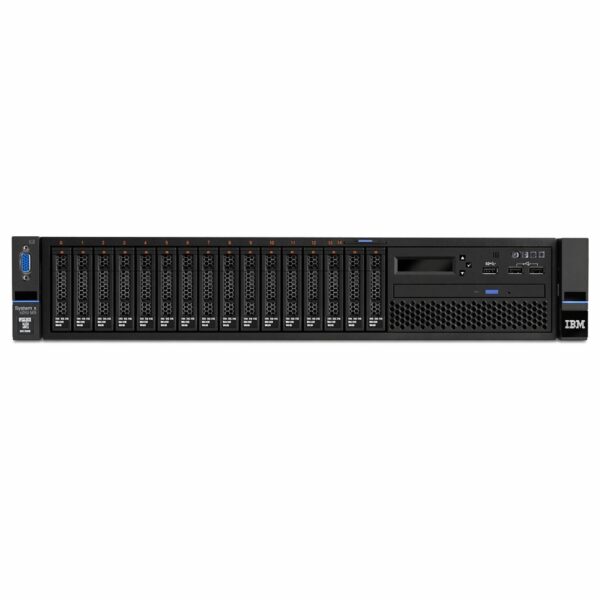

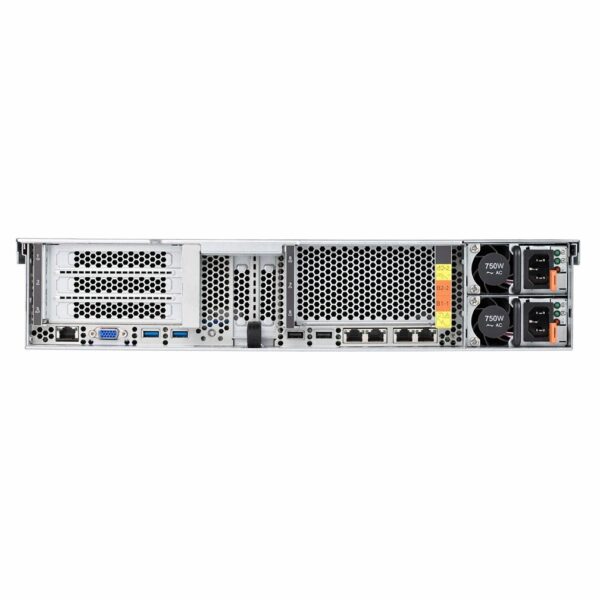

Name: IBM System x3650 M5 Server - SunSpike
SKU: 3650M5

Part No.	ibmx3650m5
Manufacturer	IBM
End of Life?	No
Preceeded By	IBM System x3650 M4 Server
Rack Units	2
Weight [Kg]	23.50
CPU Socket(s)	Up to two Intel Xeon® E5- 2600 v3 series processors
CPU Cache	Up to 45 MB per Socket
Max # Thread(s)	Up to 36 per Socket
Max # Core(s)	Up to 18 per Socket
Memory Capacity	Up to 1.5 terabytes (TB) of memory with SK Hynix 64 gigabyte (GB)* TruDDR4 Memory load- reduced dual inline memory module (LRDIMM); System supports registered dual inline memory module (RDIMM/LRDIMM)
Drive Bays	Up to 24 front and 2 rear 2.5- inch hard disk drives (HDDs)/ solid state drive (SSDs); or up to 12 3.5- inch and 2 rear 3.5- inch HDDs + 2 rear 2.5- inch HDDs/ SSDs; or up to 8 3.5- inch HDDs and 2 rear 3.5- inch or 2.5- inch HDDs/ SSDs (model dependent)
Capacity	Up to 86.4 TB
RAID Controller	12 Gbps dedicated slot for the first RAID; support for up to four RAID adapters
Supported OS	Microsoft® Windows® Server, Red Hat Enterprise Linux®, SUSE Linux Enterprise Server, VMware vSphere – (Optional USB Key or SD Media Adapter)
USB Port(s)	Up to 3 front (1 x USB 3.0, 2 x USB 2.0) and 4 back (2 x USB 3.0, 2 x USB 2.0) and 1 internal (USB 3.0) for hypervisor/ 1 front and 1 back
PCI Slot(s)	1 – 8 PCIe 3.0 slots (supports up to 2 x 300 W GPUs and up to 1 x ML2) and 1 dedicated RAID slot
LAN Socket(s)	4 × 1 gigabit Ethernet (GbE) (std.) and 1 x integrated management module (IMM); optional 10/ 40 GbE ML2 or peripheral component interconnect Express (PCIe) adapter; Trusted Platform Module (TPM) built- inV
Standard	3- year customer replaceable unit (CRU) and onsite limited warranty, next business day 09:00 to 17:00; upgrades available
