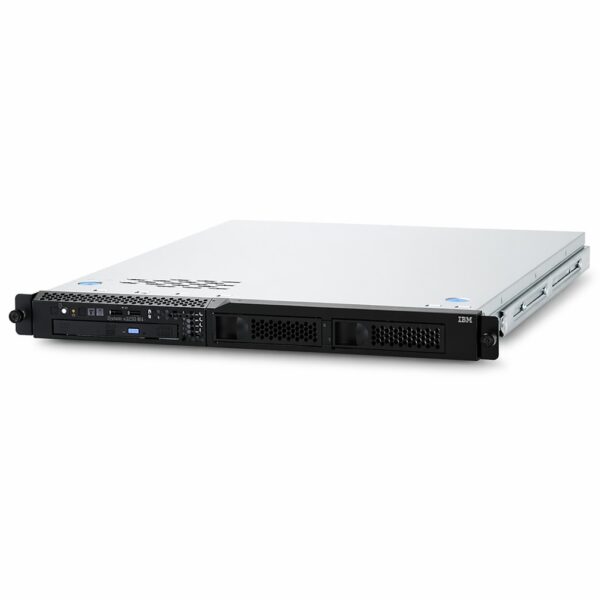

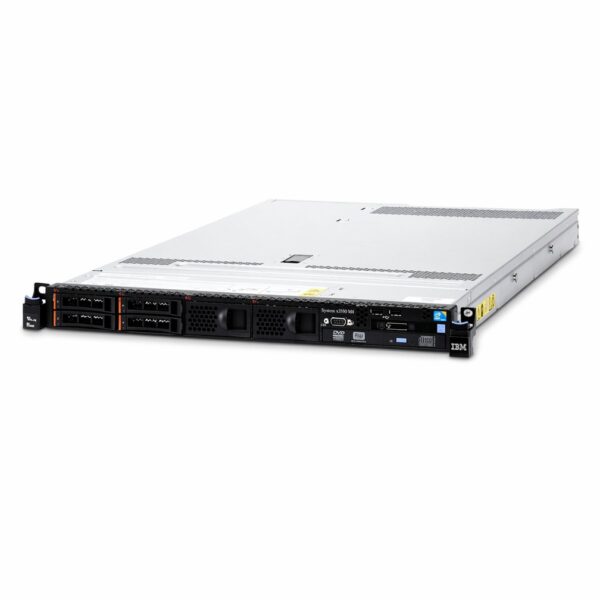

Name: IBM System x3250 M4 Rack Mount Server - SunSpike
SKU: 3250M4

Part No.	x3250m4
Rack Units	1 U
Height	43
Width	439
Depth	575.8
CPU Socket(s)	1
Compatible CPU(s)	Intel® Xeon® E3-1200; Core i3 2100; Pentium
Max CPU Clk Spd	Up to 3.5 GHz
CPU Cache	8 MB L3
Max # Core(s)	2 or 4 per CPU
Memory Slot(s)	4 UDIMMs
Memory Capacity	32 GB up to 1333 MHz
Drive Bays	Two 3.5 in. simple-swap SATA or four 2.5 in.hot-swap/simple-swap SAS (simple-swap 2.5 in. via CTO only)
Capacity	6.0 TB, optical drive device optional
HDD Suitability	SAS/SATA
RAID Controller	ServeRAID C100
RAID Options	Simple-swap SATA models – ServeRAID-C100 for IBM System x; hot-swap SAS model hardware RAID-0, -1 is standard (model dependent); optional hardware RAID-5
Supported OS	Microsoft Windows Server 2008 R2/ Microsoft Windows Server 2008, Red Hat Linux, SUSE Linux
USB Port(s)	7; 6 external ports (2 front, 4 rear); plus 1 internal connectors for tape drive, RDX Removable Disk Cartridge drive, or USB flash drive containing a hypervisor drive
PCI Slot(s)	1 PCIe x8, one PCIe x4 for RAID-0, -1
Serial Ports	1x Serial Port
LAN Socket(s)	Dual Gigabit Ethernet
LAN Controller(s)	Broadcom BCM82574L
Graphics / GPU	Matrox G200eV graphic controller integrated in IMM2
Resolution (Native)	1600×1200 resolution with a color depth of 32 bits at 75Hz
Screen Size	16MB DDR2 standard (shared with IMM2)
Standard	3-year customer replaceable unit/onsite limited warranty
