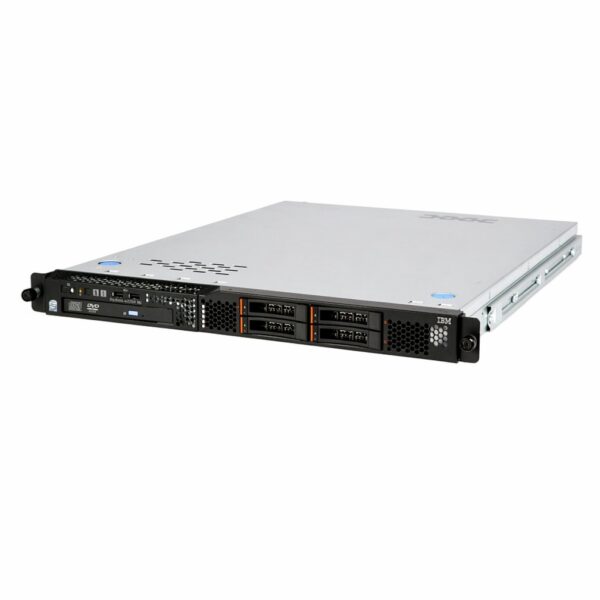

IBM System x3250 M3 Rack Mount Server
IBM System x3250 M3 Rack Mount Server
| Part No. | 4252AC1 |
|---|---|
| Rack Units | 1 U |
| Height | 43 |
| Width | 440 |
| Depth | 559 |
| CPU Socket(s) | 1 |
| Compatible CPU(s) | Intel Xeon 3400 Series (quad-core) up to 2.93 GHz/8 MB/1333 MHz or Intel Celeron, Pentium or Core i3 (dual-core) up to 3.06 GHz/4 MB/1333 MHz |
| Max CPU Clk Spd | Up to 3.06 GHz |
| CPU Cache | 8 MB L3 |
| Max # Core(s) | 2 or 4 Cores per CPU |
| Memory Slot(s) | 6 |
| Memory Capacity | 32 GB |
| Drive Bays | Two 3.5″ simple-swap SATA or 3.5″ hot-swap SAS/SATA, or four 2.5″ hot-swap SAS HDDs |
| Capacity | Up to 2.0 TB SAS or SATA |
| HDD Suitability | SAS or SATA |
| RAID Controller | ServeRAID-BR10il |
| RAID Options | Two 3.5″ simple-swap SATA or 3.5″ hot-swap SAS/SATA, or four 2.5″ hot-swap SAS HDDs |
| Supported OS | Microsoft® Windows Server 2008 STD, EE, DC, R2/Microsoft Windows Server 2008 x64 STD, EE, DC/Windows® Small Business Server 2008, Red Hat Linux®, SUSE Linux |
| USB Port(s) | 6 external ports (2 front, 4 rear), plus 1 internal connector for hypervisor USB key or tape drive |
| PCI Slot(s) | 2 PCIe x8 Gen2, dedicated PCIe x4 for RAID-0, -1, optional PCI-X (special bid only) |
| Serial Ports | 1x Serial Port |
| LAN Socket(s) | Dual Gigabit Ethernet |
| LAN Controller(s) | Intel 82574L |
| Graphics / GPU | Matrox G200eV graphic controller integrated in IMM |
| Resolution (Native) | 1024×768 resolution (analog), with a color depth of 32 bits at 85Hz; 1440×90 resolution (digital), with a color depth of 32 bits at 60Hz |
| Standard | 1- or 3-year customer replaceable unit/onsite limited warranty |
