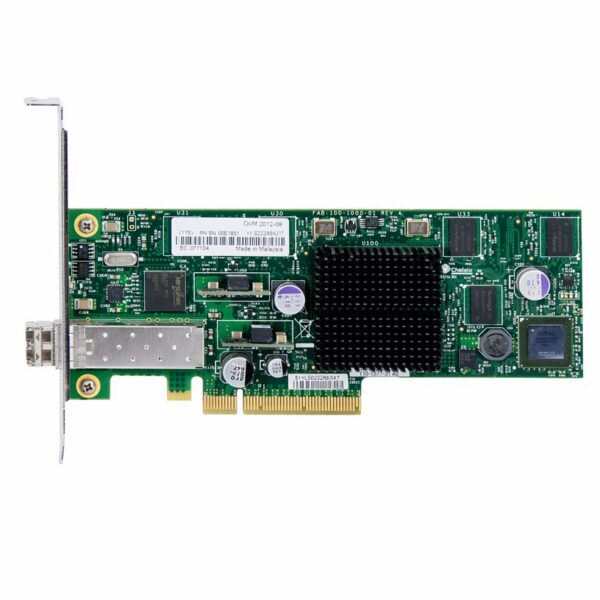

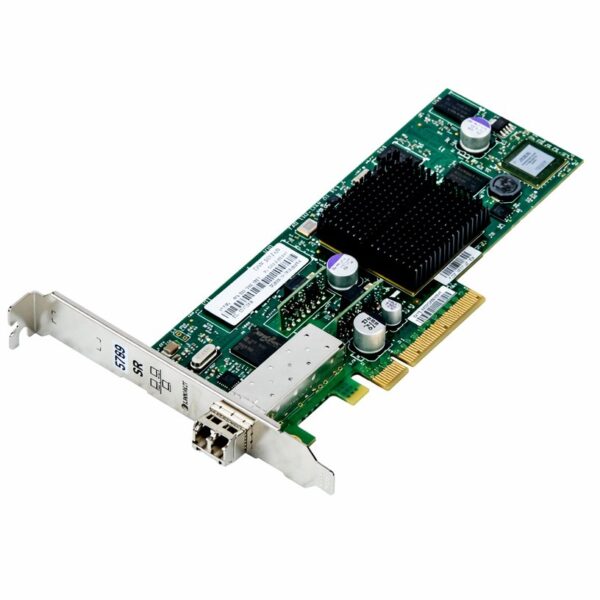

IBM 10Gb Single Port PCIe Network Adapter 00E1851 FC 5769
IBM FRU: 00E1851 FC:5769
IBM 00E1851 Overview
The IBM 00E1851 (Feature Code 5769) is an enterprise-class PCIe Generation 2.0 x8 Single-Port 10GbE (10 Gigabit Ethernet) SR (Short Range) optical fiber network adapter.
Based on high-reliability Intel controller architecture, this standard adapter card is purpose-built for IBM Power Systems enterprise servers. It is optimized for high-bandwidth, low-latency communication workloads such as database clusters, virtualization backbones, and large-scale data transfers.
The adapter includes an open SFP+ cage populated with a removable 10Gbps Short-Wave optical transceiver, utilizing optical fiber cabling infrastructure for noise-immune high-speed networking.
Technical Specifications
| Parameter | Specification |
| IBM Part Number (P/N) | 00E1851 |
| IBM Feature Code (FC) | 5769 |
| Associated FRU P/Ns | 00E1853 / 00E1856 / 42C1751 (Interchangeable structural equivalents) |
| Interface / Bus Type | PCI Express Gen 2.0 x8 |
| Port Density | Single-Port (1 x 10G SFP+ cage) |
| Data Rate | 10 Gbps (Line rate) |
| Optics Type Included | 10G Gen2 Short-Range (SR) Short-Wave (SW) Laser Optical SFP+ |
| Connector Interface | Duplex LC type |
| Form Factor | Low-profile short card plug-in module |
Key Features & Protocol Support
-
10GBase-SR Fiber Topology: Utilizes Short-Range (SR) laser optics designed to maximize data integrity and run completely interference-free over multimode fiber optics plants.
-
Virtualization Optimization: Fully supports advanced network virtualization techniques including NetQueue, Intel Virtual Machine Device Queues (VMDq), and Single Root I/O Virtualization (SR-IOV) when configured inside IBM PowerVM or VIOS hypervisors.
-
Advanced Hardware Offloading:
-
TCP/UDP/IP Stateless Checksum Verification Offload
-
Large Send Offload (LSO) / TCP Segmentation Offload (TSO)
-
Receive Side Scaling (RSS) layer handling
-
-
Link Aggregation & Failover: Fully compatible with IEEE 802.3ad Link Aggregation Control Protocol (LACP) and network interface card (NIC) bonding configurations to facilitate uninterrupted system availability.
System Compatibility
Supported Hardware Platforms
This optical network module is deeply integrated into scale-out and enterprise scale-up system enclosures, specifically:
-
IBM Power8 Systems: S814, S822, S824, E850, E870, E880
-
IBM Power7 / Power7+ Systems: 720, 730, 740, 750, 770, 780
Operating System Support
-
IBM AIX 6.1, AIX 7.1, AIX 7.2, AIX 7.3, or later
-
IBM i 7.1, 7.2, 7.3, or later
-
VIOS (Virtual I/O Server) multi-tenant partitions
-
Red Hat Enterprise Linux (RHEL 6 / 7 or later)
-
SUSE Linux Enterprise Server (SLES 11 / 12 or later)
