IBM 00E2097 8-Slot DDR3 Memory Riser Card for Power Systems

Product Overview

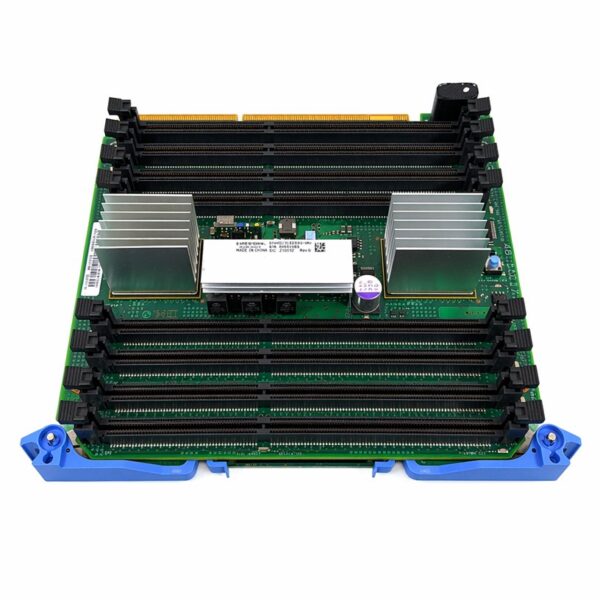

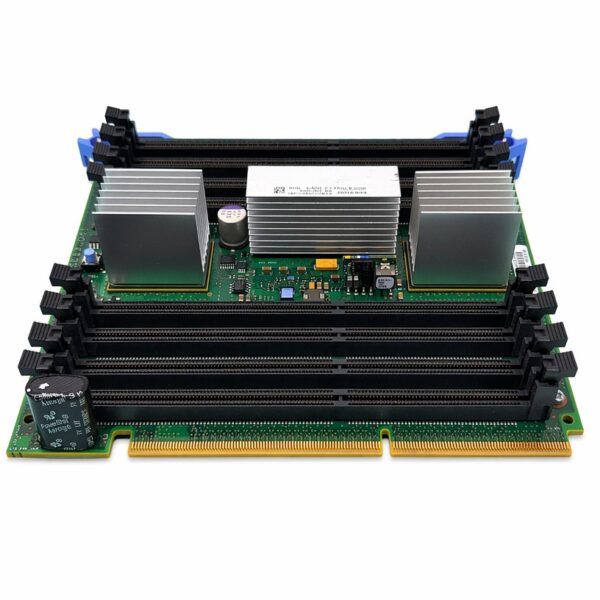

The IBM 00E2097 is a genuine enterprise-level 8-slot memory expansion riser card designed specifically for high-density IBM Power7 and Power7+ scale-out and enterprise servers. It acts as a structural and electronic bridge between the main system processor board and the server’s system memory.

Equipped with 8 dedicated Dual In-line Memory Module (DIMM) slots, this riser card allows system administrators to scale up memory capacity per processor socket using high-reliability DDR3 ECC Registered memory. By utilizing these memory risers, Power7 servers can achieve the high-bandwidth, multi-channel memory configurations required for intensive enterprise workloads, virtualization (PowerVM), and heavy database applications.

Key Features

• 8-Slot High-Density Layout: Accommodates up to 8 DDR3 memory modules per riser, allowing for massive memory density within a compact chassis envelope.

• Optimized Signal Integrity: Multi-layer PCB engineering guarantees precise impedance control and stable data lines, maintaining low-latency communication between memory registers and Power7 processors.

• ECC & Reliability Support: Built to support Error-Correcting Code (ECC) mechanisms, preventing single-bit errors and ensuring continuous server uptime in 24/7 data center environments.

• Rigid Retention Latches: Equipped with industrial-grade mechanical ejector latches to ensure secure seating of memory modules and resist vibration during heavy chassis cooling cycles.

Technical Specifications

System Compatibility

This memory riser card is designed for various IBM Power Systems and PureFlex compute nodes running Power7/Power7+ architectures, including but not limited to:

• IBM Power Systems: P740 (Machine Type 8205), P750 (Machine Type 8233)

• IBM PureFlex Systems: Power Compute Nodes (e.g., p260, p460 systems where applicable)

• Supported Machine Types: 8205-E6B, 8205-E6C, 8205-E6D, 8233-E8B configurations
