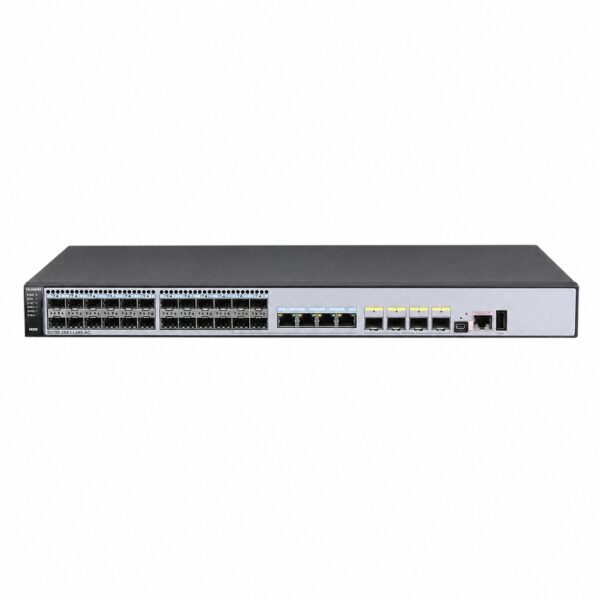

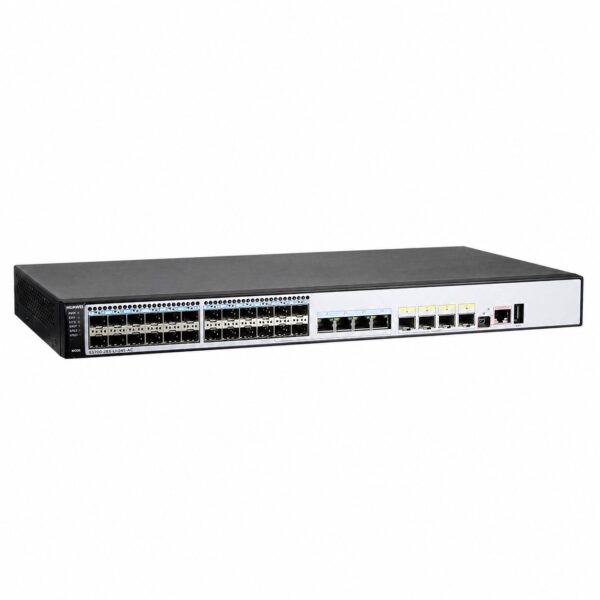

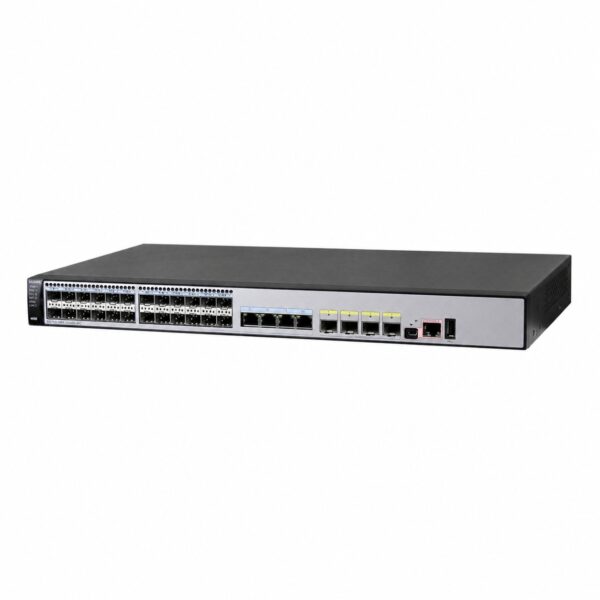

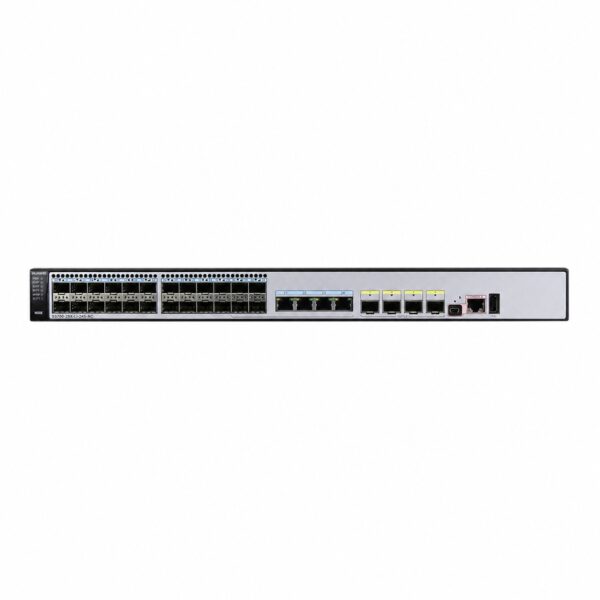

Huawei S5700-28X-LI-24S-AC Switch – Product Information

Name: Huawei S5700-28X-LI-24S-AC Switch - SunSpike
SKU: S5700-28X-LI-24S-AC

Product Overview

The Huawei S5700-28X-LI-24S-AC is a fully managed, fixed-configuration Gigabit Ethernet switch designed for enterprise campus networks requiring high-density gigabit access and flexible 10G uplink connectivity. Part of the S5700 LI series, this switch delivers scalable gigabit access for terminal devices while also serving as a resilient aggregation solution in large-scale data center environments.

The switch features a non-modular port structure with 24 x 100/1000BASE-X SFP ports for gigabit optical connectivity, 4 x combo ports (10/100/1000BASE-T + 100/1000BASE-X) providing flexible copper or fiber deployment options, and 4 x 10GE SFP+ uplink ports for high-speed backbone connections. The combo ports allow each port to be configured as either an electrical or optical interface, with automatic mode selection based on the active connection.

With a switching capacity of 256 Gbit/s and a forwarding performance of 96 Mpps, the S5700-28X-LI-24S-AC is capable of handling demanding network traffic loads. The switch supports 16K MAC address entries and 4K VLANs, providing ample scalability for medium to large enterprise deployments.

The switch is powered by an internal AC power supply with a rated voltage range of 100 V to 240 V AC, 50/60 Hz. It features two built-in fans with left-to-right airflow for forced air cooling, and supports RPS (Redundant Power Supply) for enhanced power reliability. The compact 1RU form factor (43.6 mm × 442.0 mm × 220.0 mm) and lightweight design (3.5 kg) make it suitable for standard 19-inch rack mounting.

Technical Specifications

Category	Item	Specification
General	Product Type	Managed switch, enterprise-class
	Application Layer	Layer 2
	Switching Capacity	256 Gbit/s
	Forwarding Performance	96 Mpps
	Switching Mode	Store-and-forward
	MAC Address Table	16K
	VLAN Features	4K VLANs
	Stacking	Supported via 4 x 10GE SFP+ uplink ports
Ports	Total Ports	28
	Port Structure	Non-modular
	100/1000BASE-X Ports	20 x SFP ports
	Combo Ports	4 x (10/100/1000BASE-T + 100/1000BASE-X)
	10GE SFP+ Ports	4 x uplink ports
	Console Port	1 x RJ45 console port
	Mini USB Port	1 x mini USB console port
	USB Port	1 x USB port (supports USB 1.1 flash drives up to 128 GB)
Power	Power Supply Type	Internal AC power supply
	Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
	Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
	Maximum Power Consumption	60 W (100% throughput, full fan speed)
	Typical Power Consumption	49.7 W (30% traffic load, EEE enabled)
	RPS Support	Supported
	PoE Support	Not supported
Physical	Dimensions (H × W × D)	43.6 mm × 442.0 mm × 220.0 mm (1.72 in × 17.4 in × 8.7 in)
	Weight (with packaging)	3.5 kg (7.72 lb)
Environmental	Operating Temperature	0°C to 45°C (32°F to 113°F) at 0–1800 m altitude
	Storage Temperature	–40°C to +70°C (–40°F to +158°F)
	Relative Humidity	5% to 95%, noncondensing
	Operating Altitude	0–5000 m (0–16404 ft)
	Noise Level	< 49.6 dB(A) at normal temperature (27°C, sound power)
Reliability	Memory (RAM)	256 MB
	Flash Memory	200 MB
	MTBF	89.91 years
	MTTR	2 hours
	Availability	> 0.99999
Protection	Service Port Surge Protection	Common mode: ±6 kV
	Power Supply Surge Protection	±6 kV differential mode, ±6 kV common mode
Cooling	Cooling Method	2 x built-in fans, forced air cooling
	Airflow Direction	Left-to-right
Certifications	Standards	EMC certification, Safety certification, Manufacturing certification
Ordering	Part Number	02355271
