Huawei S5700-28P-LI-24S-BAT-AC – Product Documentation

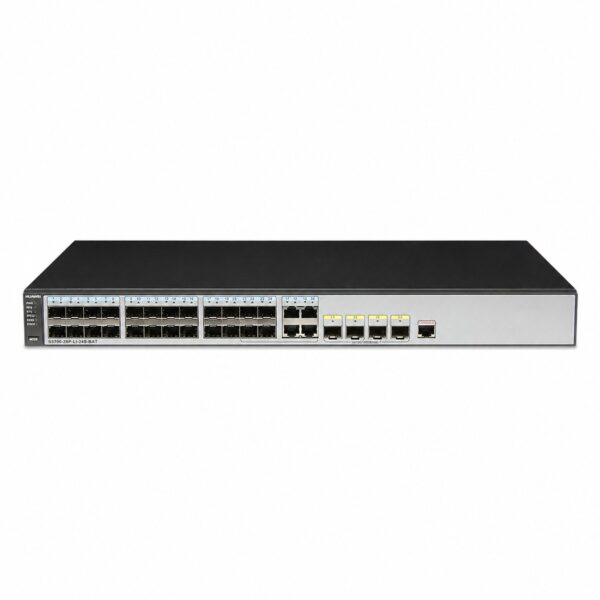

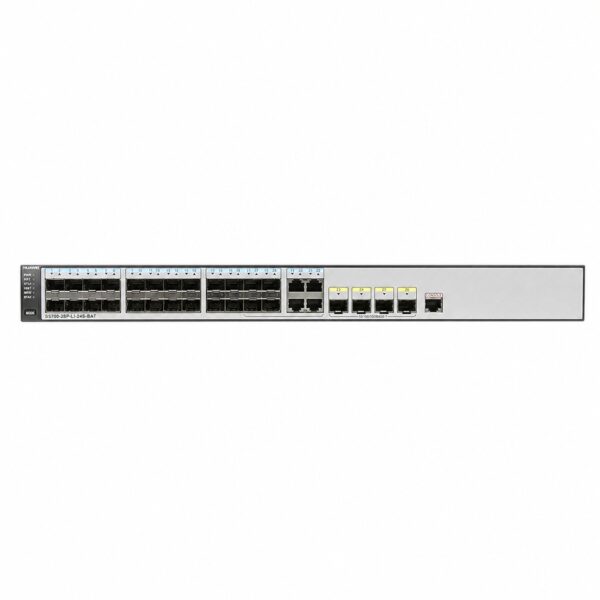

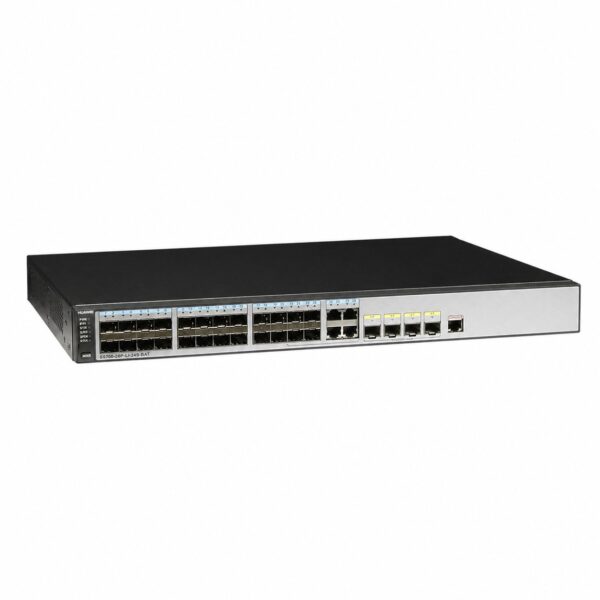

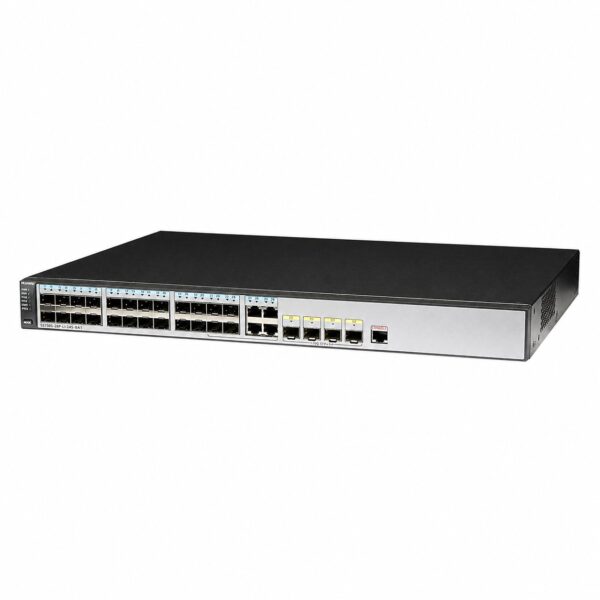

Name: Huawei S5700-28P-LI-24S-BAT-AC Switch - SunSpike
SKU: S5700-28P-LI-24S-BAT-AC

Product Overview

The Huawei S5700-28P-LI-24S-BAT-AC is a next-generation, energy‑saving managed Gigabit Ethernet switch designed for high‑bandwidth access and Ethernet multi‑service aggregation in enterprise campus networks. It belongs to the S5700‑LI series, which is built on Huawei’s Versatile Routing Platform (VRP) and incorporates Advanced Hibernation Management (AHM), intelligent stack capabilities, flexible Ethernet networking, and diversified security control.

What distinguishes this model is its integrated battery backup capability. As one of the industry’s first switch series to support onboard batteries, the S5700‑LI‑BAT series provides visualized battery status management and ensures uninterrupted service in environments prone to mains power failures at the access layer. The switch features a built‑in AC power supply unit and a dedicated battery slot that can accommodate a rechargeable lithium battery (BAT‑4AHA or BAT‑8AHA). In the event of a mains power outage, the battery automatically supplies power to maintain continuous operations; when AC power is restored, the battery recharges automatically.

The switch offers 28 Gigabit SFP ports for fiber connectivity, four of which are combo ports that can be used as either 10/100/1000BASE‑T electrical ports or 100/1000BASE‑X optical ports. With a switching capacity of 256 Gbit/s and a forwarding performance of 42 Mpps, it delivers robust Layer 2 and Layer 3 switching capabilities suitable for demanding enterprise access and aggregation scenarios.

Specifications

Category	Specification
Product Code	S5700‑28P‑LI‑24S‑BAT‑AC
Product Type	Managed Layer 3 Gigabit Ethernet Switch
Fixed Ports	28 x GE SFP ports (100/1000BASE‑X)
Combo Ports	4 x combo ports (10/100/1000BASE‑T + 100/1000BASE‑X)
Console Port	1 x console port
Battery Slot	1 x battery slot for rechargeable lithium battery (BAT‑4AHA / BAT‑8AHA)
Switching Capacity	256 Gbit/s
Forwarding Performance	42 Mpps
MAC Address Table	16K entries
VLANs	4K VLANs supported
RAM	256 MB
Flash Memory	200 MB
Stacking	Not supported
Power Supply	Built‑in AC power supply (100 V AC to 240 V AC, 50/60 Hz)
Redundant Power	150 W AC power module or battery
Maximum Power Consumption	< 31.4 W
Heat Dissipation	Built‑in fans for forced air cooling
Dimensions (W x D x H)	442 mm x 310 mm x 43.6 mm (17.4 in x 12.2 in x 1.72 in)
Network Standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
VLAN Features	Guest VLAN, voice VLAN, GVRP, MUX VLAN, VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
Reliability	RRPP, Smart Link, SEP, ERPS (G.8032), STP/RSTP/MSTP, BPDU protection, root protection, loop protection, BPDU Tunnel, Ethernet OAM (IEEE 802.3ah and 802.1ag), DLDP, LACP
IP Routing	Static routing, RIPv1/v2, RIPng
IPv6 Features	Neighbor Discovery (ND), Path MTU (PMTU), IPv6 ping/tracert/Telnet, ACLs based on source/destination IPv6 address, Layer 4 ports, or protocol type, MLD v1/v2 snooping
Multicast	IGMP v1/v2/v3 snooping, IGMP fast leave, multicast forwarding in VLAN, multicast replication between VLANs, multicast load balancing, controllable multicast
QoS/ACL	Rate limiting on ingress and egress ports, packet redirection, traffic policing, dual‑rate three‑color CAR, 8 queues per port, WBR, DRR, SP, WRR+SP, DRR+SP queue scheduling, 802.1p and DSCP priority remarking
Port Mirroring	Supported for network monitoring and troubleshooting
Energy Saving	Energy Efficient Ethernet (EEE), port power detection, dynamic CPU frequency adjustment, device sleep mode, idle and hibernation modes
